Description
Lug Size: 5/16″ Both Ends

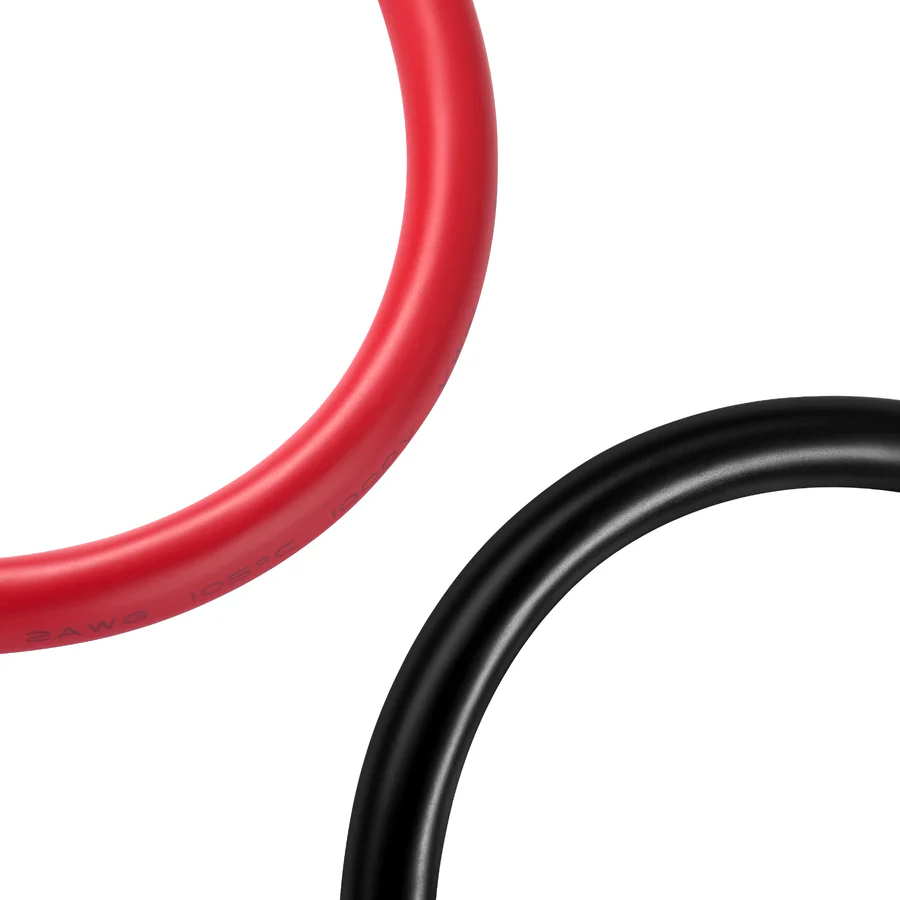

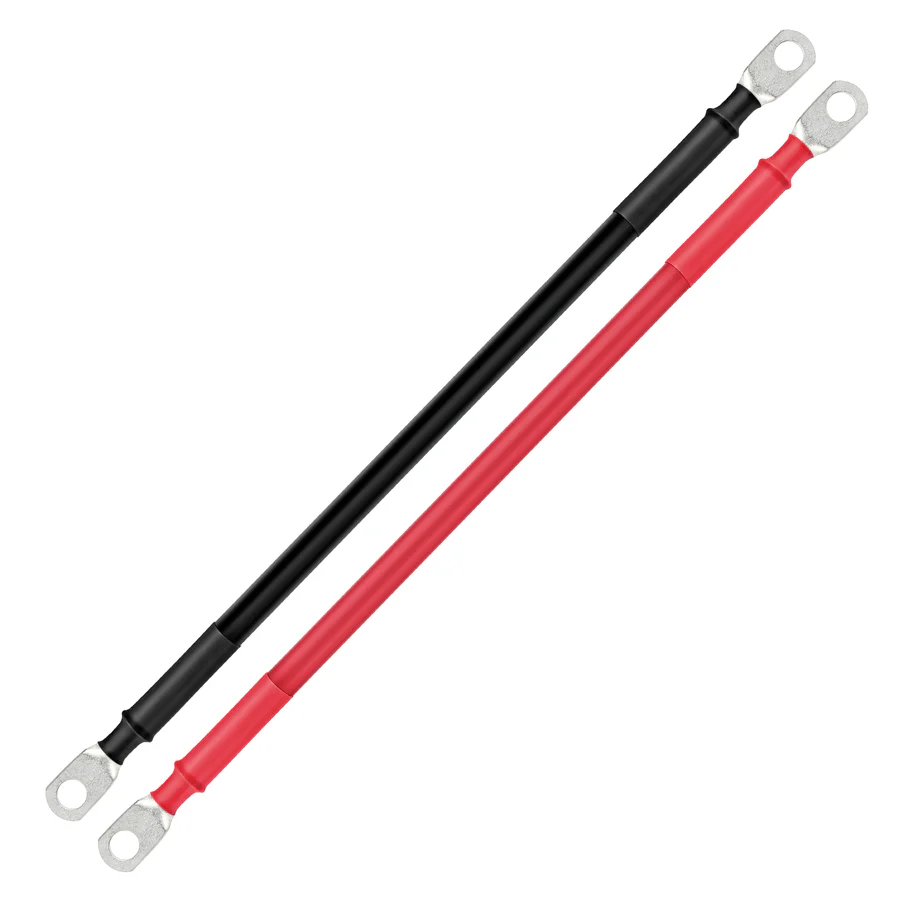

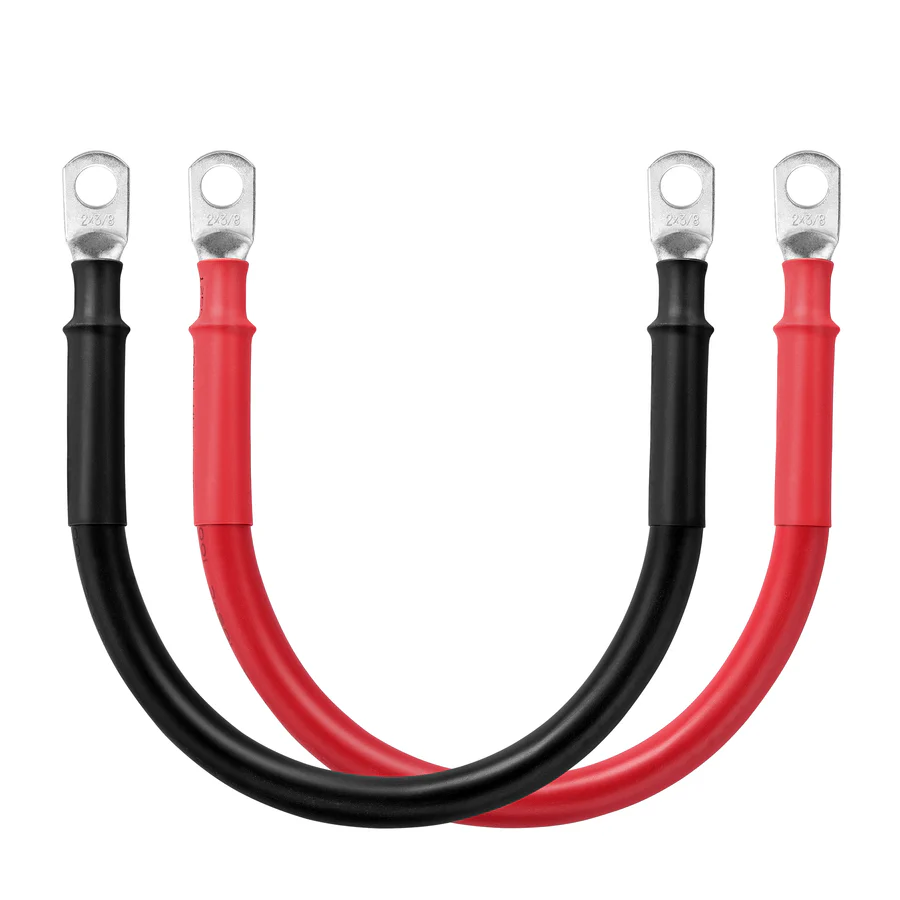

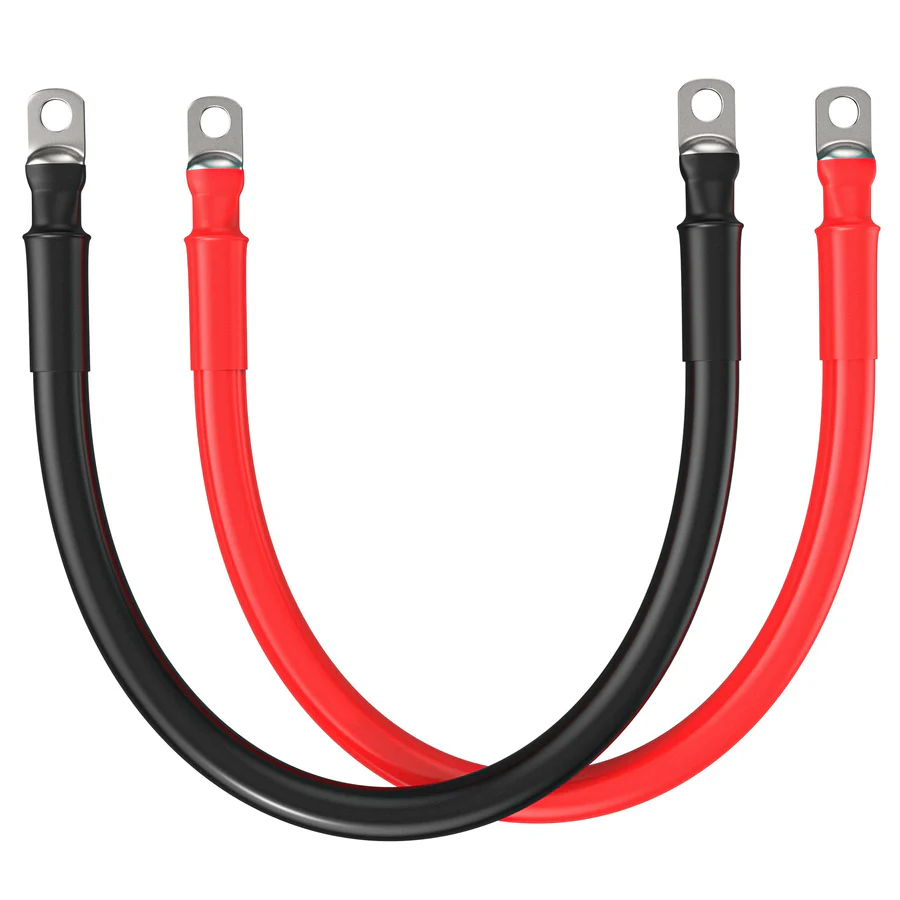

2 AWG battery inverter cables – Red & Black Set | UL Certified
Durable 2 AWG pure copper battery inverter cables—designed for high-amperage DC applications. This red and black set includes pre-crimped tinned copper lugs and heat shrink tubing, making installation quick, safe, and reliable. Ideal for solar, RV, marine, automotive, and off-grid setups.
🔧 Key Features
-
2 AWG battery inverter cables pure copper wire for maximum conductivity
-
Red & black color-coded cable pair
-

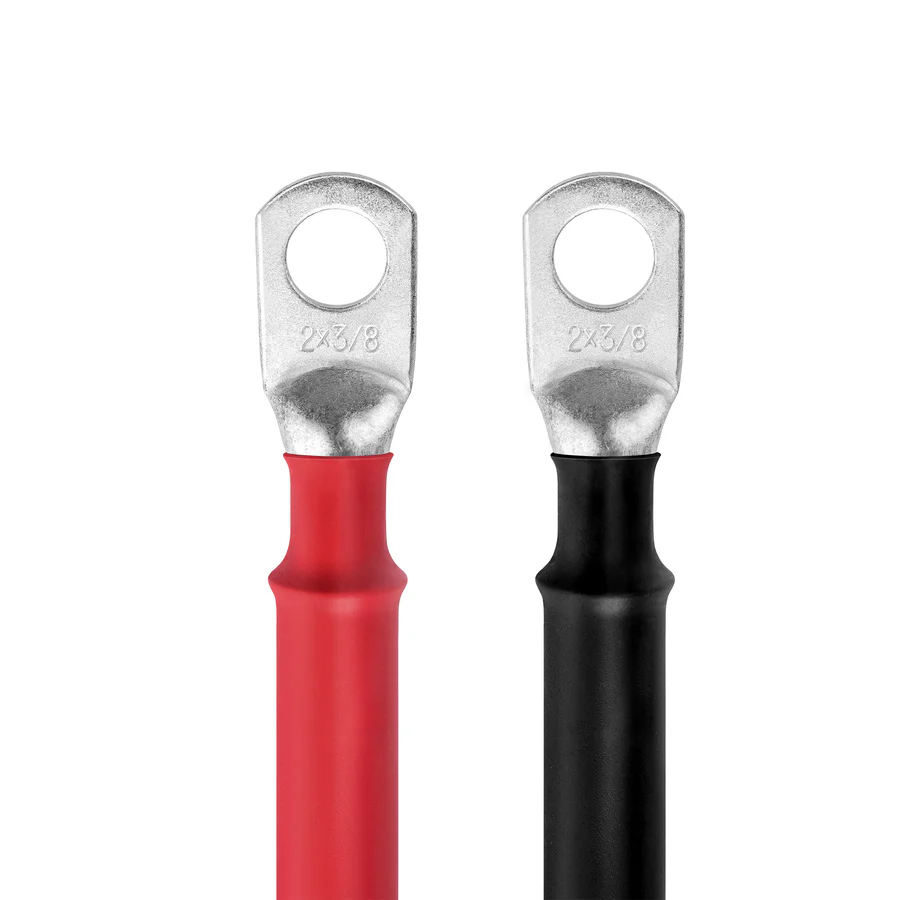

Tinned copper lugs for corrosion resistance
-
PVC insulation and heat-shrink terminals for added durability
-
UL & CSA certified, ROHS compliant
-
Rated for up to 600V
-
Operating temp: -50°C to +105°C
-
Available lengths: 1 FT to 10 FT
-
Lifetime Crimp Warranty
⚡ Common Applications
-
Solar power systems
-
Inverter and battery connections
-
RVs, campers, and travel trailers
-
Boats and marine electrical systems
-
Car audio and amplifier installs
-
Golf carts and electric vehicles
-
DC grounding and off-grid energy systems
📐 Technical Specifications
-
Cable Gauge: 2 AWG (American Wire Gauge)
-
Conductor: 100% Pure Copper
-
Insulation: PVC (Polyvinyl Chloride)
-
Terminal Type: Pre-installed tinned copper lugs
-
Voltage Rating: 600 Volts
-
Temperature Range: -50°C to +105°C (cable), -55°C to +135°C (heat shrink)
-
Shrink Ratio: 3:1 at +90°C
-
Certifications: UL Listed, CSA Approved, ROHS Compliant
-
Warranty: Lifetime Crimp Warranty
🛠️ Built for Performance
Each cable is professionally cut, crimped, and sealed to deliver long-term performance in demanding environments. Whether you’re powering an inverter or connecting batteries in a custom setup, these 2 gauge flexible battery cables provide a secure, high-capacity solution for all your DC power needs.
These heavy-duty 2 AWG battery inverter cables are PVC insulated, professionally cut, crimped, and heat-shrunk for superior safety and durability. Whether you’re upgrading a power system or installing a new one, this cable set offers the flexibility and strength needed for high-performance applications.
Wire Selection Chart
| Current (A) | |||||||
| 0-5 | 16 AWG | 16 AWG | 16 AWG | 16 AWG | 14 AWG | 12 AWG | 12 AWG |
| 5-10 | 16 AWG | 16 AWG | 16 AWG | 12 AWG | 10 AWG | 10 AWG | 10 AWG |
| 10-15 | 14 AWG | 14 AWG | 12 AWG | 10 AWG | 10 AWG | 8 AWG | 8 AWG |
| 15-20 | 14 AWG | 12 AWG | 12 AWG | 10 AWG | 8 AWG | 6 AWG | 6 AWG |
| 20-25 | 12 AWG | 10 AWG | 10 AWG | 8 AWG | 6 AWG | 6 AWG | 6 AWG |
| 25-30 | 10 AWG | 10 AWG | 10 AWG | 8 AWG | 6 AWG | 6 AWG | 4 AWG |
| 30-40 | 8 AWG | 8 AWG | 8 AWG | 6 AWG | 6 AWG | 4 AWG | 4 AWG |
| 40-50 | 8 AWG | 8 AWG | 8 AWG | 6 AWG | 4 AWG | 4 AWG | 2 AWG |
| 50-60 | 6 AWG | 6 AWG | 6 AWG | 4 AWG | 4 AWG | 2 AWG | 2 AWG |
| 60-70 | 6 AWG | 6 AWG | 4 AWG | 4 AWG | 2 AWG | 2 AWG | 1/0 AWG |
| 70-80 | 4 AWG | 4 AWG | 4 AWG | 4 AWG | 2 AWG | 2 AWG | 1/0 AWG |
| 80-90 | 4 AWG | 4 AWG | 4 AWG | 2 AWG | 2 AWG | 1/0 AWG | 1/0 AWG |
| 90-100 | 2 AWG | 2 AWG | 2 AWG | 2 AWG | 2 AWG | 1/0 AWG | 1/0 AWG |
| 100-120 | 2 AWG | 2 AWG | 2 AWG | 2 AWG | 1/0 AWG | 1/0 AWG | 2/0 AWG |
| 120-150 | 1/0 AWG | 1/0 AWG | 1/0 AWG | 1/0 AWG | 1/0 AWG | 2/0 AWG | 4/0 AWG |
| 150-200 | 2/0 AWG | 2/0 AWG | 2/0 AWG | 2/0 AWG | 2/0 AWG | 4/0 AWG | 4/0 AWG |
| 0-4 | 4-7 | 7-10 | 10-15 | 15-20 | 20-25 | 25-30 | |
| Length in Feet | |||||||
