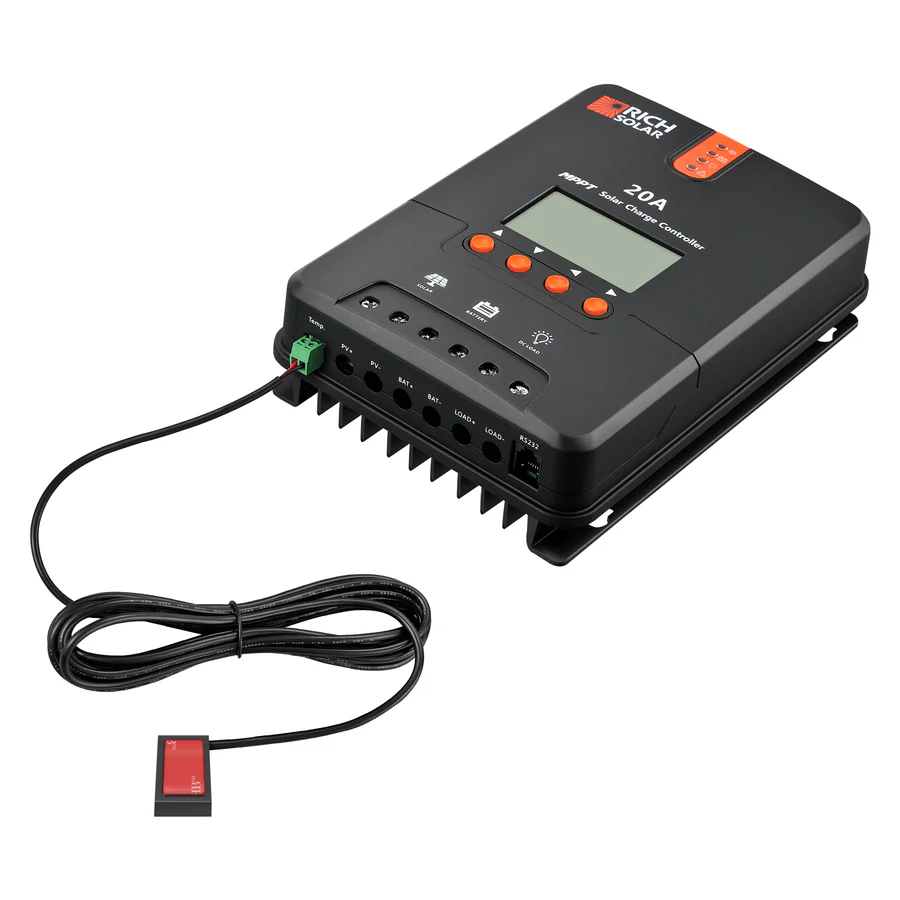

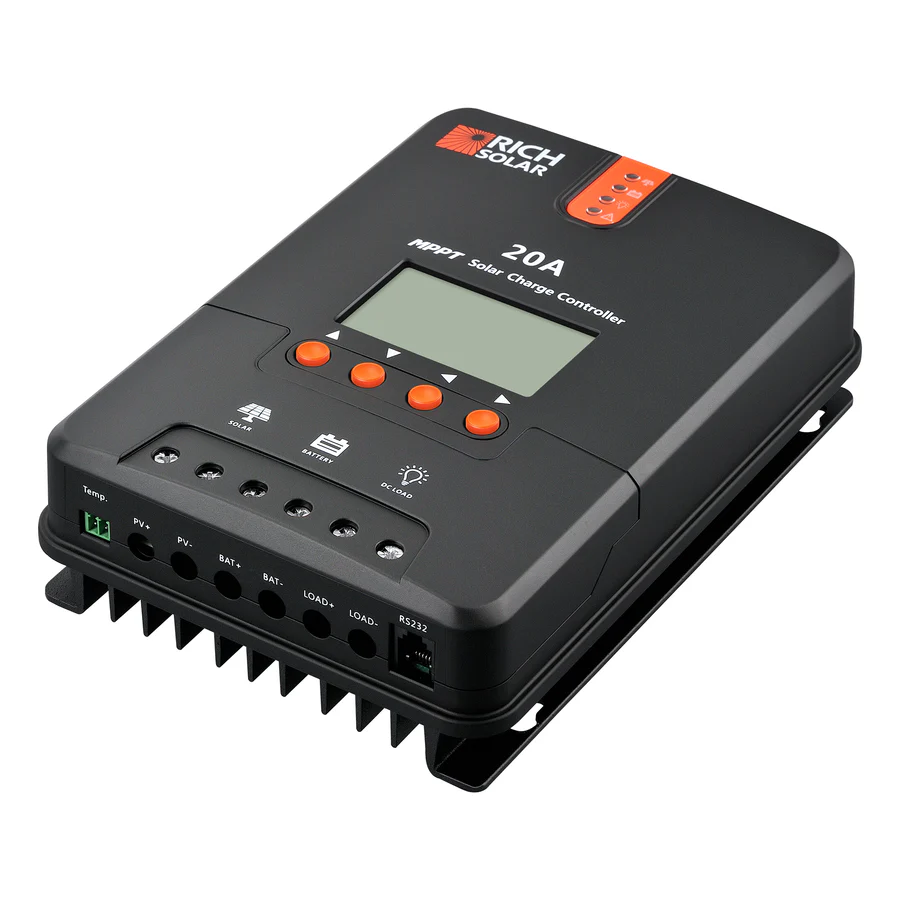

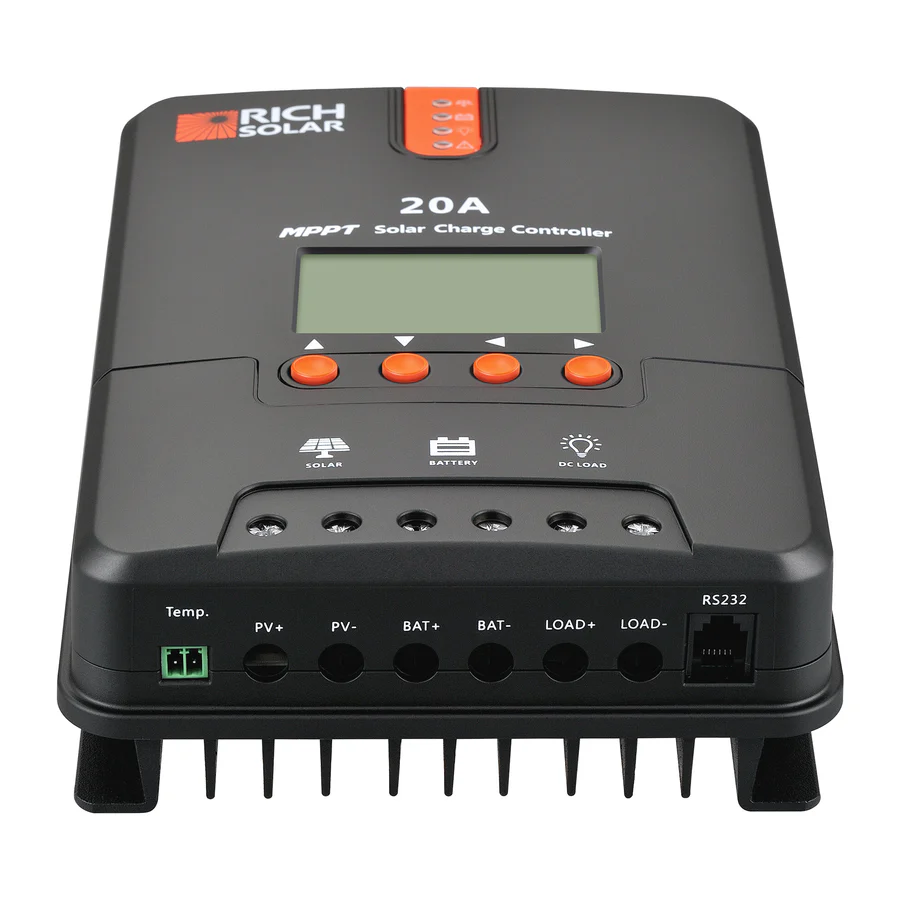

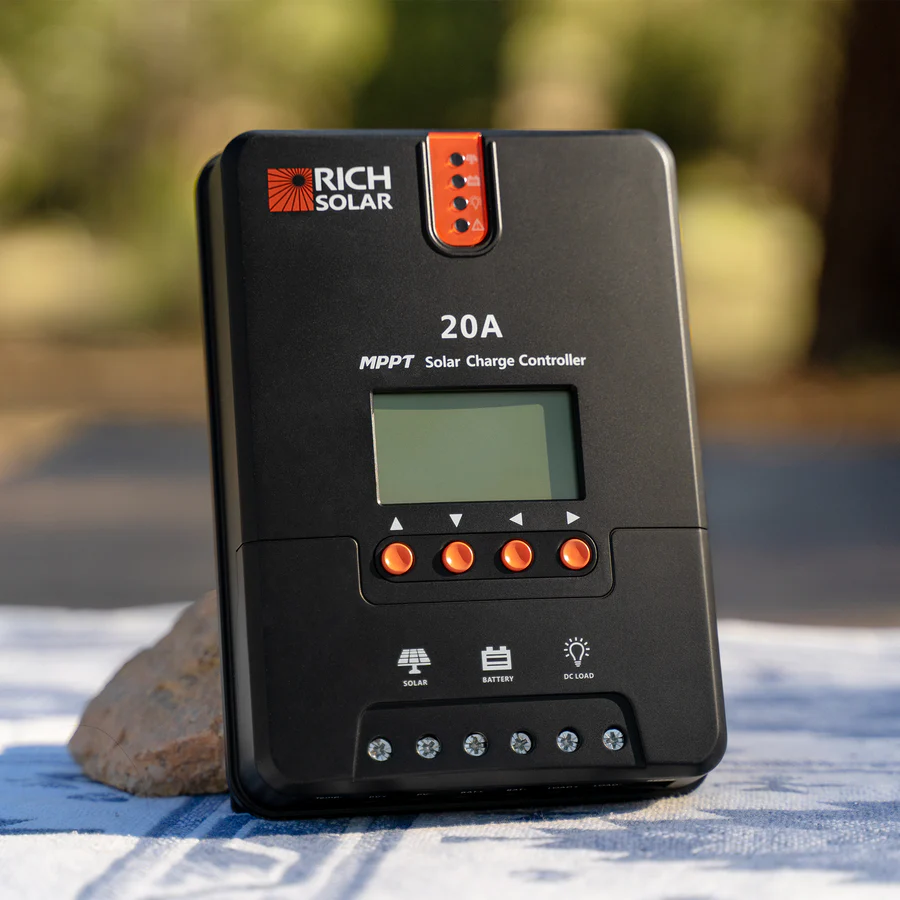

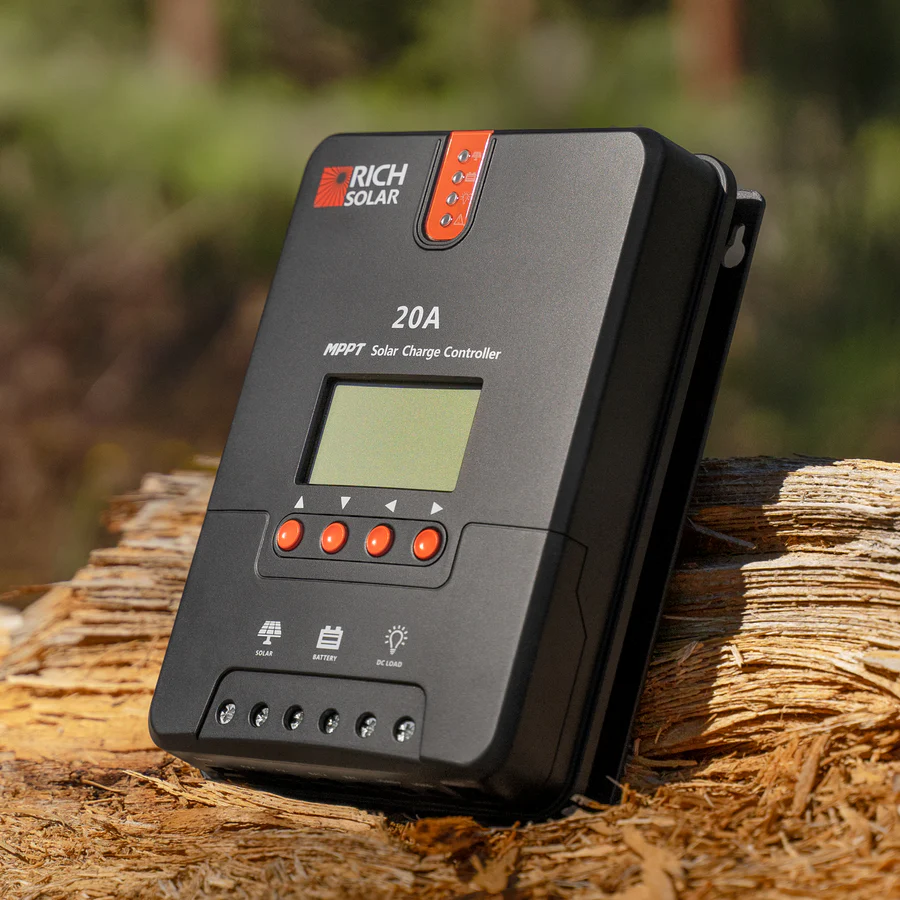

Description
FEATURES
- Automatically detects 12V or 24V DC system voltages
- Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium
- Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%
- Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current

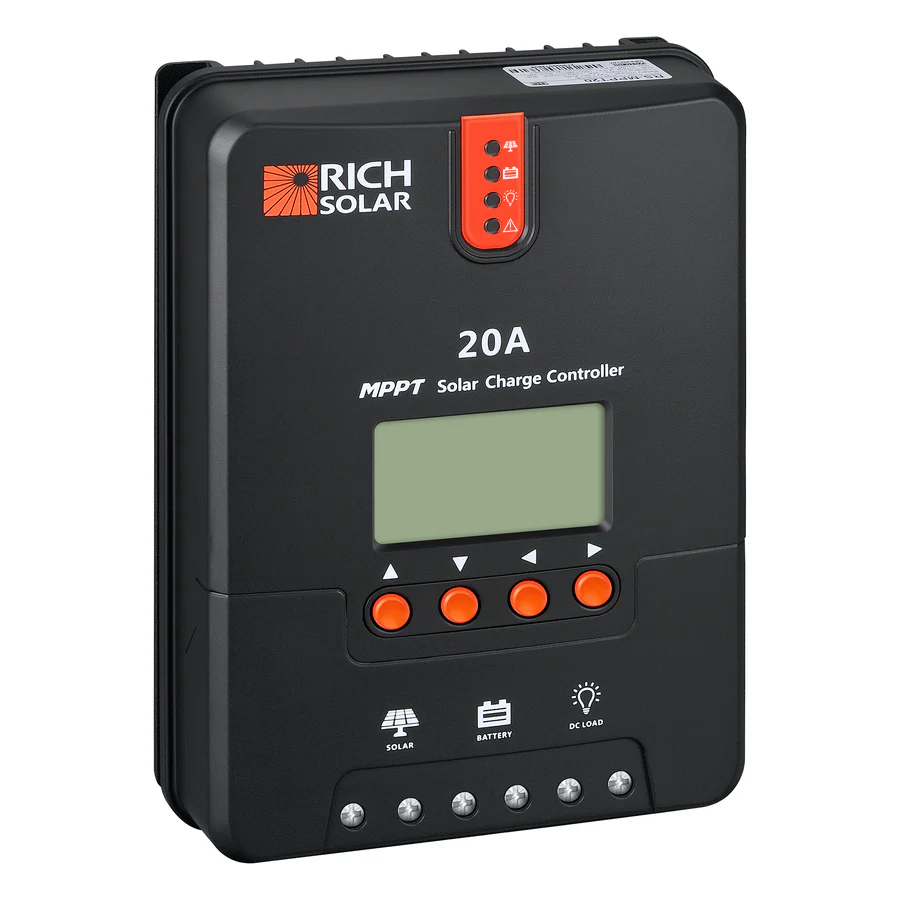

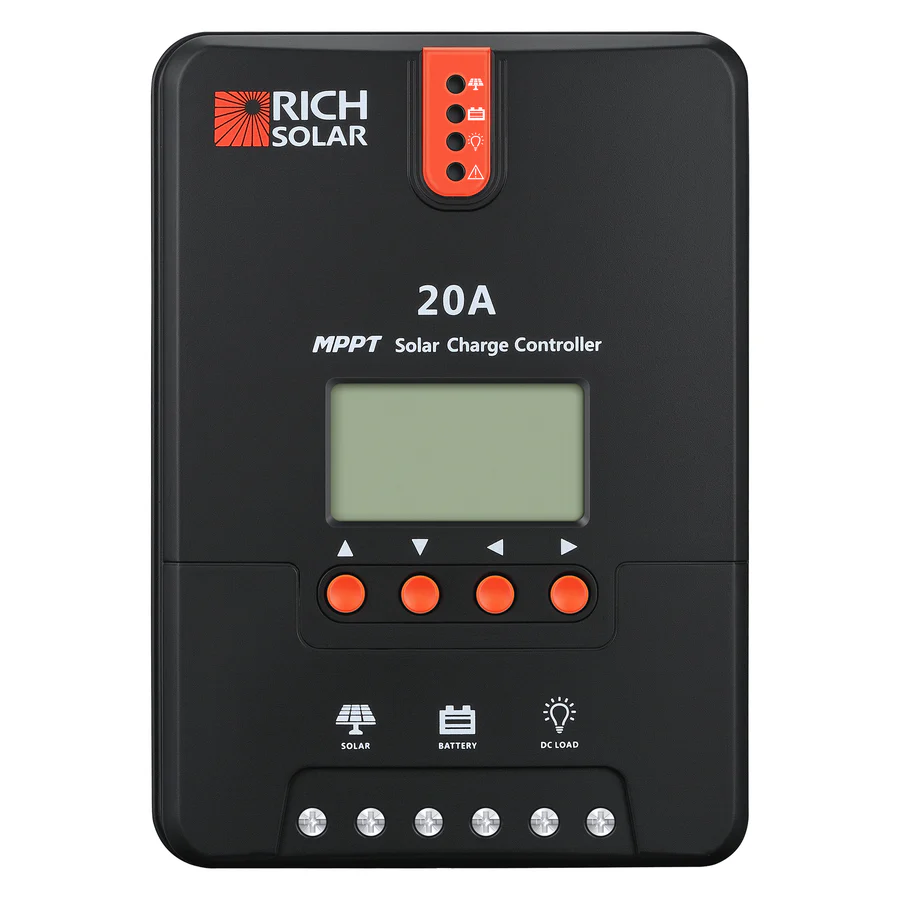

- LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes
- Features diverse load control; also capable of charging over-discharged lithium batteries

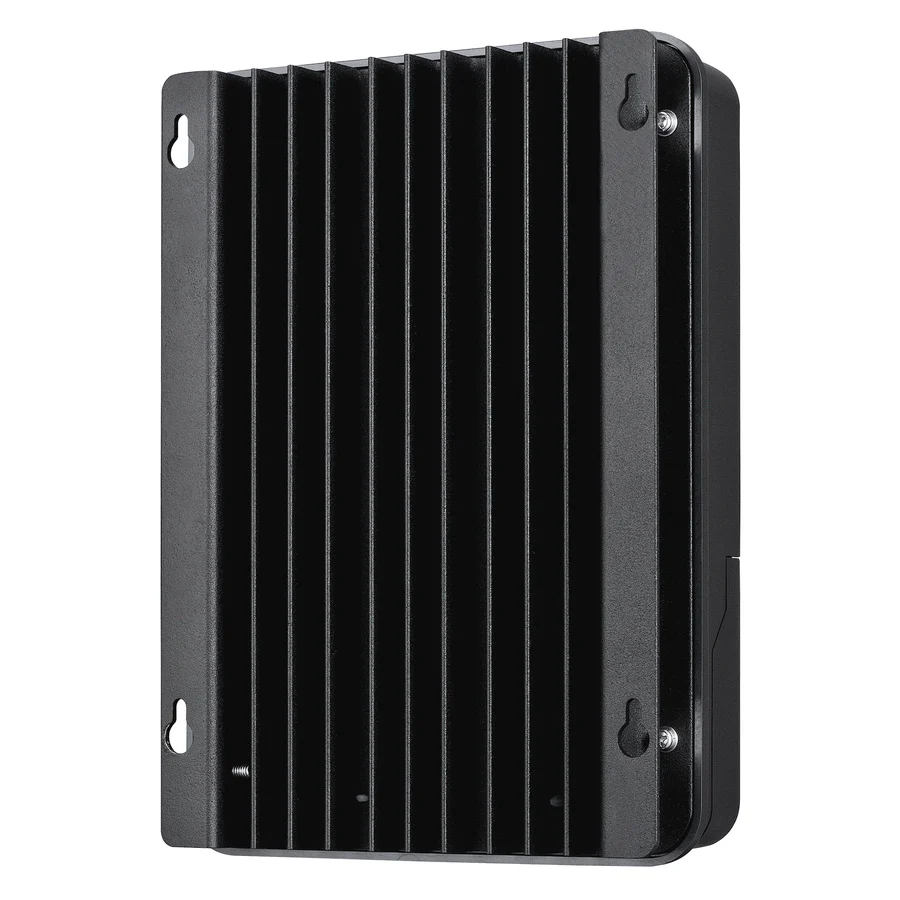

- Die-cast aluminum design allows for efficient heat dissipation

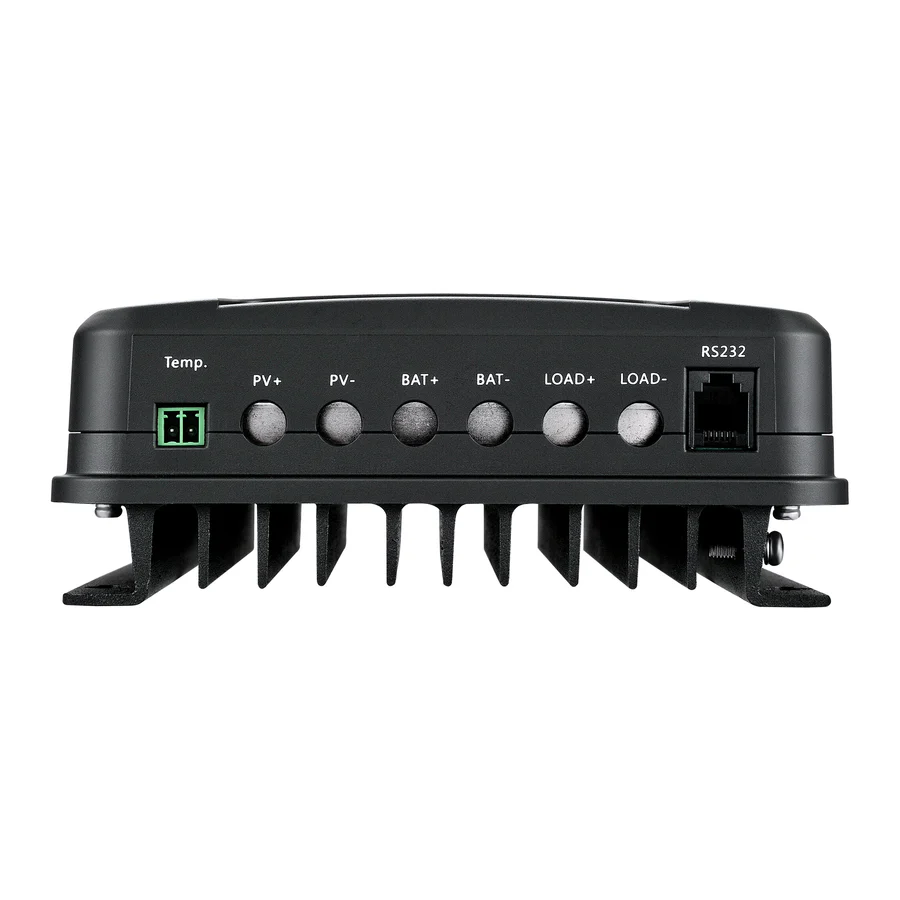

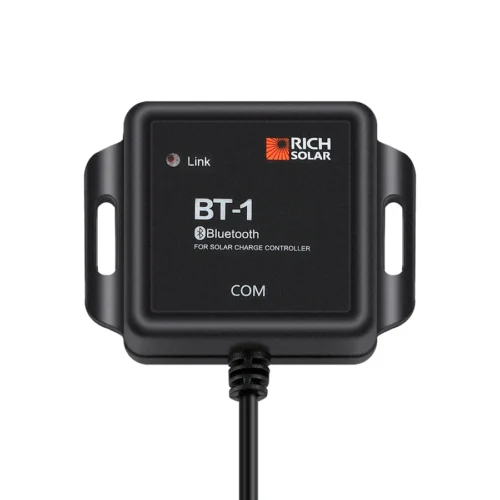

- RS232 port to communicate with BT-1 Bluetooth module.
Tech Specs
SPECIFICATIONS
| ATTRIBUTE | VALUE |
| Nominal System Voltage: | 12V/24V Auto Recognition |
| Rated Battery Current: | 20A |
| Rated Load Current: | 20A |
| Max. PV Input Short Current: | 25A |
| Max. Battery Voltage: | 32V |
| Max Solar Input Voltage: | 100 VDC |
| Mounting Oval: | 0.30 x 0.18 in |
| Net Weight: | 3.08 lb |
| Discharge Circuit Voltage Drop: | = 0.15V |
| Overall Dimension: | 8.27 x 5.94 x 2.34 in |
Rich Solar offers a warranty on all its products as detailed below. For any clarifications, feel free to contact Canbat customer support or reach out directly to Rich Solar.
Solar Panels
Rigid Solar Panels
25-Year Power Output Warranty
10-Year Workmanship Warranty
Portable Solar Panels
25-Year Power Output Warranty
5-Year Workmanship Warranty
2-Year Warranty for Controller on Kits
Flexible Panels
1-Year Warranty
Inverters
Grid-Tie Inverters
10-Year Warranty
Pure Sine Wave Inverters
2-Year Warranty
Hybrid Inverters
3-Year Warranty
Controllers
MPPT Controllers
2-Year Warranty
PWM Controllers
1-Year Warranty
