Name: 30 Amp PWM Solar Charge Controller
Brand: Canbat
SKU: RS-PWM30K
Price: 39.00 CAD
Availability: InStock

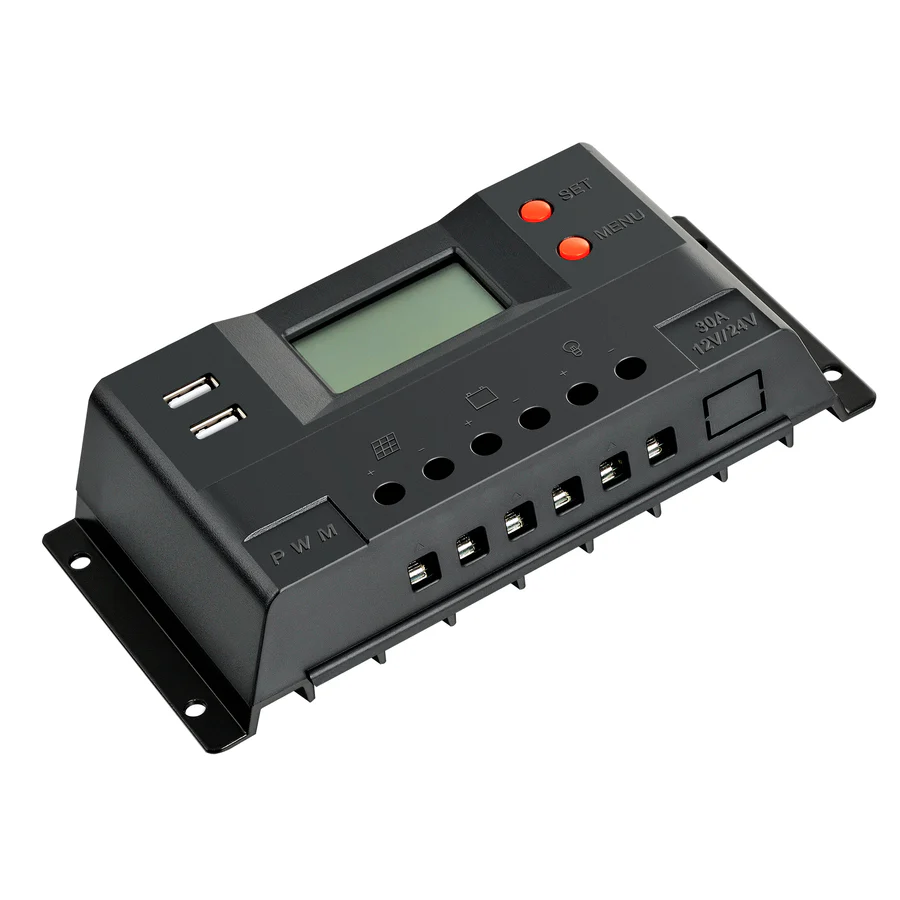

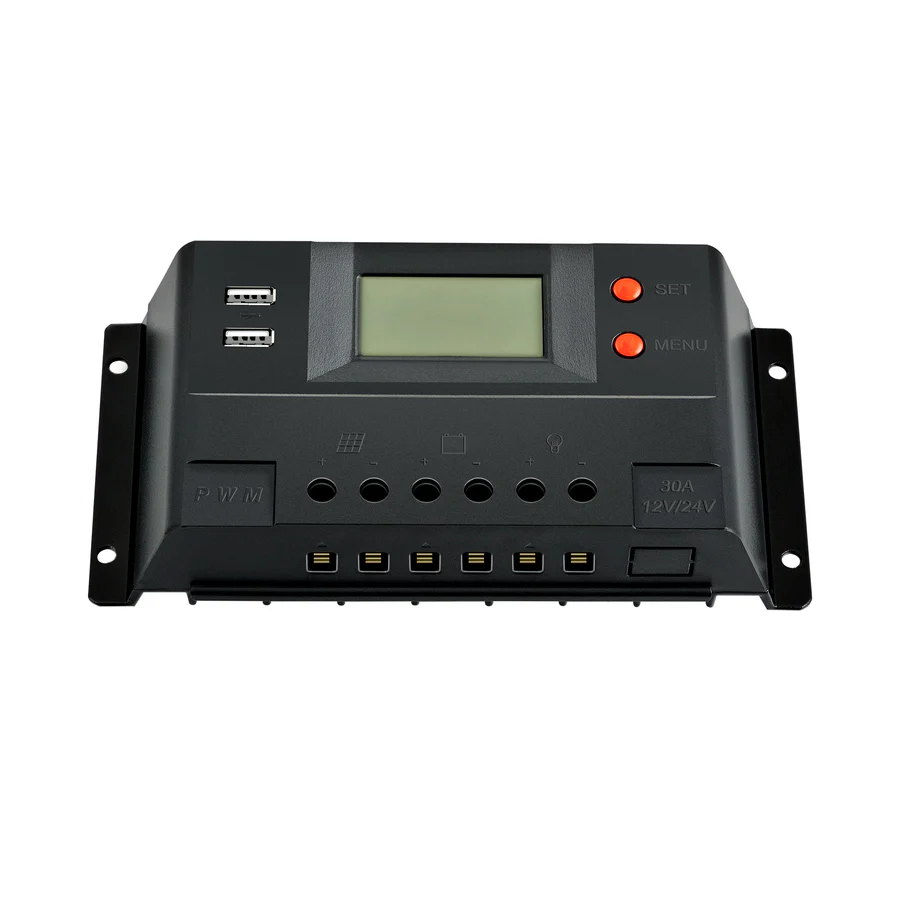

30 Amp PWM Solar Charge Controller

CAD $39.00

30A 12V/24V PWM Controller for RVs, Trailers, Campers, Vans, Boats, Off-Grid | Top Rated

In stock

Description

Specifications

PV voltage: ≤50V
Rated Current: 30A
System Voltage: 12V/24V Auto
HVD: 16.00V×1/×2/×3/×4(0.5V)
Rated discharging current: 30A
No-load loss: ≤13mA
Charge loop voltage drop: ≤0.24V
Discharge loop voltage drop: ≤ 0.1V
Charging mode: PWM 4-stage（bulk, absorption, float, equalized）
Voltage of float charging: 13.8(13V~15V)×1/×2
Absorption charging voltage: 14.4V(13V~15V) ×1/×2
Equalized charging voltage: 14.6V(13V~15.5V) ×1/×2
Duration of equalized charging: 2hs
LVD: 10.7V(10V~14V) ×1/×2
LVR: 12.6V(10V~14V) ×1/×2
Load working mode: Regular control mode, Light control with switch-off point at night and switch-on point before dawn, Light control mode
Light control voltage: 5V(1V~10V) ×1/×2
Battery type: GEL, SLD, FLD and USR (default)
USB: 5V 1A
Wiring: PCB terminal, ≤16mm2
Working temperature: -20 ~ +55 °C

Rich Solar offers a warranty on all its products as detailed below. For any clarifications, feel free to contact Canbat customer support or reach out directly to Rich Solar.

Solar Panels

Rigid Solar Panels

25-Year Power Output Warranty

10-Year Workmanship Warranty

Portable Solar Panels

25-Year Power Output Warranty

5-Year Workmanship Warranty

2-Year Warranty for Controller on Kits

Flexible Panels

1-Year Warranty

Inverters

Grid-Tie Inverters

10-Year Warranty

Pure Sine Wave Inverters

2-Year Warranty

Hybrid Inverters

3-Year Warranty

Controllers

MPPT Controllers

2-Year Warranty

PWM Controllers

1-Year Warranty
