Features
Specifications:
Model: RS-H2424
Max.PV Array Power: 2400W
Maximum PV Array Open Circuit Voltage: 145 VDC
MPPT Range @ Operating Voltage: 30 VDC ~ 115 VDC
Number of MPP Tracker: 1
GRID OUTPUT (AC)
Nominal Output Voltage: 101/110/120 VAC
Rated Output Power: 2400W
Output Voltage Range:
89~111 VAC @ 101 VAC output
97~121 VAC @ 110 VAC output
106~132 VAC @ 120 VAC output
Output Frequency Range:
47.5~51.5Hz @ 50Hz
57.5~61.5Hz @ 60Hz
Nominal Output Current:
29.7A @ 101Vac
27.2A @ 110Vac
25.0A @ 120Vac
Power Factor: >0.99
EFFICIENCY
Maximum Conversion Efficiency (DC/AC): 85%
OFF-GRID, HYBRID OPERATION
AC Start-up Voltage / Auto Restart Voltage: 60 – 70 VAC / 90 VAC
Acceptable Input Voltage Range: 65-140 VAC or 85-140 VAC
Maximum AC Input Current: 40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage: 101/110/120 VAC
Rated Output Power: 2400W / 3000VA
Output Waveform: Pure Sine Wave
Efficiency (DC to AC): 90%
BATTERY & CHARGER
Nominal DC Voltage: 24 VDC
Maximum Charging Current (from Grid): 60A
Maximum Charging Current (from PV): 80A
Maximum Charging Current: 140A
PHYSICAL
Dimension, D X W X H : 4.72 x 11.61 x 18.42 in
Net Weight : 24.25 lb
INTERFACE

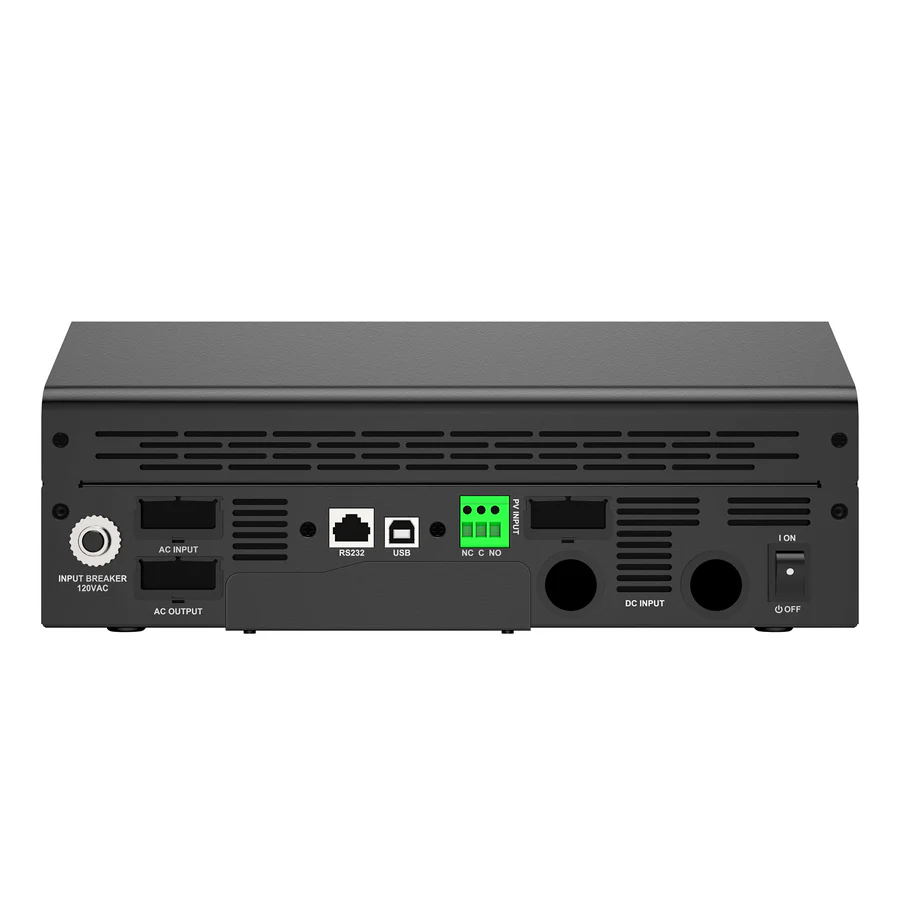

Communication: USB or RS-232/Dry contact
ENVIRONMENT
Humidity: 0 ~ 90% RH (No condensing)
Operating Temperature: 0 to 50°C
John A. –
JJe ne trouvais pas d’onduleur tout-en-un avec une puissance relativement faible et permettant un grand nombre d’ampères pour charger ma batterie. Grâce aux conseils des équipes de Canbat, me voilà servi. Je suis extrêmement satisfait de mon choix. MERCI CANBAT !
Alan J. –
This is a great 24V power inverter that is easy to install (even for beginners like myself). Having a built-in AC charger and an MPPT simplifies installation. I installed this unit with some 24V lithium batteries in my off-grid cabin. Ordered last Tuesday and was here Thursday afternoon. Quick shipping and friendly service. The only thing I don’t like about this inverter is that it doesn’t have the option to auto-start my Gentech generator to recharge the batteries once a certain voltage is reached.
