Lithium Battery Wall Mount – Secure Installation Kit for Canbat CLI100‑48LT

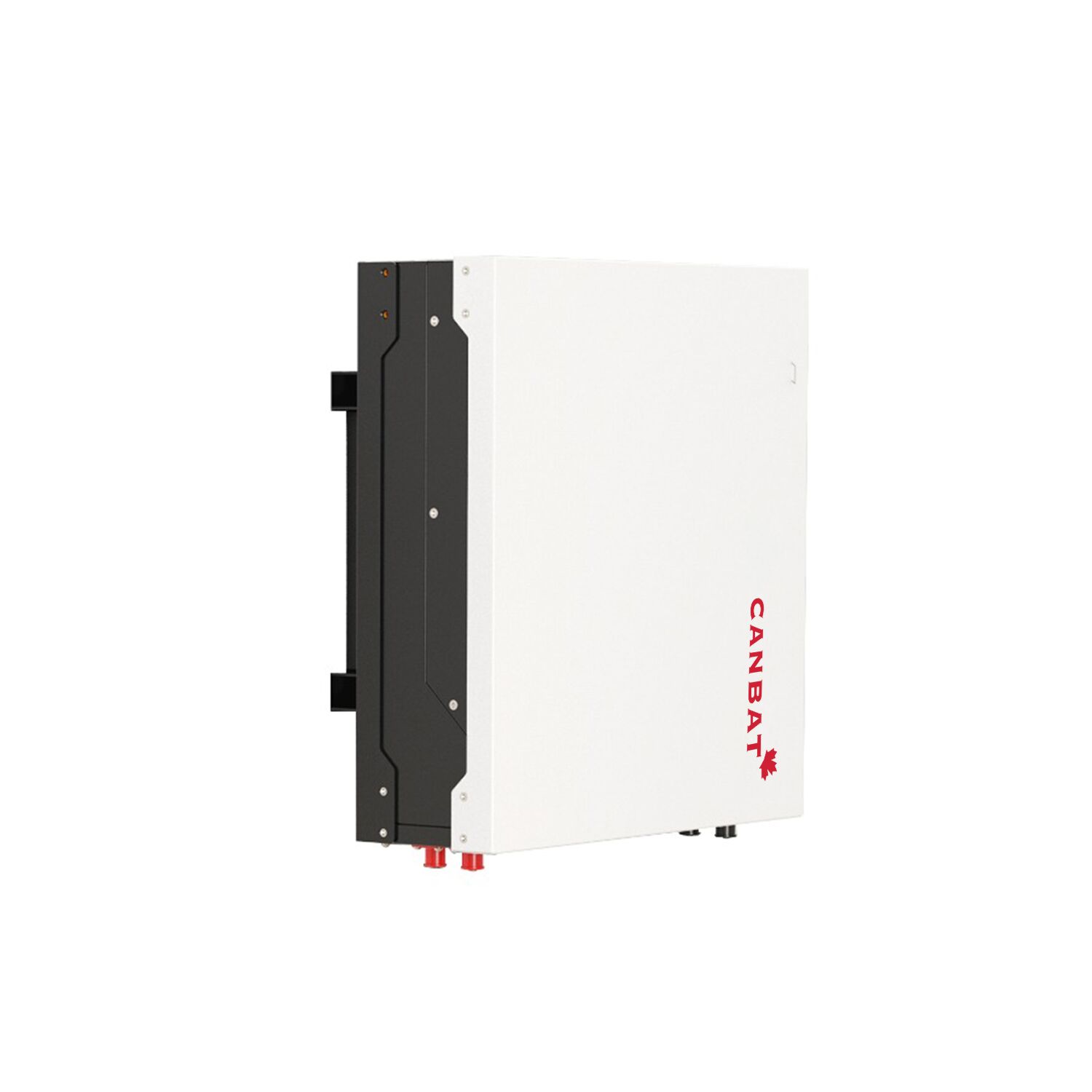

The Lithium Battery Wall Mount (SKU: CLI100‑48WM) is purpose-built for safely mounting the Canbat CLI100‑48LT 48V 100Ah lithium battery onto an indoor wall. Designed to maximize floor space and maintain a clean, professional appearance, this system ensures safe, stable installation for residential, commercial, and industrial battery storage applications.
Constructed from powder-coated steel, the mounting bracket is engineered for structural reliability while preserving airflow and accessibility to the battery’s terminals and communication ports. This wall mount kit also includes inter-battery cables for parallel installation of multiple CLI100‑48LT units.
Wall Mounted
Hang on the wall without taking up floor space
✅ Kit Includes
-
A: External hexagon slotted combination screw (×6)
-
B: Cross recessed recessed combination screw (×2)
-
C: Battery-to-battery parallel positive cable (×1)
-
D: Battery-to-battery parallel negative cable (×1)
-
E: Battery-to-battery grounding cable (×1)
-
F: Cross recessed small countersunk head screws (×16)
-
G: Expansion bolt M10×60 (×4)
-
H: Decorative panel (×1)
-
I: Wall-mounted bracket (×1)
-
J: Battery-to-battery communication cable (×1)
Note: Inverter and junction box connection cables are not included. These are available separately in a dedicated cable kit.
🔧 Installation Instructions
-
Unpack the CLI100‑48LT battery.
-

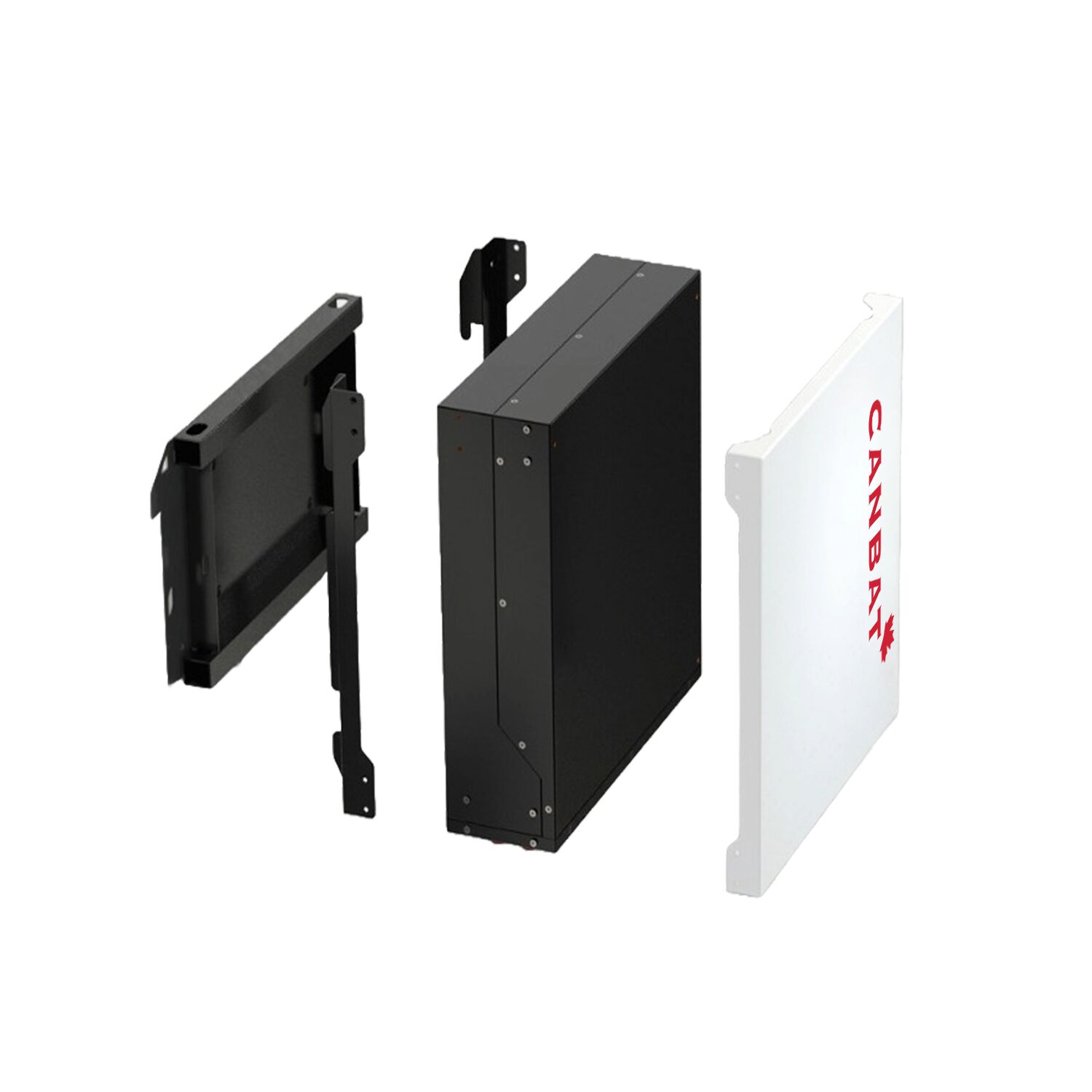

Remove the mounting ears from both sides and separate the wall mounting bracket and widget.
-
Place the wall mounting bracket horizontally on the wall and mark the hole positions.
-
Drill holes in the wall (≥60 mm deep) and insert the M10 expansion bolts.
-
Fix the wall bracket to the wall using the supplied nuts.
-
Attach the decorative panel and wall mounting widget to the battery using the combination screws.
-
Carefully lift the battery and insert the hook into the bracket’s hanging slot.
-
Secure the widget to the bracket using the provided screw and tighten with a screwdriver.
-
Complete the inter-battery cable connections.
⚠️ Caution
Please secure the parallel cables between batteries to the wall or a fixed structure. This prevents the conductors from bearing their own weight over time, which could lead to strain or damage.
🛠 Ideal Applications
-
Residential lithium battery storage
-
Wall-mounted inverter rooms
-
Telecom and utility enclosures
-
Indoor backup power systems
-
Energy storage in commercial facilities
