Description
PMP122305102

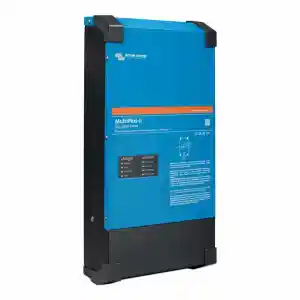

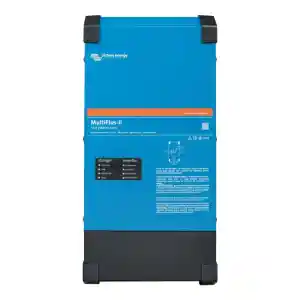

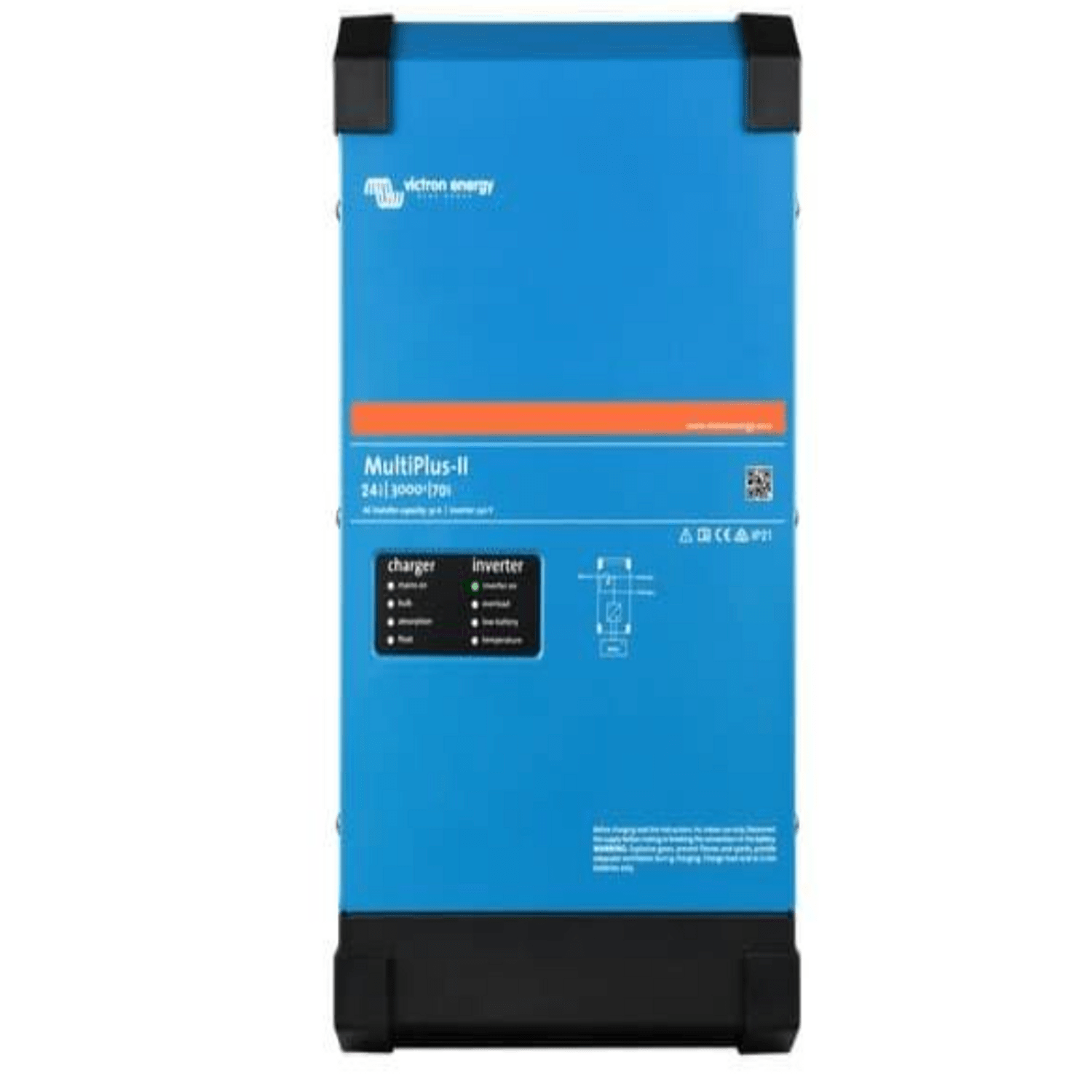

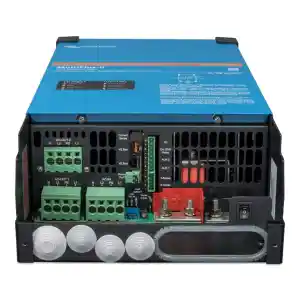

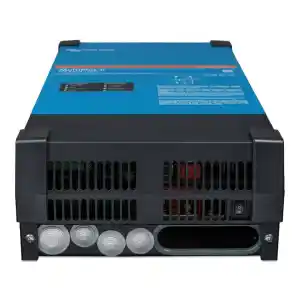

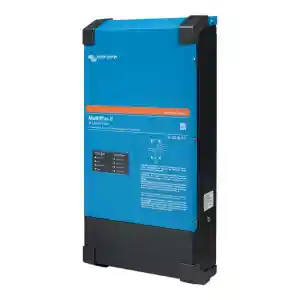

The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimize self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
Note: for a short period of time this PMP122305102 product was called MultiGrid-II.
PowerAssist
The MultiPlus-II will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shoreside supply with power taken from the battery.
ESS: Energy Storage Systems
The MultiPlus-II is the key component in a Victron ESS system, providing the flexibility to combine with MPPT Solar Chargers or Grid-tie PV Inverters. For examples and more detailed information see the ESS (Energy Storage System) manual.
Uninterrupted AC power (UPS function)
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Remote Monitoring and Control
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems’ locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto-starting a backup generator and more.
All the information above is specific to the PMP122305102 model and may not apply to other MultiPlus models. To learn about other Victron inverters, please visit their specific product page or download the Victron Energy product manual. Feel free to contact us if you need any assistance. Canbat experts are available by phone, email and 24/7 chat.
Jesse A. –
The MULTIPLUS-II 12/3000/120-50 2X120V is great, not only has the multiplus features but also an external current transformer option, and what makes it even better it’s got the all the features of the MultiGrid. So far I am loving this Victron product. Worth every penny.
James P. –
Canbat is the best, no wonder they are so popular amongst people that buys lithium batteries and Victron equipments. Amazing customer service and fantastic tech support.
Chris J. Webb –
I recently purchased a single unit MULTIPLUS-II 12/3000/120-50 2X120V and I must say it was so easy to install. One thing to take note of, this unit is heavy so if lifting it over your head I would suggest getting a hand. I prepared the wall surface with 3\4 plywood with structural screws on the studs and then I used cement board as a fire barrier. This maybe over kill but I have used it for all my systems. I made sure the unit was in the off position and I used a pre-charge resistor for 10 seconds and I no spark at all. Like all Victron units you get what you pay for and this was no exception. Canbat shipped it out right away and I got it in a few days. I am very happy!
