Description
BPR110022000

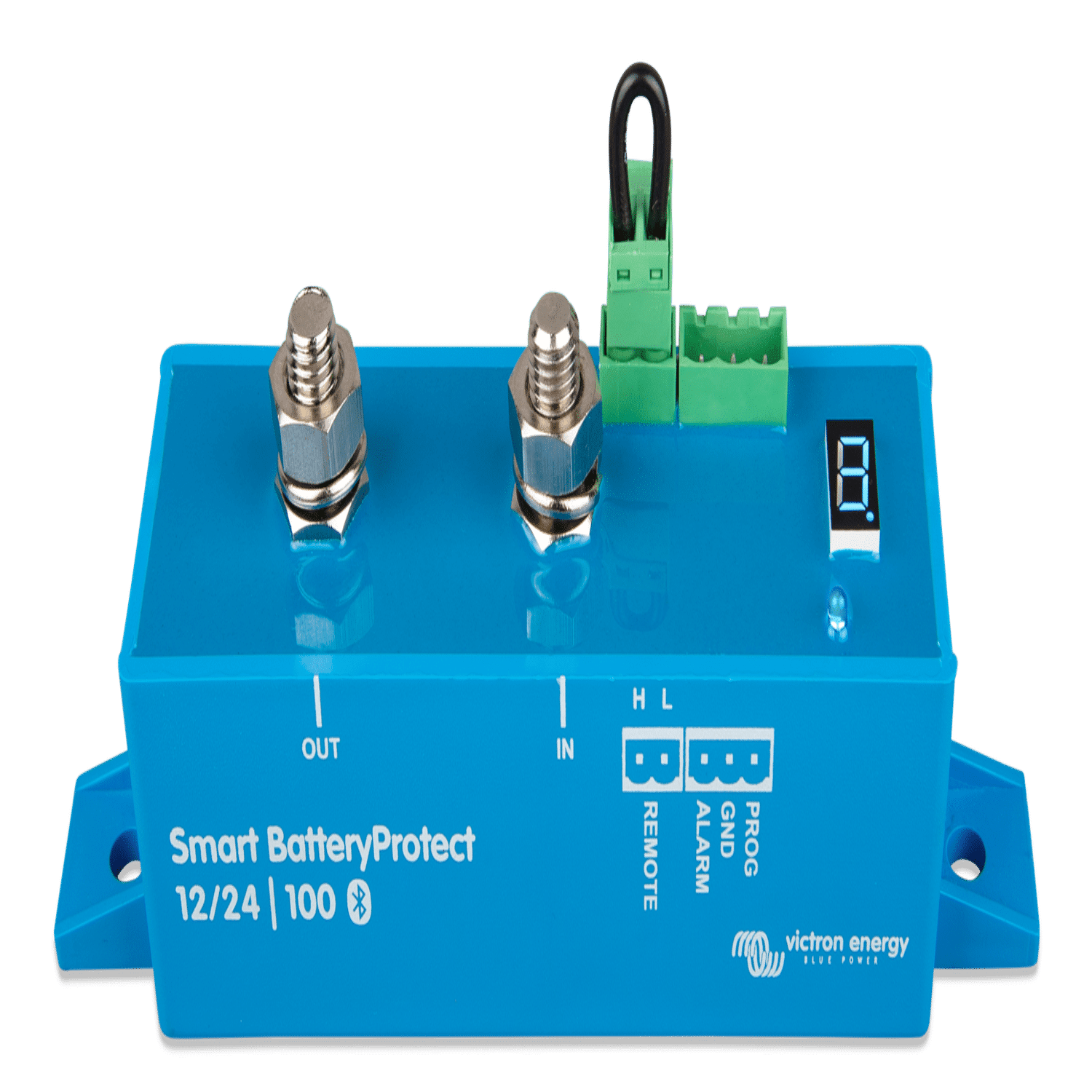

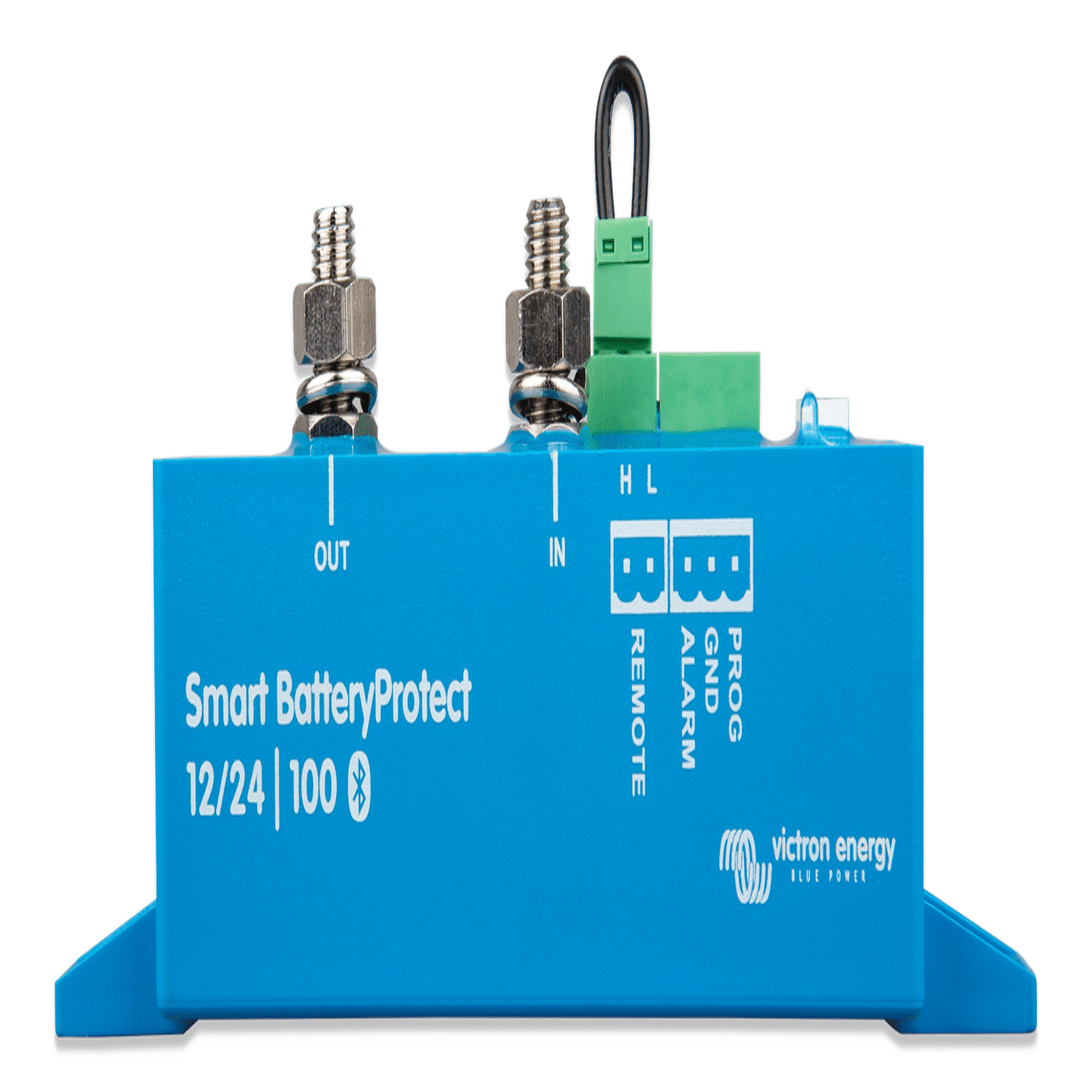

- The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.
Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).
If required, Bluetooth can be disabled.
The Smart BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the IN terminal to the OUT terminal. In case of use with a load, the battery connects to the IN terminal, and in case of use with a charger, the charger connects to the IN terminal.
Peter U. –
Installed the Victron Smart BatteryProtect 12/24 V‑100 A in my camper’s electrical system a few months ago, and it’s been quietly doing its job without drawing attention. It automatically cuts the power to non-essential loads when the battery gets too low, and reconnects things once the voltage bounces back, which means no drained batteries overnight. Setup was straightforward, though I had to double-check the DIP switch settings for my lead-carbon bank. It’s compact, robust, and doesn’t even heat up under moderate loads. A simple but effective insurance policy to keep my batteries from being pulled down by forgotten lights or accessories.
