Description

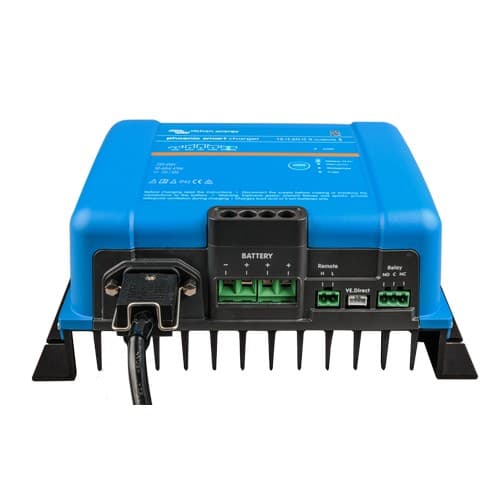

🔋 Victron Phoenix Smart IP43 Charger 24V 25A – PSC242553095
Victron Phoenix Smart IP43 Charger 24V 25A is a high-performance smart charger built for demanding 24V power systems. Designed for use in marine, RV, and off-grid environments, it delivers powerful, efficient charging with full Bluetooth connectivity and multi-bank output capability.
This advanced charger supports up to 3 battery banks and features an adaptive 6-stage charging algorithm, ensuring your batteries—whether lithium, AGM, GEL, or flooded—are charged quickly and safely. Its rugged IP43-rated housing makes it ideal for installation in challenging environments, and the VictronConnect app allows full remote control and monitoring.
✅ Key Features
-
24V / 25A output with support for up to 3 battery banks
-
Bluetooth Smart built-in for wireless setup and monitoring
-
Adaptive 6-stage charge algorithm for lead-acid and lithium batteries
-
Wide AC input range (85–265V) for global compatibility
-
Silent and energy-efficient operation (up to 95% efficiency)
-
IP43 protection for housing; suitable for marine and mobile use
-
Programmable relay and remote on/off support
📊 Technical Specifications
| Feature | Details |
|---|---|
| Model | PSC242553095 |
| Input Voltage | 85–265V AC, 45–65 Hz |
| Output Voltage | 24V DC |
| Max Output Current | 25A |
| Battery Outputs | 1–3 (shared output current) |
| Charge Algorithm | 6-stage adaptive + lithium mode |
| Efficiency | Up to 95% |
| Connectivity | Bluetooth + VE.Direct |
| Protection | IP43 housing / IP22 connections |
| Dimensions | 246 × 180 × 115 mm |
| Weight | ~3.0 kg |
🛠 Ideal Applications
-
Marine vessels and boat battery systems
-
RVs, trailers, and camper vans
-
Off-grid and backup power installations
-
Workshop and fleet maintenance systems
-
Lithium and AGM battery banks with multiple outputs
Riley W. –
Power performance is consistent even under high loads. Mounting was straightforward and the terminals are solid.
