Description
🔌 Victron QUA485021100 Quattro 48/5000/70-100/100 Inverter/Charger
Reliable Off-Grid and Backup Power for Solar, Marine, RV, and Industrial Systems
The Victron QUA485021100 Quattro 48/5000/70-100/100 is a premium inverter-charger built to deliver exceptional performance in demanding environments. Designed for solar energy storage systems, off-grid installations, RVs, boats, and home backup applications, this hybrid power solution combines a powerful 5000VA inverter with a high-capacity 100A battery charger, dual AC inputs, and advanced system integration features.
⚡ Key Features
✅ Dual AC Inputs with Auto Transfer
Seamlessly switch between grid power and generator input without interruption. The Quattro ensures your essential loads stay powered at all times.
✅ PowerAssist Technology
Eliminate overloads by combining inverter output with shore or generator input. This smart power boost lets the system handle high startup surges.
✅ Advanced 100A Battery Charger
Charge large battery banks quickly and safely. The Quattro supports lithium, AGM, gel, and lead-acid batteries with adaptive charging profiles.
✅ Pure Sine Wave Inverter Output
Run sensitive electronics with confidence. Enjoy clean, stable, 48V DC to 120V AC conversion ideal for off-grid homes and mobile power setups.
✅ Remote Monitoring and Control
Access real-time data and performance logs via the VictronConnect app or the VRM Portal. Full system visibility from anywhere in the world.
✅ Parallel & Three-Phase Ready

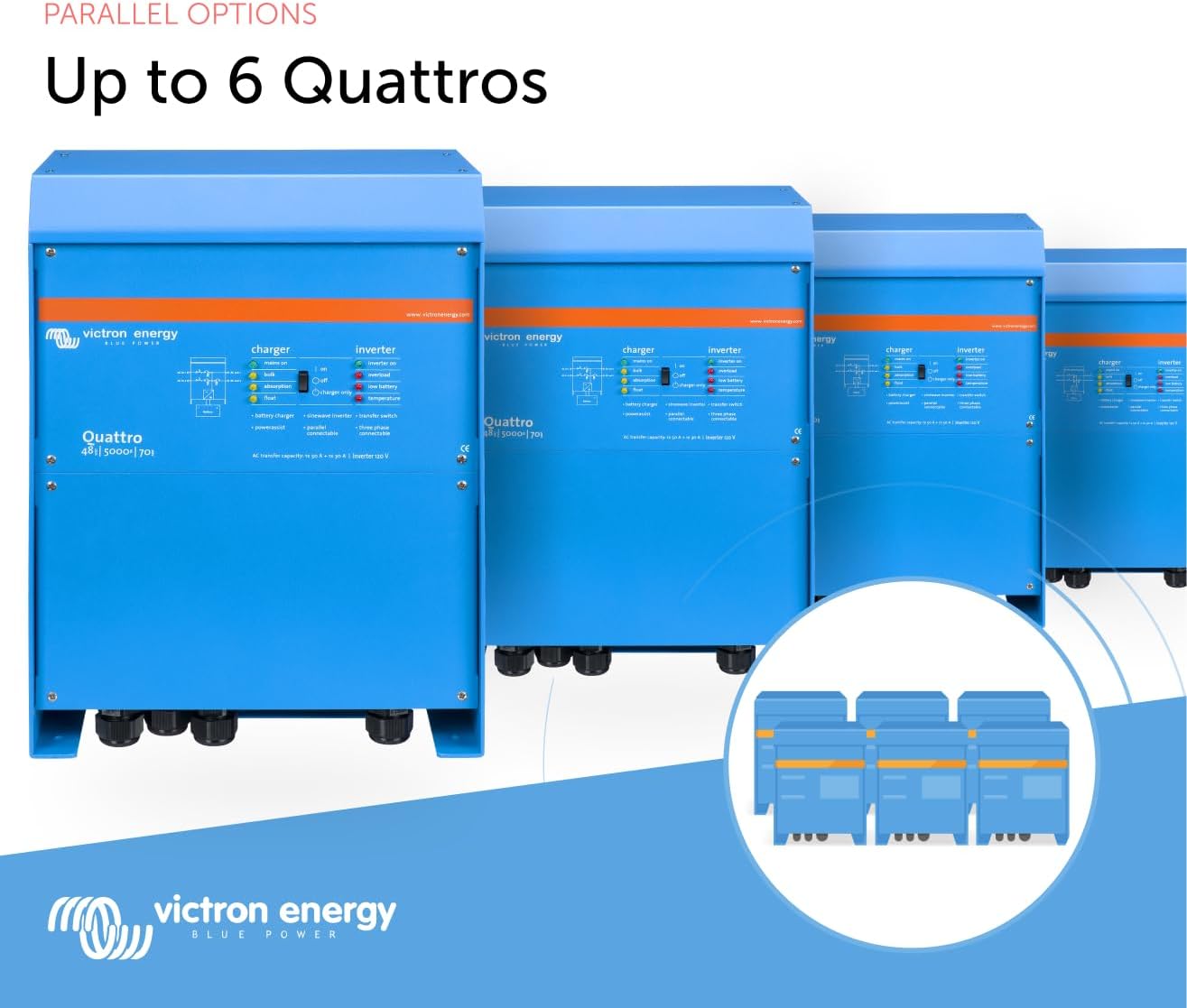

Need more power? Connect up to six units in parallel or configure for three-phase systems – perfect for industrial and large residential systems.
✅ Built-In Protection
Stay safe with built-in protection against overloads, short circuits, high temperature, and battery over/under-voltage conditions.
🧰 Technical Specifications
| Parameter | Value |
|---|---|
| Model | Victron QUA485021100 Quattro |
| Inverter Continuous Power | 5000VA @ 48V DC |
| Peak Power Output | Up to 10,000VA |
| Charger Output | 100A |
| AC Input Voltage | 120V / 60Hz |
| Efficiency | Up to 94% |
| Supported Battery Types | Lithium, AGM, Gel, Lead-Acid |
| Transfer Switch Speed | < 20ms (UPS-grade) |

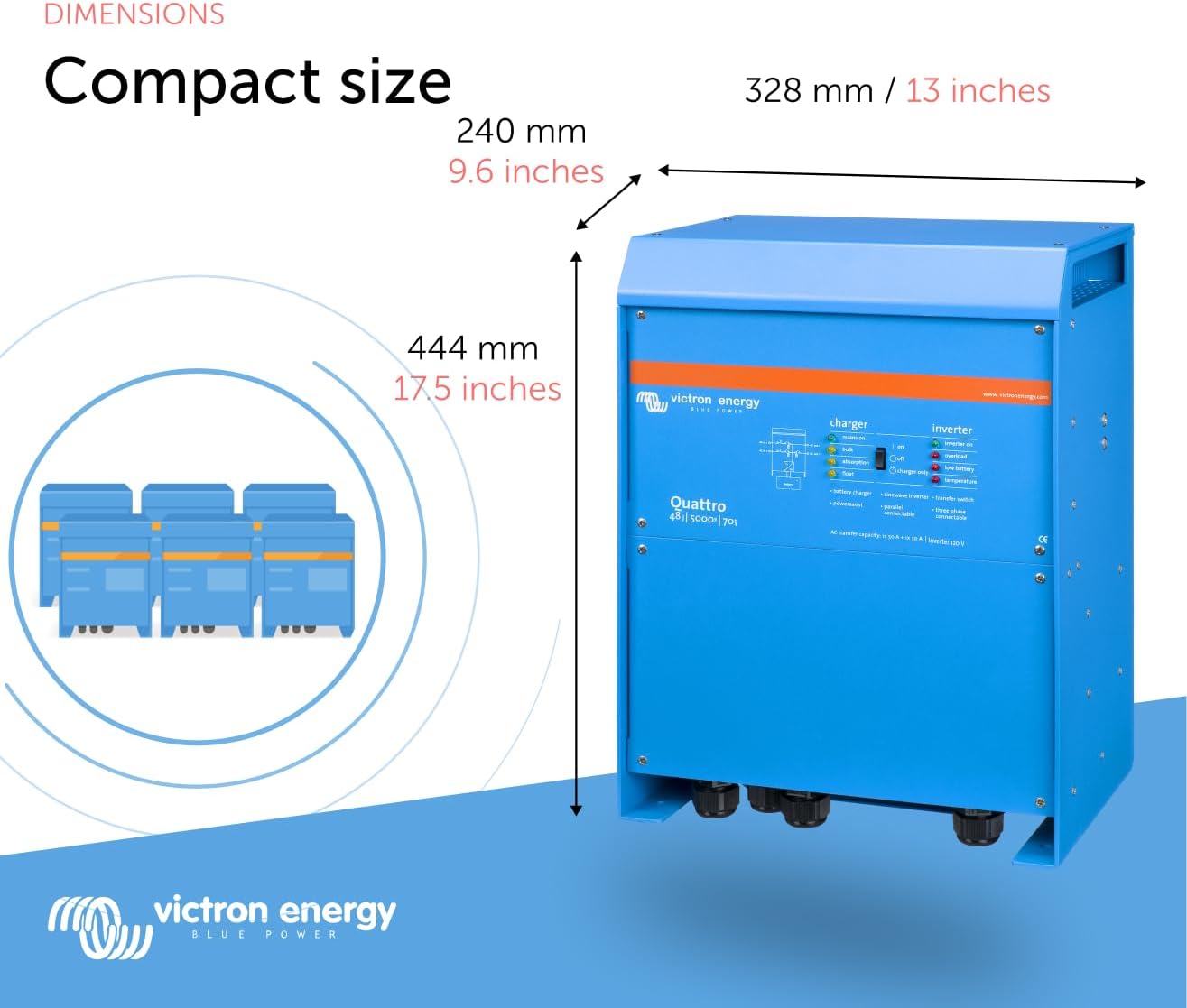

| Dimensions | 17.5 x 13.0 x 9.6 in (444 x 328 x 240 mm) |
| Weight | Approx. 66 lbs (30 kg) |
| System Integration | Compatible with Victron GX devices |
🧭 Applications
🚐 Off-Grid Cabins & RVs – Perfect for remote locations requiring efficient power conversion and storage.
🛥️ Marine Systems – Compact and durable enough for yachts, sailboats, and houseboats.

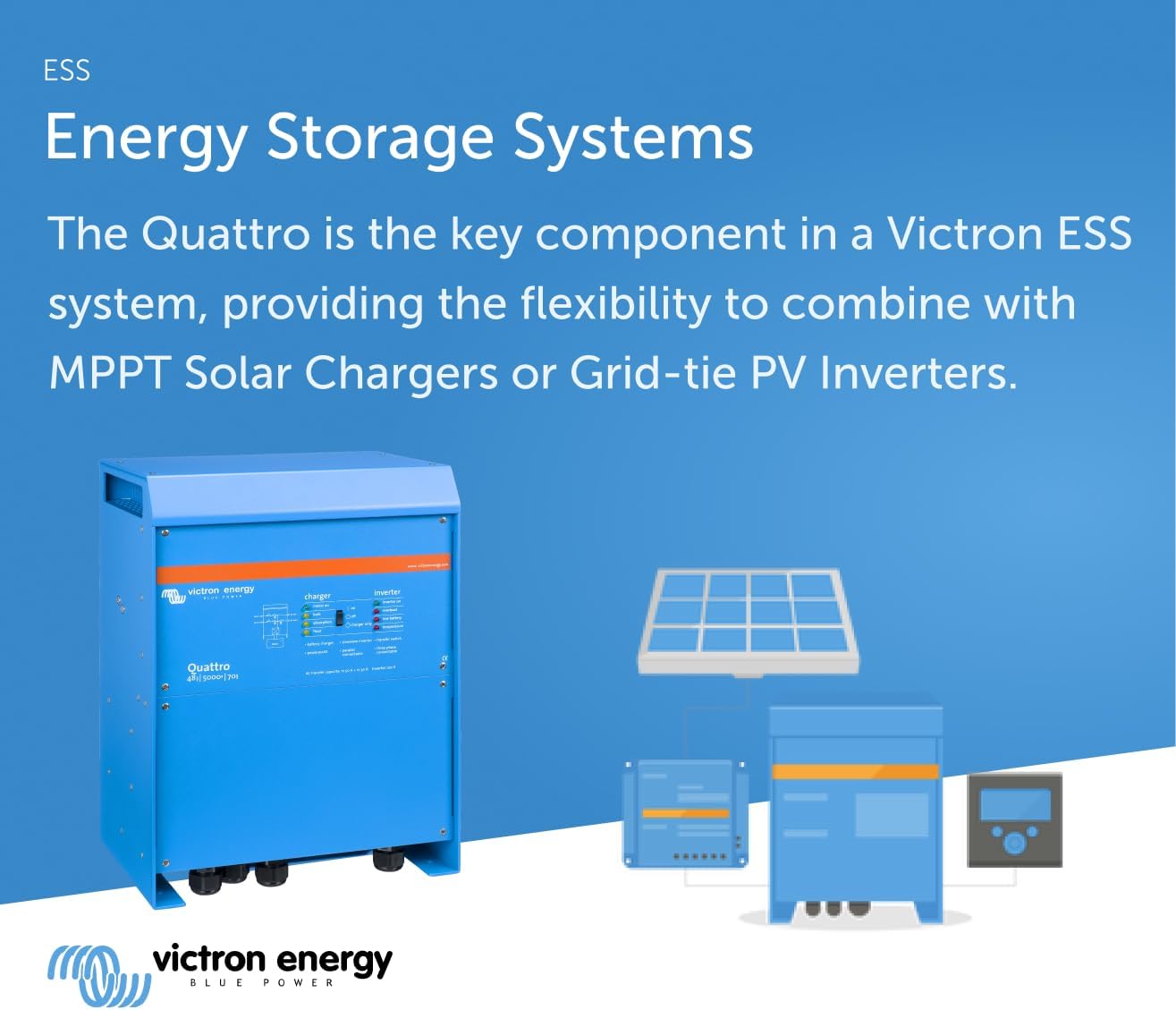

🏠 Residential Solar Backup – Use in hybrid solar + battery systems for whole-home energy management.
🏭 Commercial Installations – Scalable design supports three-phase and high-capacity operations.
🛡️ Why Choose the Victron Quattro 48/5000/70-100/100?
-
✅ Designed for off-grid solar systems
-
✅ Ideal for 48V battery banks
-
✅ Includes automatic transfer switch
-
✅ Supports parallel and three-phase expansion
-
✅ Built for harsh climates and industrial reliability
Upgrade to the Victron QUA485021100 Quattro and experience unmatched power resilience, energy efficiency, and remote monitoring in one all-in-one inverter/charger. Whether you’re building an off-grid solar system, powering a mobile setup, or securing your home against outages, this Victron inverter delivers the performance and peace of mind you need.
Patrick S. –
I gotta admit the Victron Energy 48V 5000W Quattro with a built-in charger is expensive, but if you gonna do a heavy duty project or setup your RV or a huge solar power setup, this would be perfect for you. This is a high end inverter with basically every features and configuration all in one package. Thus far, I am loving it.
Clayton D. –
I live in a far isolated community place, and this inverter is perfect for me. I installed it in split phase and it’s working great. It really handles heavy loads as if it is nothing, I set up two of Victron Energy 48V 5000W Quattro with my solar system setup; and the result was satisfying. Glad I made this choice, I have high expectations for it, hopefully it won’t let me down along the way.
Jon A. –
The 5000VA 120V AC inverter is great and all, but if you gonna connect it to computer or have monitoring system, you will need to buy those accessories separately cause it doesn’t come with it which is kind of a bummer. But on the other hand, you will get this amazing inverter. Generally speaking, I have been buying Victron equipments since like ever and they make a pretty good high quality products, and this inverter takes the spotlight.
Justin C. –
Canbat is the best place to buy Victron equipments. I bought the Victron Energy 48V 5000W Quattro from them, and it was delivered within a few days with free shipping. Fantastic customer service, I am always gonna buy it from here.
Ralph W. –
I bought a Victron Energy 48V 5000W Quattro with a little bit of being skeptical about it. So far it hasn’t disappointed it yet, love the fact that it’s main output has no break functionality which is a huge thing for me. I replaced the old one I had with this, and it was huge improvement for my setup. It goes along perfectly well with my other Victron equipments; creating a unique Victron vibe to it. Outstanding.
