Stack Mounting Kit

Lithium Battery Stack Mount – Secure Installation Kit for up to 4 units of the Canbat CLI100‑48LT

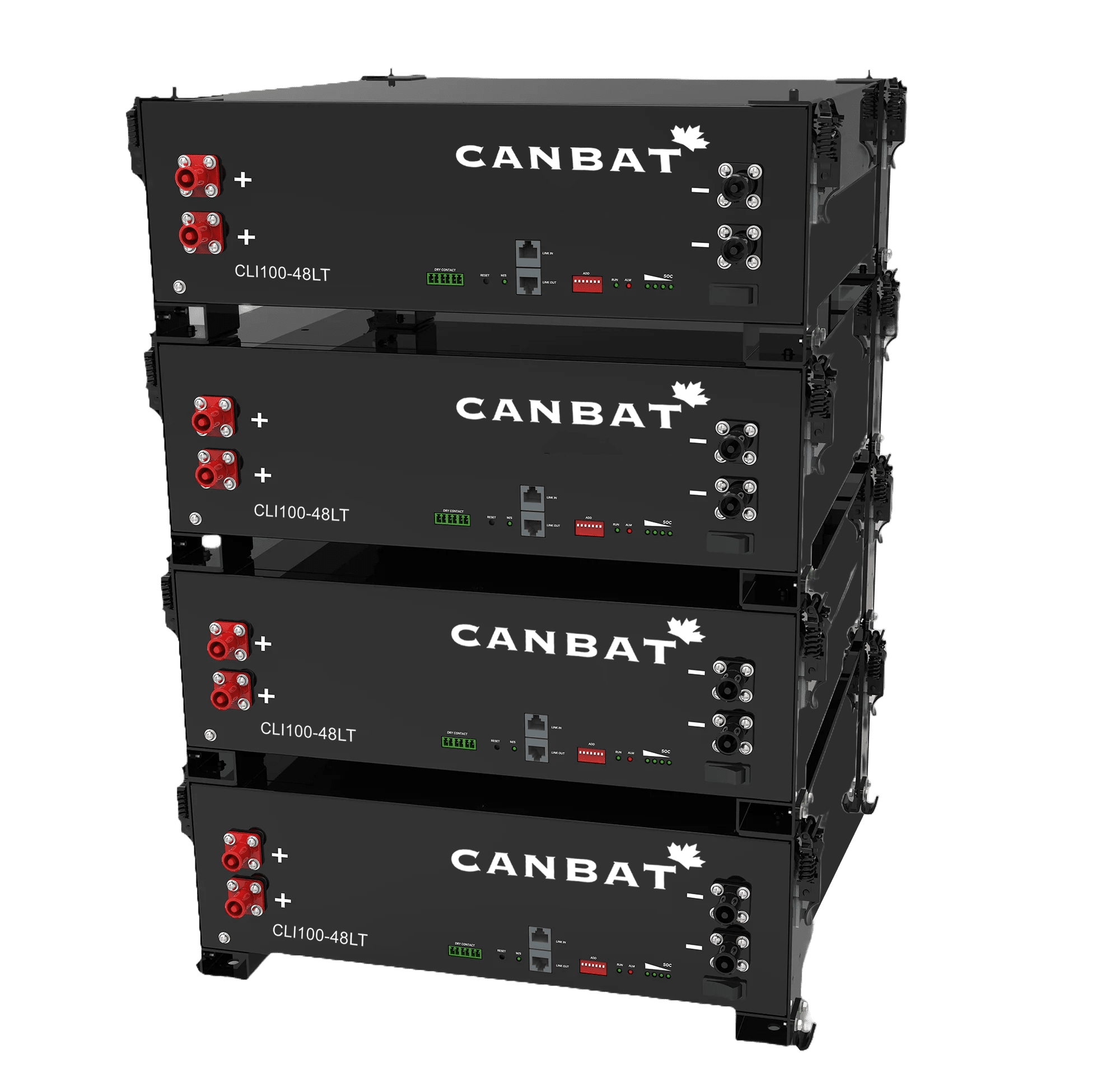

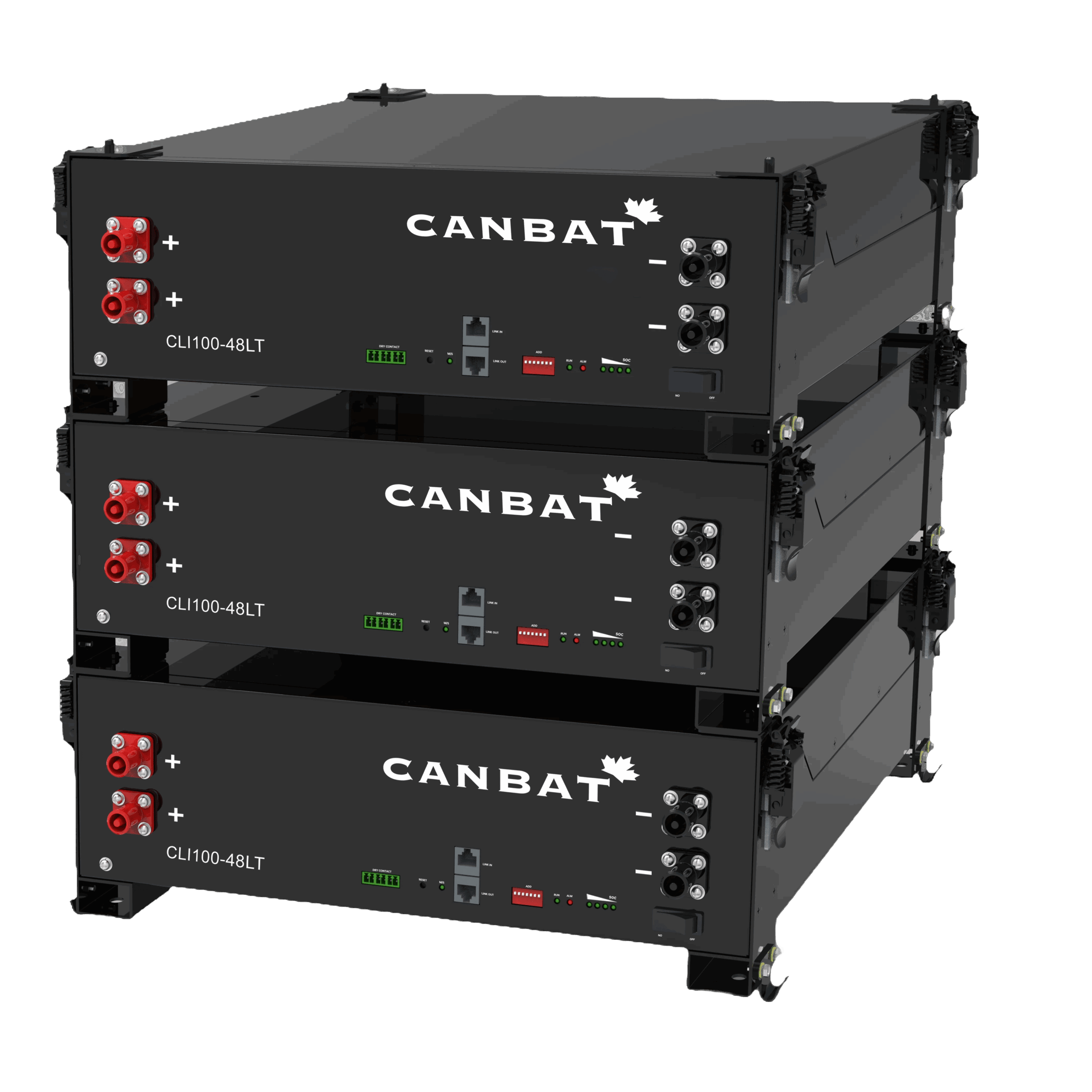

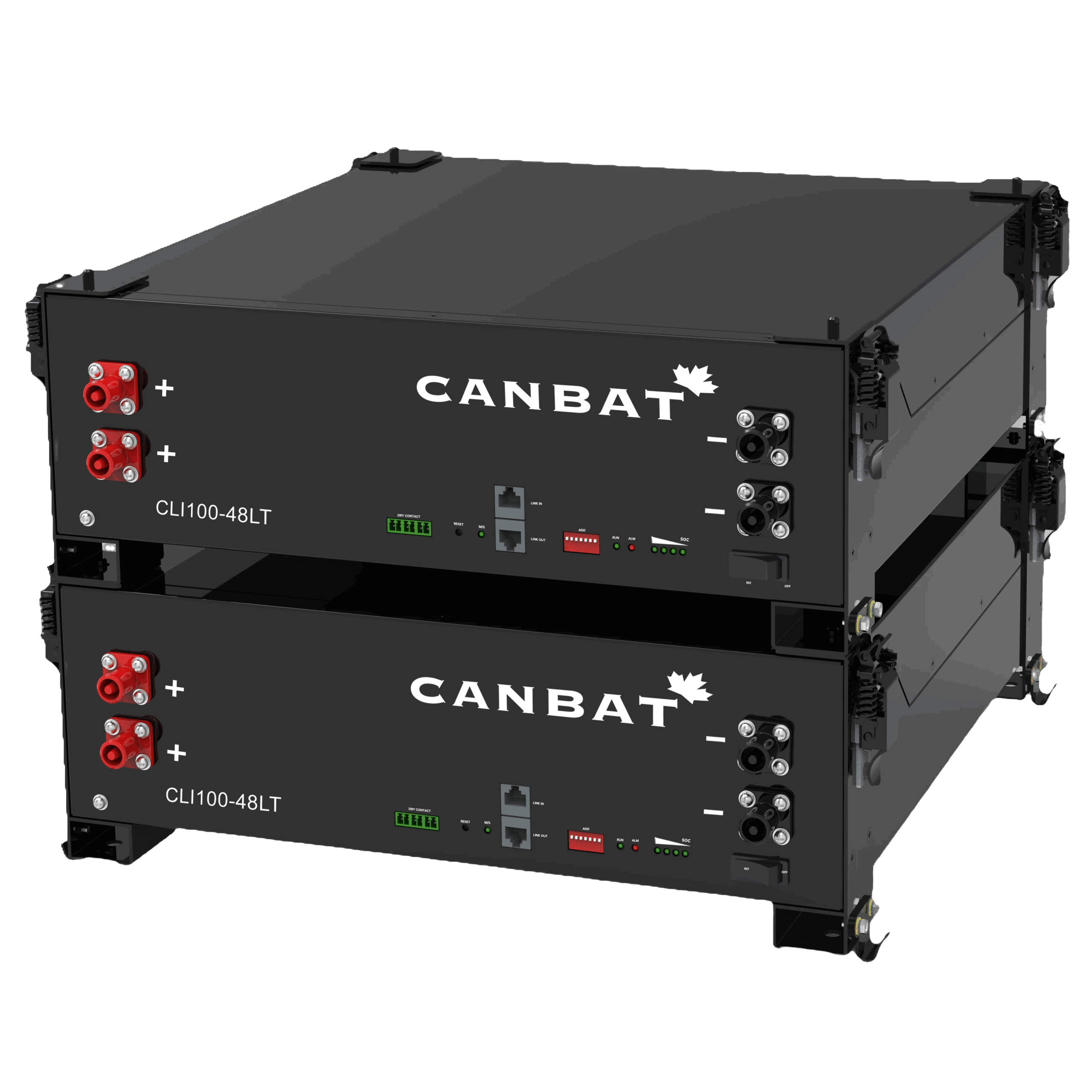

The Stack Mounting Kit is specifically engineered to safely and efficiently mount up to four Canbat CLI100-48LT lithium batteries in a compact vertical stack. Ideal for high-density battery banks in both residential and commercial environments, this kit allows for optimal use of floor space while maintaining clean cabling, airflow, and secure installation.

Built from heavy-duty, corrosion-resistant steel, the stacking components are designed for durability and ease of use. The kit includes everything required to stack and connect the batteries electrically, including parallel, grounding, and communication cables. Whether you’re installing an off-grid power wall, a telecom backup system, or an industrial battery rack, the Stack Mounting Kit provides a reliable and space-efficient solution.

🔧 Installation Instructions

1. Unpack: Remove the CLI100-48LT battery from its packaging.

2. Remove side mounting ears: Detach the mounting ears from both sides of each battery.

3. Install stacking components: Attach one stacking bracket to each corner of the bottom battery.

4. Remove hooks: Detach the locking hooks from the stacking components on the bottom battery.

5. Add batteries: Place the next battery on top, align the locating holes, and connect all four corner lockers.

6. Repeat: Continue stacking additional batteries (up to a maximum of 4 per stack).

7. Connect cabling: Complete the electrical setup using the included parallel, grounding, and communication cables.

🛠 Ideal Applications

• Solar energy storage (off-grid and hybrid systems)

• Commercial backup power installations

• Industrial UPS and telecom sites

• Data center or server room battery banks

• Energy storage cabinets with limited floor space
