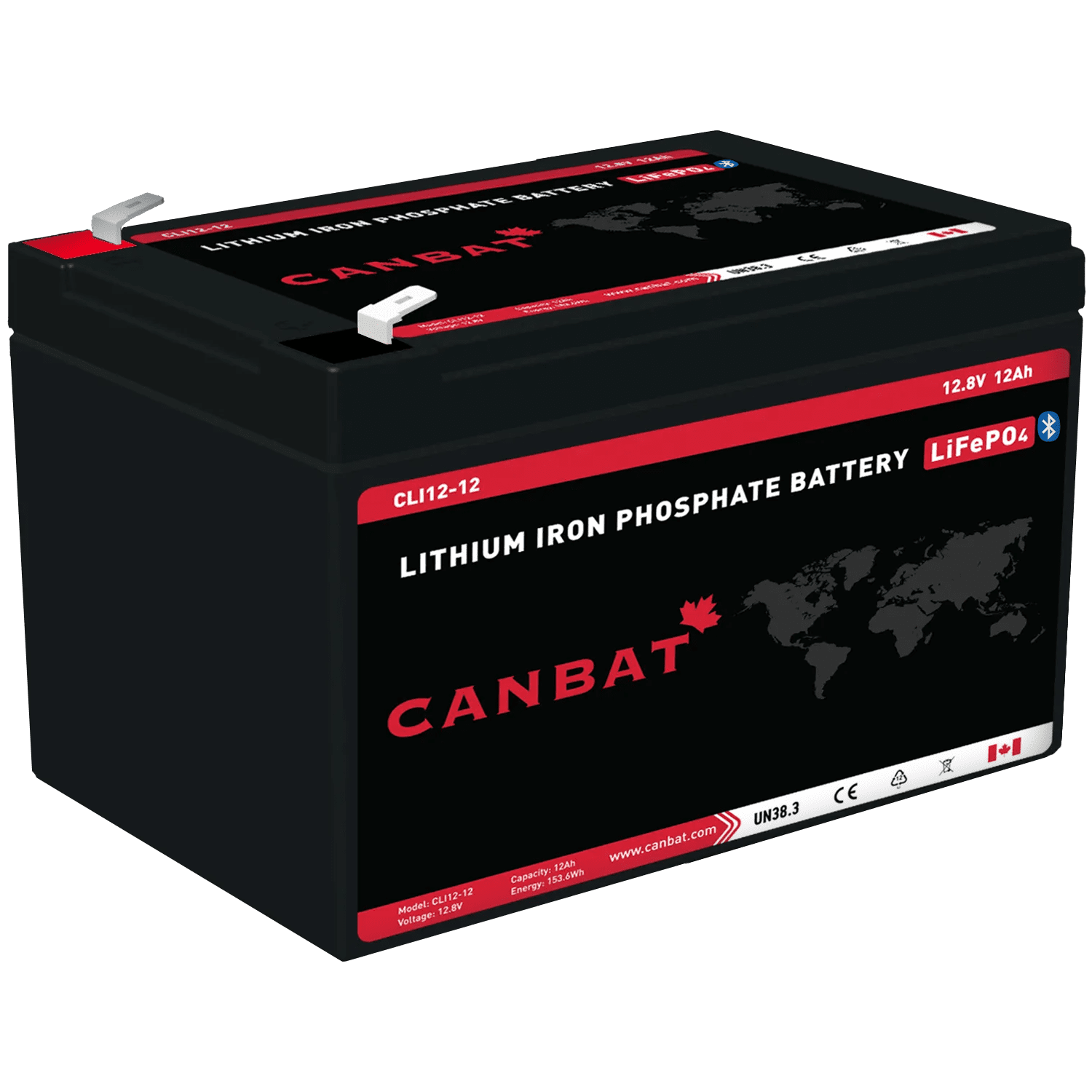

12V 12Ah Lithium Battery — CLI12-12
The Canbat CLI12-12 is a 12V 12Ah lithium battery delivering 153.6Wh of usable LiFePO4 energy in a compact 151 × 99 × 95 mm footprint at just 3.3 lbs (1.50 kg) — a premium lithium replacement for 12V 12Ah sealed lead-acid batteries used in alarm systems, UPS units, emergency lighting, access control equipment, communications infrastructure, and compact auxiliary power systems. Equipped with standard F2 (T2) blade terminals for direct compatibility with existing SLA battery connectors and enclosures, the CLI12-12 installs into existing equipment without wiring modifications, adapters, or hardware changes.
The primary advantage of the CLI12-12 over the sealed lead-acid batteries it replaces is not runtime — it is lifecycle, standby reliability, and reduced service frequency. Where a 12V 12Ah SLA battery typically delivers 300–500 cycles before capacity degrades to the point of replacement, the CLI12-12 delivers 3,000–5,000 cycles at 100% usable depth of discharge — extending the service interval by a factor of ten or more and significantly reducing total cost of ownership in deployments where battery replacement requires a scheduled service visit.
It ships free across Canada and the USA, carries a 10-year warranty, and is built with UL 1642 certified cells. For Canada and USA orders, there are no import duties or cross-border complications.
F2 Terminal Compatibility — Direct SLA Replacement
The CLI12-12 uses standard F2 (T2) blade terminals — the same terminal format found on the vast majority of 12V 12Ah sealed lead-acid batteries used in alarm panels, UPS cabinets, emergency lighting fixtures, and access control systems. This means the CLI12-12 connects directly to existing battery harnesses and spade connectors without modifications — a genuine drop-in replacement at the connector level, not just the voltage level.
A sealed lead-acid battery at 12Ah nominal delivers approximately 6Ah of usable energy before reaching the depth-of-discharge limit that protects its cycle life. The CLI12-12 delivers its full 12Ah at 100% usable depth of discharge — twice the accessible energy in the same physical format and enclosure dimensions, with stable voltage maintained throughout the entire discharge cycle. For standby applications, lithium chemistry also maintains capacity more reliably during extended float periods compared to SLA batteries, which degrade silently and may fail to deliver rated backup time when actually needed.
At 3.3 lbs (1.50 kg) — approximately half the weight of a 12V 12Ah SLA battery — the CLI12-12 reduces enclosure load, simplifies installation in wall-mounted panels and ceiling-mounted emergency units, and improves handling in compact equipment housings where battery access is constrained.
Applications
Alarm Systems & Security Infrastructure
The CLI12-12 is a direct lithium replacement for the 12V 12Ah SLA batteries used in commercial and residential alarm panels, motion detection systems, security control units, and video surveillance backup power. F2 terminal compatibility ensures connector-level replacement with no rewiring. The 3,000–5,000 cycle life significantly reduces replacement frequency compared to the 300–500 cycles typical of SLA batteries in alarm system standby service — fewer service visits, lower maintenance cost, and more consistent standby performance over the installed life of the equipment.
UPS Systems & Standby Backup Power
For small and mid-size UPS units protecting network equipment, communications infrastructure, point-of-sale systems, and critical electronics, the CLI12-12 provides a lithium upgrade that delivers twice the usable backup energy of the SLA battery it replaces — in the same enclosure, with longer service life and without the sulfation degradation that reduces SLA battery capacity during extended standby periods between discharge events.
Emergency Lighting & Exit Sign Backup
Emergency lighting units, exit signs, and egress lighting systems that use 12V 12Ah SLA batteries for backup power are direct CLI12-12 replacement candidates. Lithium chemistry maintains capacity more reliably during extended standby compared to SLA batteries, which degrade silently and may fail to meet minimum illumination duration requirements during an actual emergency event if replacement intervals are not strictly observed.
Access Control, Remote Monitoring & Field Equipment
For access control panels, gate operators, intercom systems, trail cameras, remote monitoring stations, and compact field instrumentation where a 12V 12Ah SLA battery is the standard power source, the CLI12-12 delivers a lithium upgrade with no compatibility changes — same voltage, same F2 terminal format, significantly longer service life, and lower long-term replacement cost in deployments where service access is scheduled or logistically constrained.
12V 12Ah Lithium Battery — SLA Replacement for Alarm, UPS & Emergency Lighting
The CLI12-12 is Canbat’s compact standby infrastructure lithium battery — a 12V 12Ah LiFePO4 platform with standard F2 (T2) terminals designed for direct sealed lead-acid replacement in alarm systems, UPS units, emergency lighting, access control equipment, and security infrastructure. It targets buyers sourcing a 12V 12Ah lithium battery for alarm battery replacement, UPS battery replacement, emergency lighting backup, or SLA replacement applications requiring long service life, maintenance-free operation, and direct connector compatibility.
For Canadians sourcing a 12V 12Ah lithium SLA replacement battery, the CLI12-12 ships free with no import duties, is backed by a Canadian technical team, and carries a 10-year warranty. Compatible with all chargers and charge controllers that support a LiFePO4 charging profile.
Runtime & Performance
The CLI12-12 delivers 153.6Wh of usable energy at 12V nominal — all accessible at 100% depth of discharge with stable voltage throughout:
| Application / Load | Average Draw | Estimated Runtime |
|---|---|---|
| Alarm / security system standby | ~0.3–1A | ~12–40 hours |
| UPS backup — light load | ~1–3A | ~4–12 hours |
| Emergency lighting backup | ~2–4A | ~3–6 hours |
| Remote monitoring / trail cameras | ~0.3–1A | ~12–40 hours |
| Access control / communications | ~0.5–2A | ~6–24 hours |
Runtime figures are based on 100% usable depth of discharge. The CLI12-12 maintains stable voltage throughout the discharge cycle — consistent performance for standby electronics, alarm systems, and instrumentation loads from start to finish.

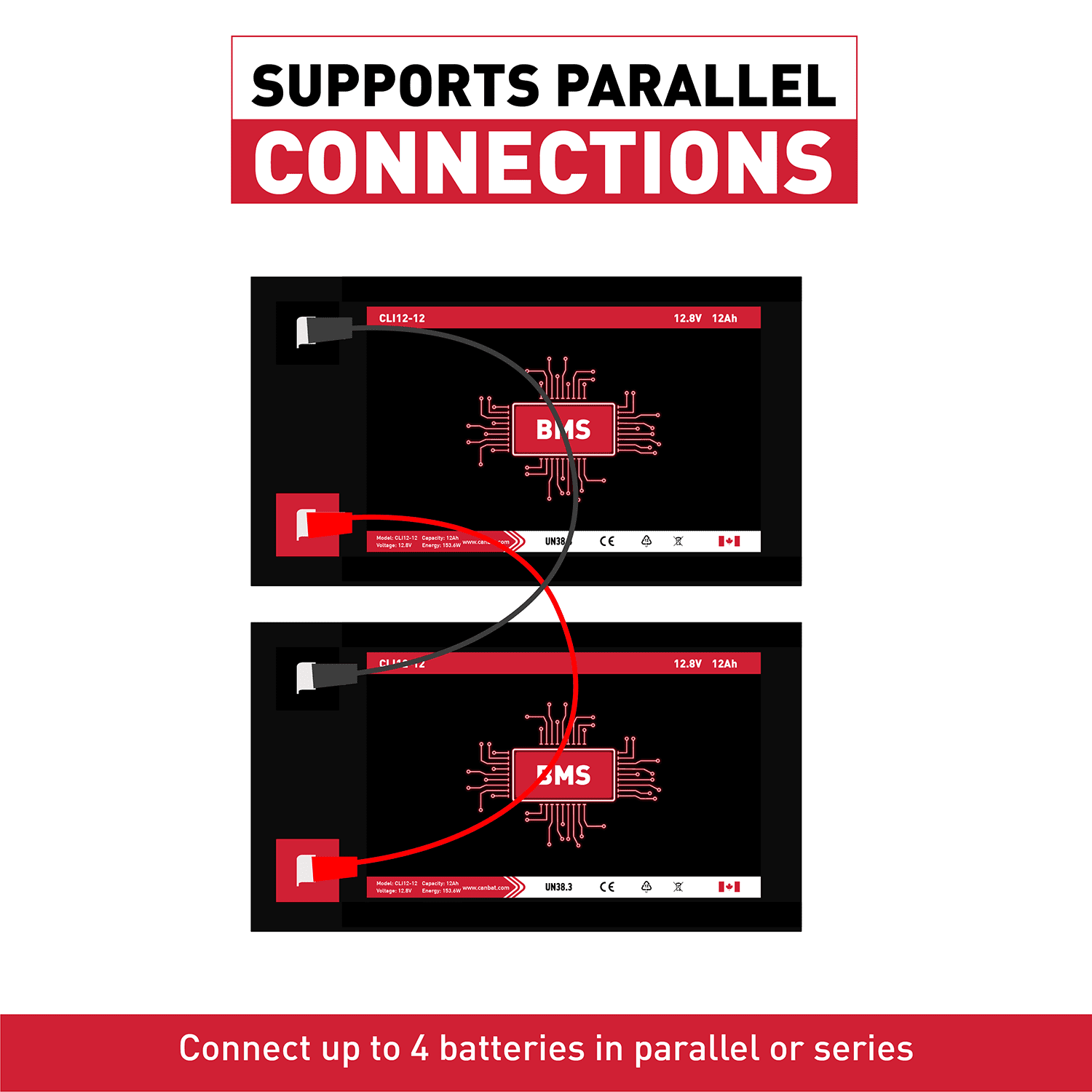

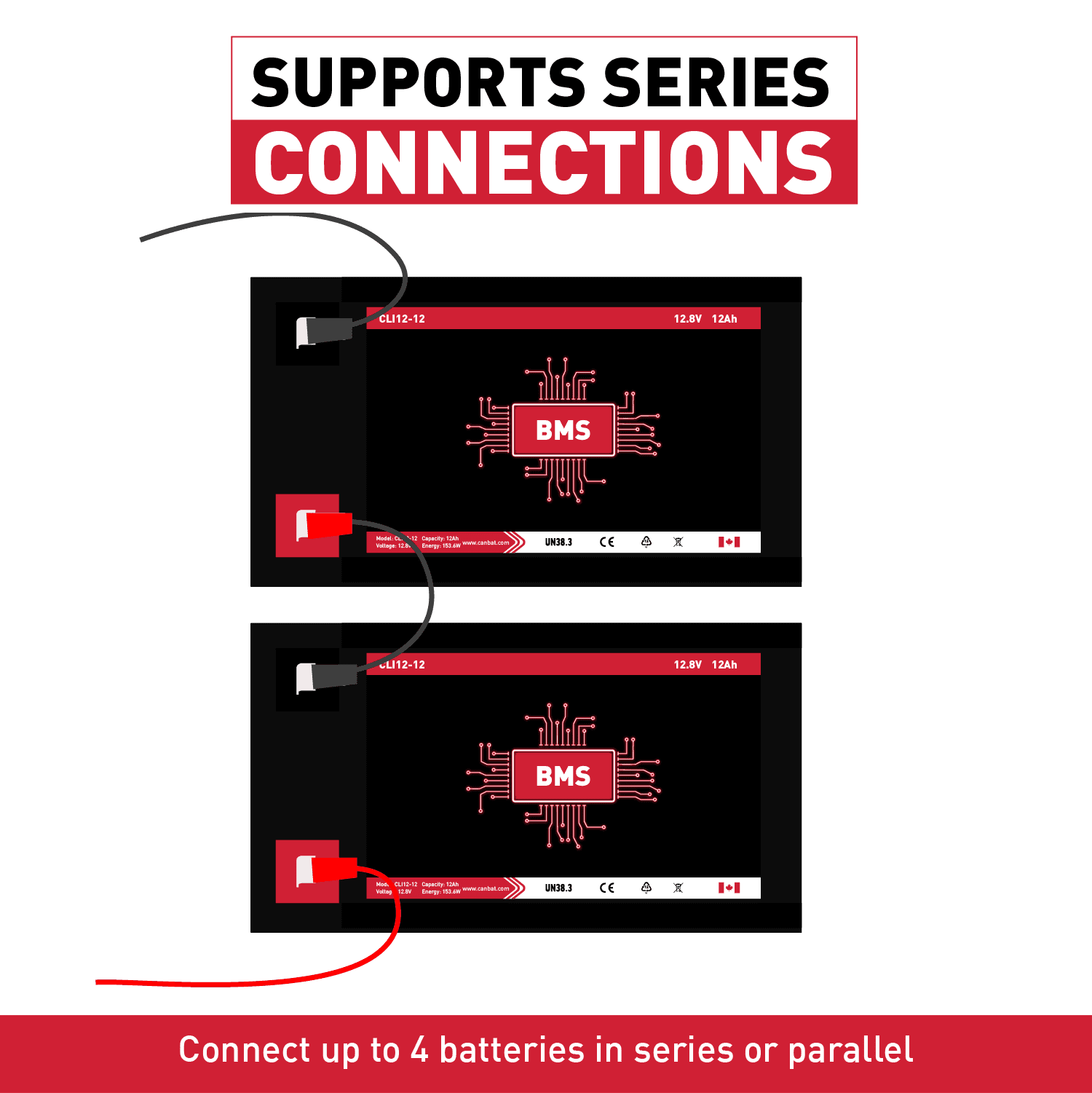

Series & Parallel Expandability
The CLI12-12 supports both series and parallel connections — up to 4 units in either configuration — for systems requiring greater backup capacity or higher system voltage.
| Configuration | Units | System Voltage | Total Capacity |
|---|---|---|---|
| Single unit | 1 | 12V | 12Ah / 153.6Wh |
| Parallel x2 | 2 | 12V | 24Ah / 307.2Wh |
| Parallel x4 (max) | 4 | 12V | 48Ah / 614.4Wh |
| Series x2 | 2 | 24V | 12Ah / 307.2Wh |
| Series x4 (max) | 4 | 48V | 12Ah / 614.4Wh |
The CLI12-12’s modular architecture supports the full range of 12V, 24V, 36V, and 48V system configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | CLI12-12 |
| Chemistry | Lithium Iron Phosphate (LiFePO4) — Cylindrical cells |
| Nominal Voltage | 12V (12.8V nominal) |
| Capacity | 12Ah |
| Energy | 153.6Wh |
| Cycle Life | 3,000–5,000 cycles at 100% DoD |
| Max Continuous Discharge | 12A |
| Peak Discharge | 60A for 3 seconds |
| Max Charge Current | 12A (recommended 6A) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| IP Rating | IP54 — splash and dust resistant |
| Weight | 3.3 lbs (1.50 kg) |

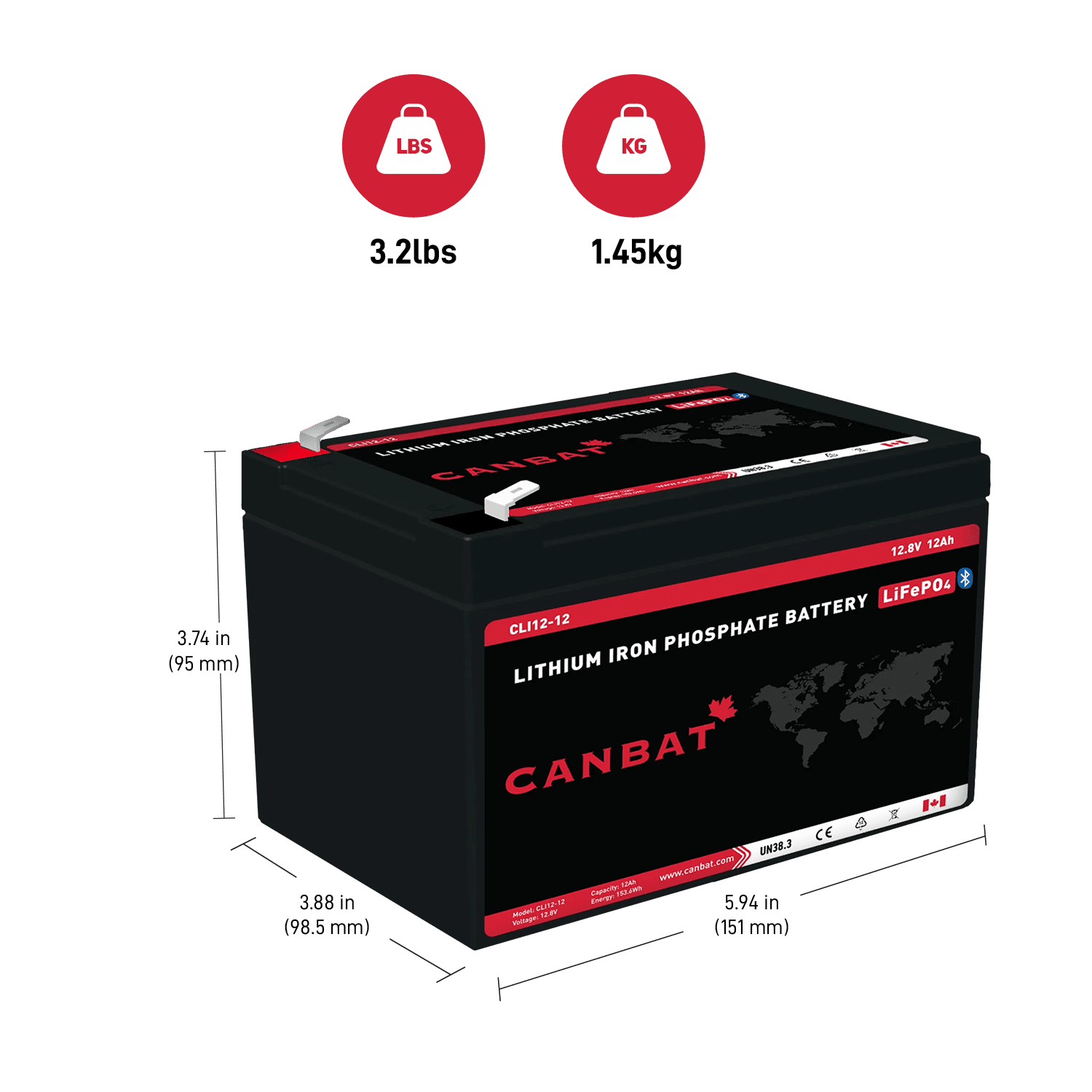

| Dimensions (L x W x H) | 151 x 99 x 95 mm / 5.95 x 3.90 x 3.74 in |
| Terminal Type | F2 (T2) blade terminals — direct SLA connector compatibility |
| Mounting | Upright or on side |
| Parallel Expansion | Up to 4 units (48Ah / 12V maximum) |
| Series Expansion | Up to 4 units (24V, 36V, or 48V systems) |
| BMS Protection | Over-charge, over-discharge, short circuit, over-current, temperature extremes, cell balancing |
| Bluetooth Monitoring | Optional add-on (Canbat BT app — free for iOS and Android) |
| Storage | Store at 80–100% SoC in a cool, dry environment |
| Certification | UL 1642 certified cells |
| Warranty | 10 years |
| Shipping | Free across Canada and USA — no import duties |
Battery Management System and Bluetooth Monitoring
The CLI12-12’s integrated BMS manages cell-level protection and balancing automatically — no external battery management required.
- Over-discharge protection — prevents cell damage from excessive depth of discharge
- Over-charge protection — disconnects at the correct voltage ceiling
- Short circuit and over-current protection — responds within milliseconds
- High-temperature cutoff — protects cells during charging in hot environments
- Cell balancing — maintains consistency across cells over thousands of cycles
The optional Bluetooth add-on connects the battery to the free Canbat BT app, available for iOS and Android. Monitor state of charge, voltage, current, and cell temperature in real time — useful for standby backup installations and remote deployments where direct battery access requires scheduled service visits.
System Compatibility and Installation
The CLI12-12 is compatible with any charger or charge controller that supports a LiFePO4 charging profile. When replacing a sealed lead-acid battery, verify that the charging system’s voltage settings are configured for lithium — most modern UPS units, alarm panel chargers, and trickle chargers include a lithium or adjustable voltage setting. F2 (T2) blade terminals connect directly to existing SLA battery harnesses. The battery installs upright or on its side.
For compatibility questions or system sizing assistance, Canbat’s Canadian technical team is available by phone, email, and live chat.
Canadian Supply, Support and Warranty
Canbat is a Canadian battery manufacturer. The CLI12-12 ships free to any address in Canada and the USA. Canadian and US buyers pay no import duties and face no cross-border complications on their orders.
The CLI12-12 is backed by a 10-year warranty and supported by a Canadian technical team available by phone, email, and live chat. Warranty claims can be submitted directly with Canbat — with no overseas support queues and no runaround.
