Description
12V 200Ah Lithium Battery — CLI200-12
The Canbat CLI200-12 is a 12V 200Ah lithium battery delivering 2,560Wh of usable LiFePO4 energy for serious off-grid solar systems, large RV and marine installations, high-demand van builds, and inverter-powered applications that require more than compact battery formats can provide. Built on prismatic LiFePO4 cells in a Group 4D footprint with 200A continuous discharge, 3,000–5,000 cycle life, and full series and parallel expandability, the CLI200-12 is the high-capacity mainstream deep cycle platform for buyers who need substantial energy storage without stepping into larger commercial battery formats.
At 51.6 lbs (23.41 kg) — significantly lighter than comparable AGM capacity — the CLI200-12 reduces chassis load, simplifies installation, and eliminates the ongoing maintenance that lead-acid alternatives require. For fifth wheels, large motorhomes, serious marine house banks, off-grid cabins, and full-time van builds where energy demand outgrows smaller lithium batteries, the CLI200-12 delivers the reserve and discharge capability to run the system reliably.
It ships free across Canada and the USA, carries a 10-year warranty, and is built with UL 1642 certified cells. For Canada and USA orders, there are no import duties or cross-border complications.
2,560Wh of Usable Energy — Replacing Large AGM Battery Banks
A single CLI200-12 delivers 2,560Wh of fully usable energy at 100% depth of discharge. To match that usable output from a conventional AGM battery bank — where depth of discharge is typically limited to 50% — would require 400Ah of nominal AGM capacity. That means multiple large batteries, significantly more weight, more wiring complexity, and the ongoing maintenance requirements associated with lead-acid systems.
The CLI200-12 consolidates that entire setup into a single Group 4D unit — without the watering, corrosion, and maintenance requirements of AGM alternatives. Same familiar Group 4D footprint. Significantly less weight. Substantially more usable energy. And a cycle life of 3,000–5,000 full charge/discharge cycles that dramatically extends the service interval between battery replacements.
For system builders replacing aging AGM banks, the CLI200-12 delivers more usable energy, less weight, and longer service life in a straightforward Group 4D installation.
Applications
Large RV & Motorhome Systems
Fifth wheels, Class A motorhomes, and large travel trailers running residential-grade electrical systems benefit from the CLI200-12’s 2,560Wh capacity. Run induction cooktops, residential fridges, entertainment systems, and high-draw appliances through extended off-grid stays with significantly reduced generator dependency. The 200A continuous discharge rating supports large inverter loads without voltage sag.
Off-Grid Solar Systems
For off-grid cabins, remote properties, and permanent off-grid homes, the CLI200-12 provides the storage depth to sustain substantial household loads through multiple days of low solar production. A single unit captures and stores significantly more usable solar energy than a large multi-battery AGM bank, in less weight and space.
Marine House Banks
For larger sailing vessels, liveaboards, and powerboats where the house bank must sustain autopilot, radar, chart plotters, refrigeration, watermakers, and full cabin electrical systems through extended passages or multi-night anchorages, the CLI200-12 delivers the reserve capacity in a sealed, maintenance-free Group 4D format. No off-gassing in enclosed spaces. No terminal corrosion.
Van Builds & Overland Systems
For full-time van dwellers and serious overland builds running high-draw appliances, the CLI200-12 provides multi-day energy autonomy in a single battery. At 51.6 lbs it significantly reduces the weight of equivalent AGM capacity while delivering substantially more usable energy for inverter loads, compressor fridges, and onboard systems.
Backup Power & Emergency Systems
Paired with a quality inverter, the CLI200-12 provides substantial backup power for essential household loads, medical devices, and critical communications during extended grid outages. Its 2,560Wh of usable capacity supports sustained operation well beyond what smaller battery banks can deliver.
12V 200Ah Lithium Battery for RV, Marine & Off-Grid Systems
The CLI200-12 is Canbat’s high-capacity standard deep cycle lithium battery — a Group 4D platform delivering 2,560Wh of usable LiFePO4 energy for larger systems that have outgrown compact battery formats. It is designed for buyers sourcing a high-capacity 12V 200Ah lithium battery for serious RV, marine, off-grid, and inverter applications — one of the most cost-effective ways to deploy substantial lithium energy storage in a familiar Group 4D footprint.
For Canadians sourcing a 12V 200Ah lithium battery, the CLI200-12 ships free with no import duties, is backed by a Canadian technical team, and carries a 10-year warranty. Compatible with all major inverter/charger brands and solar charge controllers that support a LiFePO4 charging profile. For installations in unheated environments or cold climates where charging below 0°C is required, the CLI200-12LT offers the same capacity with an integrated heating system.
Runtime & Performance
The CLI200-12 delivers 2,560Wh of usable energy at 12V nominal — all accessible at 100% depth of discharge on every cycle with stable voltage throughout. A standard Group 4D AGM battery, limited to approximately 50% usable depth of discharge, would need a nominal rating of 400Ah to approach this usable output:
| Application / Load | Average Draw | Estimated Runtime |
|---|---|---|
| LED lighting & low-draw electronics | 5–10A | 20–40 hours |
| 12V fridge + lighting | ~15–20A | ~10–13 hours |
| Inverter — 500W load | ~42A | ~4.7 hours |
| Inverter — 1,000W load | ~83A | ~2.4 hours |
| Inverter — 2,000W load | ~167A | ~1.2 hours |
| Marine house bank (nav, radar, fridge, lights) | ~15–25A | 8–13 hours |
| Large RV overnight (fridge + appliances + lighting) | ~30–40A | ~5–6.5 hours |
Runtime figures are based on 100% usable depth of discharge. The CLI200-12 delivers its full 200Ah on every cycle with stable voltage under sustained high-current loads — including at its 200A continuous discharge rating, critical for inverter systems where voltage sag causes premature shutdowns.

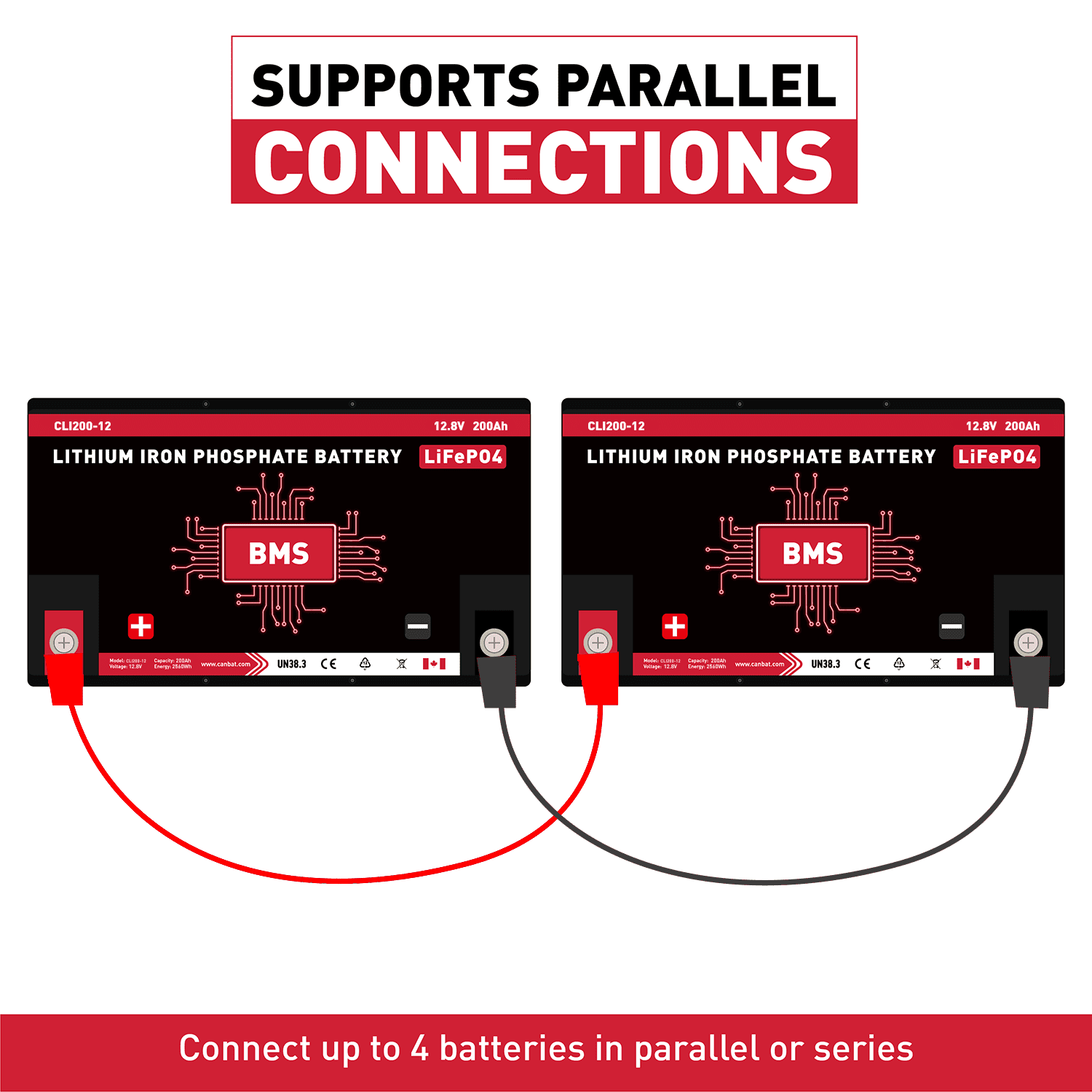

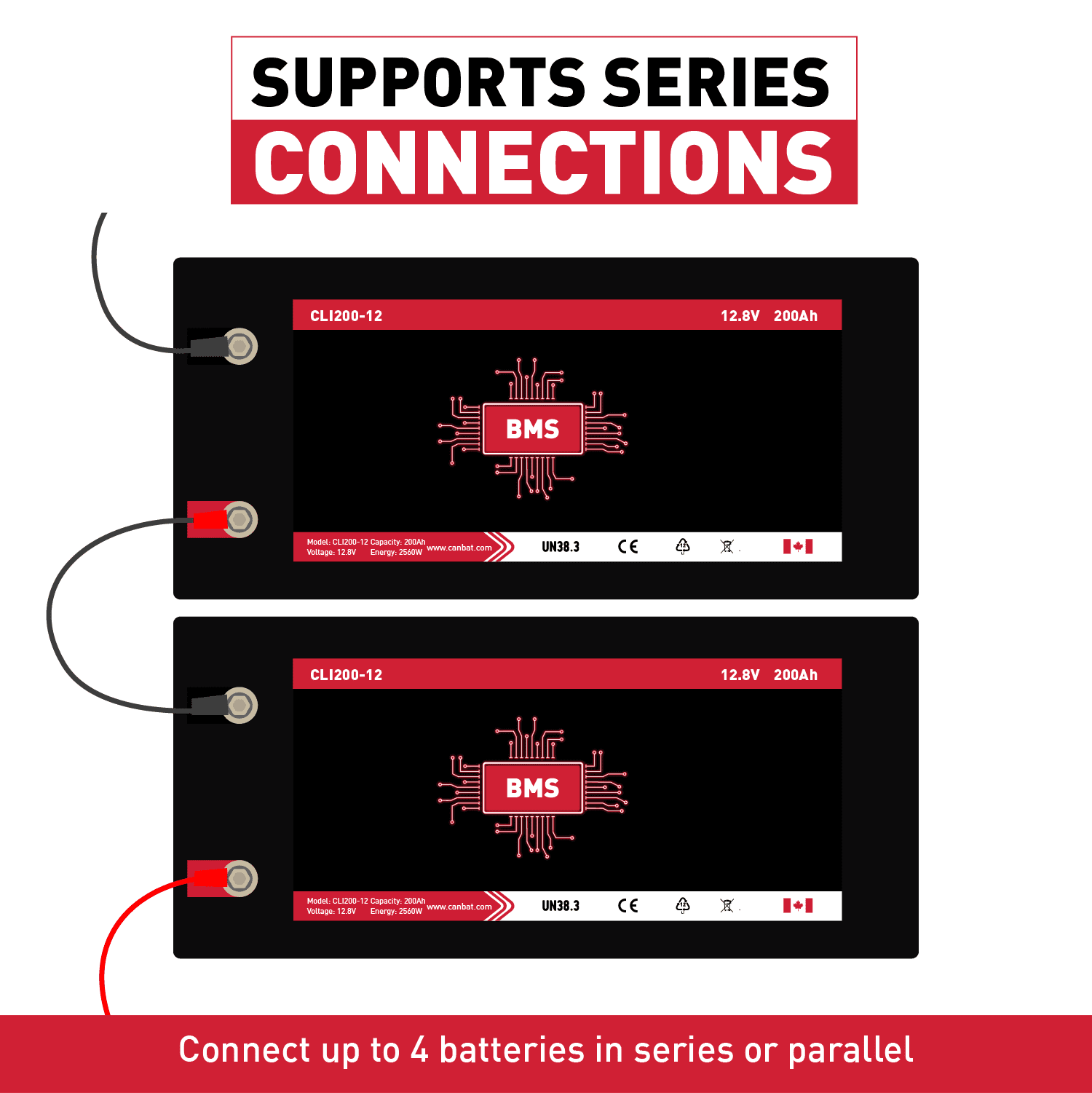

Series & Parallel Expandability
The CLI200-12 supports both series and parallel connections — up to 4 units in either configuration — giving system designers full flexibility to scale voltage and capacity as energy requirements grow.
| Configuration | Units | System Voltage | Total Capacity |
|---|---|---|---|
| Single unit | 1 | 12V | 200Ah / 2,560Wh |
| Parallel x2 | 2 | 12V | 400Ah / 5,120Wh |
| Parallel x3 | 3 | 12V | 600Ah / 7,680Wh |
| Parallel x4 (max) | 4 | 12V | 800Ah / 10,240Wh |
| Series x2 | 2 | 24V | 200Ah / 5,120Wh |
| Series x3 | 3 | 36V | 200Ah / 7,680Wh |
| Series x4 (max) | 4 | 48V | 200Ah / 10,240Wh |
Start with a single unit and expand as your system grows — the CLI200-12’s modular architecture supports the full range of 12V, 24V, 36V, and 48V system configurations without redesigning the installation.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | CLI200-12 |
| Chemistry | Lithium Iron Phosphate (LiFePO4) — Prismatic cells |
| Nominal Voltage | 12V (12.8V nominal) |
| Capacity | 200Ah |
| Energy | 2,560Wh |
| Cycle Life | 3,000–5,000 cycles at 100% DoD |
| Max Continuous Discharge | 200A |
| Peak Discharge | 400A for 3 seconds |
| Max Charge Current | 200A (recommended 100A) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| IP Rating | IP54 — splash and dust resistant |

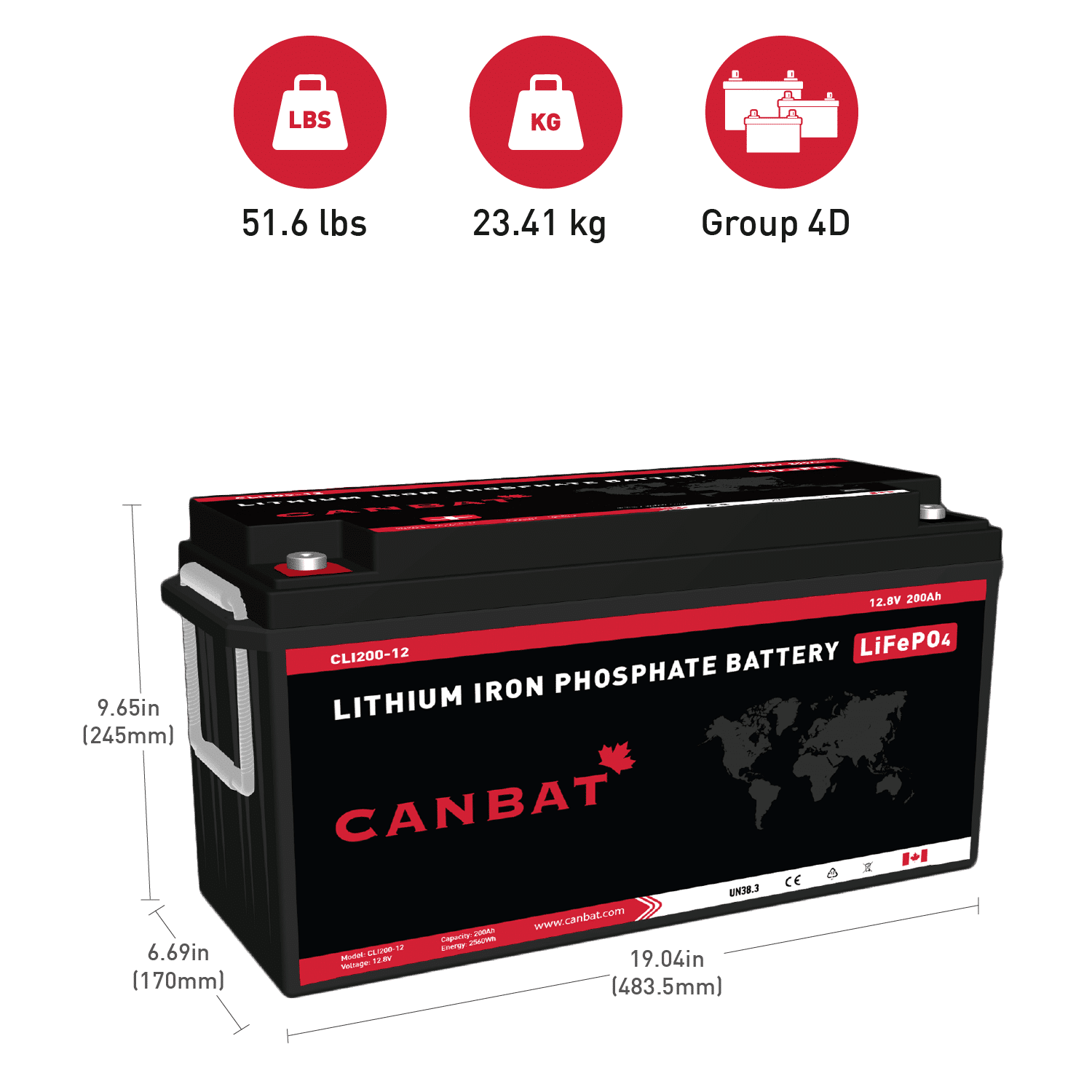

| Weight | 51.6 lbs (23.41 kg) |
| Dimensions (L x W x H) | 484 x 170 x 245 mm / 19.05 x 6.69 x 9.65 in |
| Terminal Type | M8 / 1.25 — bolts included |
| BCI Group Size | 4D |
| Mounting | Upright or on side |
| Parallel Expansion | Up to 4 units (800Ah / 12V maximum) |
| Series Expansion | Up to 4 units (24V, 36V, or 48V systems) |
| BMS Protection | Over-charge, over-discharge, short circuit, over-current, temperature extremes, cell balancing |
| Bluetooth Monitoring | Optional add-on (Canbat BT app — free for iOS and Android) |
| Storage | Store at 80–100% SoC in a cool, dry environment |
| Certification | UL 1642 certified cells |
| Warranty | 10 years |
| Shipping | Free across Canada and USA — no import duties |

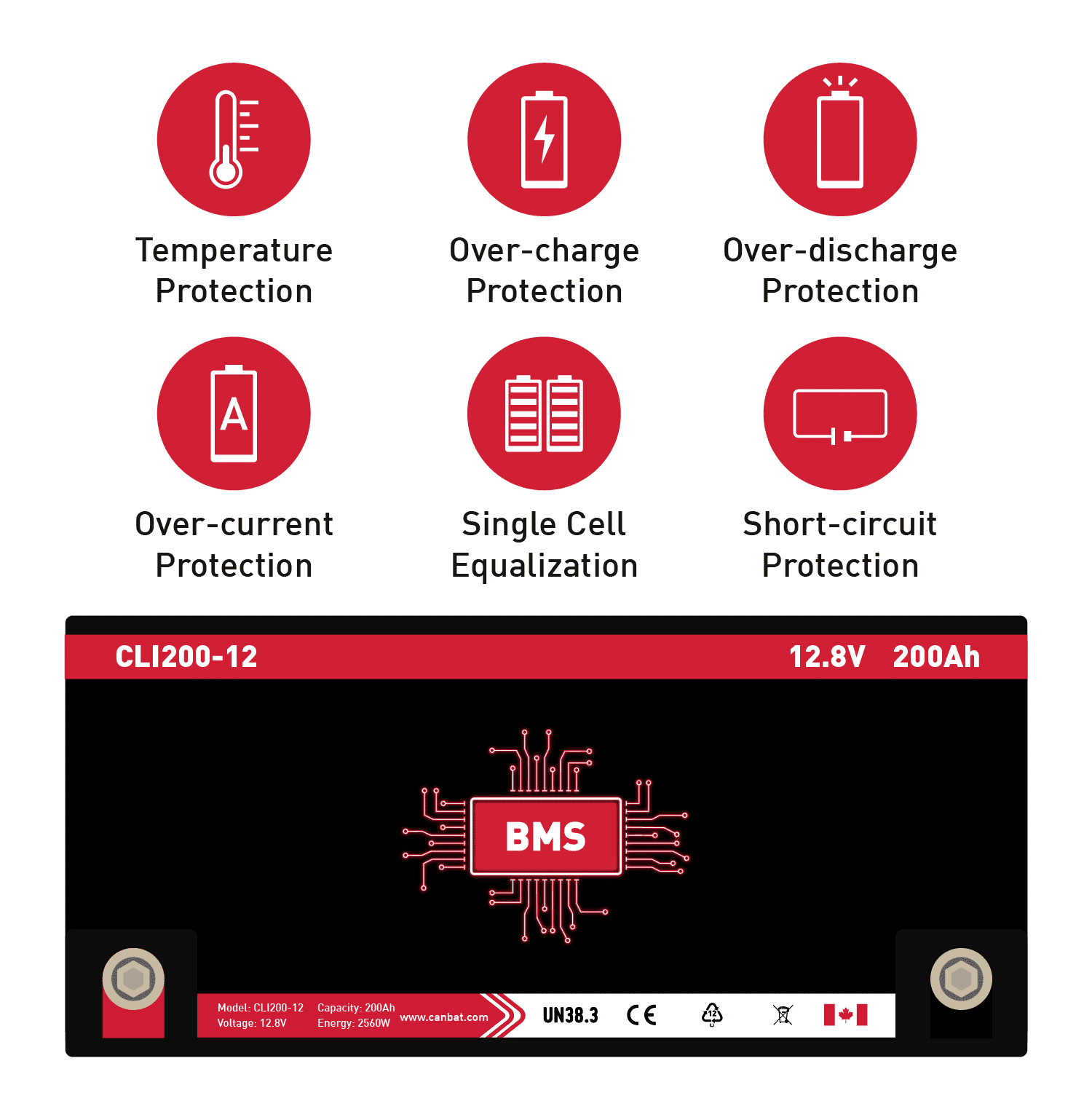

Battery Management System and Bluetooth Monitoring
The CLI200-12’s integrated BMS manages cell-level protection and balancing automatically — no external battery management required.
- Over-discharge protection — prevents cell damage from excessive depth of discharge
- Over-charge protection — disconnects at the correct voltage ceiling
- Short circuit and over-current protection — responds within milliseconds
- High-temperature cutoff — protects cells during charging in hot environments
- Cell balancing — maintains consistency across the prismatic cell groups over thousands of cycles

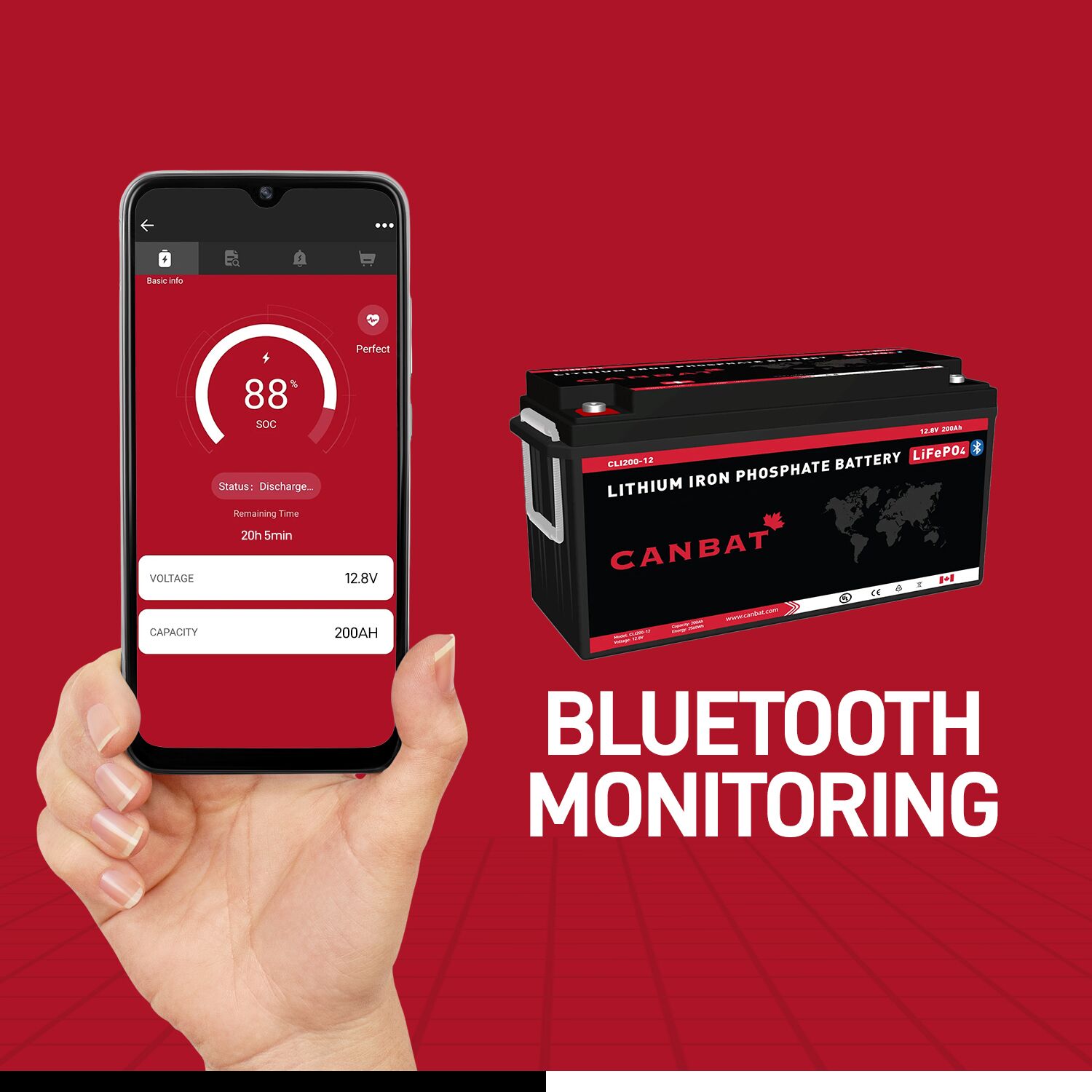

The optional Bluetooth add-on connects the battery to the free Canbat BT app, available for iOS and Android. Monitor state of charge, voltage, current, and cell temperature in real time — useful for tracking system performance in RV, marine, and off-grid installations where direct battery access is limited.
System Compatibility and Installation
The CLI200-12 is compatible with any inverter/charger, solar charge controller, or AC charger that supports a LiFePO4 charging profile. When replacing lead-acid batteries, verify that the charging system’s voltage settings are configured for lithium — incorrect lead-acid charge profiles will undercharge the battery or stress the cells over time.
For alternator charging in vehicles or vessels, a DC-DC charger is recommended to deliver correct LiFePO4 charging parameters and protect the alternator from the battery’s high charge acceptance rate. M8 terminals with bolts are included. The battery installs upright or on its side in any standard Group 4D tray or enclosure.
For system sizing assistance or help configuring a multi-battery bank, Canbat’s Canadian technical team is available by phone, email, and live chat.
Canadian Supply, Support and Warranty
Canbat is a Canadian battery manufacturer. The CLI200-12 ships free to any address in Canada and the USA. Canadian and US buyers pay no import duties and face no cross-border complications on their orders.
The CLI200-12 is backed by a 10-year warranty and supported by a Canadian technical team available by phone, email, and live chat. Warranty claims can be submitted directly with Canbat — with no overseas support queues and no runaround.
