Description

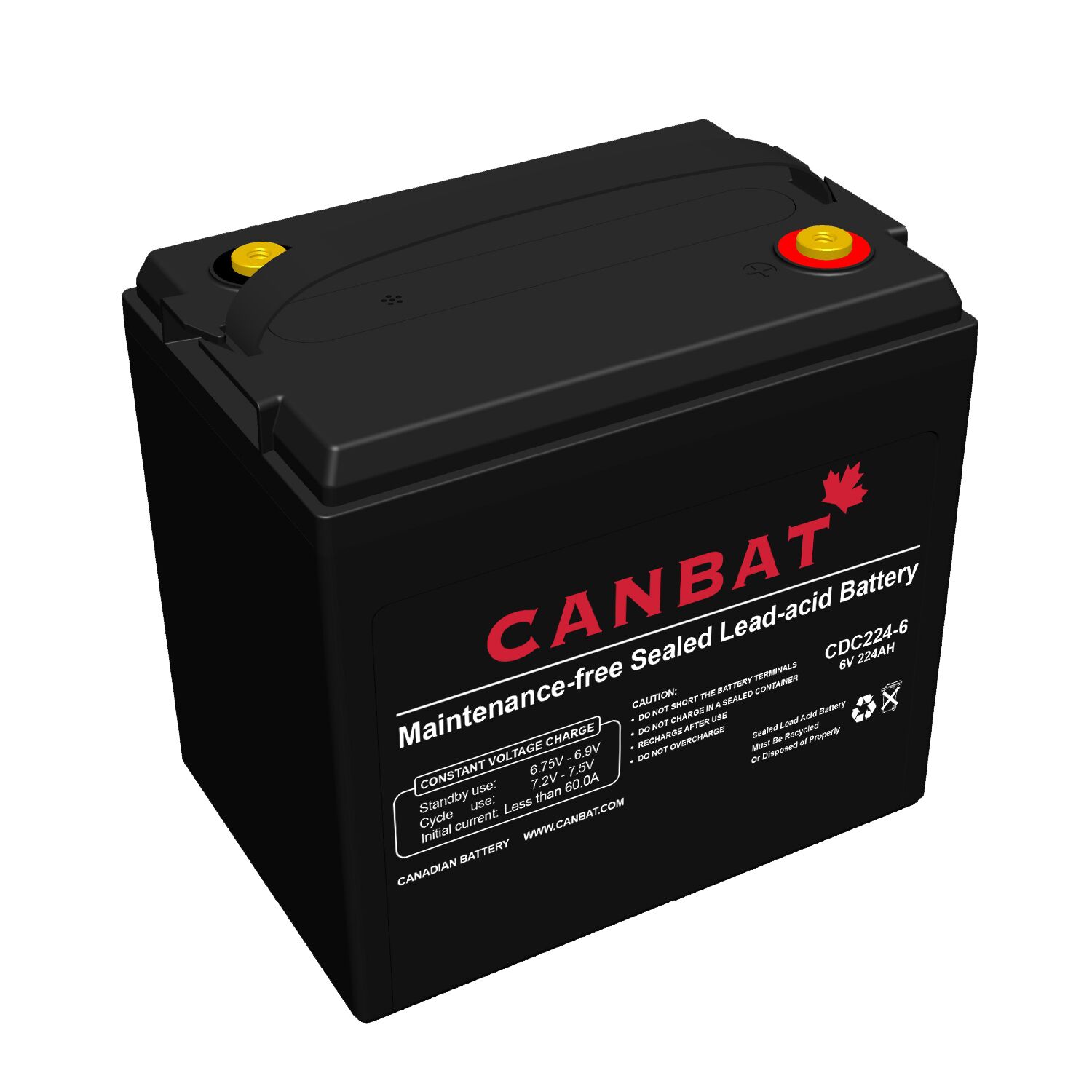

CDC224-6 | 6V 224Ah GC2 Deep Cycle AGM Battery | 1,344Wh | Group GC2 | T11 (M8 Threaded Insert) | 67.25 lbs (30.5 kg) | Carbon AGM-GEL | UL 1989 Certified
The Canbat 6V 224Ah GC2 Deep Cycle AGM Battery is a premium carbon-enhanced AGM-GEL battery engineered for demanding deep-cycle applications including golf carts, floor scrubbers, RV and marine house power, solar energy storage, and off-grid power systems. Built to BCI Group GC2 dimensions and rated at 224Ah and 1,344Wh, the CDC224-6 is dimensionally compatible with and commonly used as a maintenance-free AGM upgrade from flooded GC2 golf cart batteries such as the Trojan T-105 — eliminating watering and acid spills while greatly reducing routine gassing under normal operating conditions, and delivering superior cycle life. Featuring advanced carbon AGM-GEL technology, a self-discharge rate below 2% per month, and the ability to install in any orientation, the CDC224-6 provides dependable, maintenance-free deep-cycle performance for the most demanding GC2 applications. Certified to UL 1989.
Typical Applications
The CDC224-6 6V 224Ah GC2 Deep Cycle AGM Battery is designed for high-demand cyclic discharge applications where batteries are regularly discharged and recharged as part of normal system operation. Rated at 224Ah at 6V and built to BCI Group GC2 dimensions, this 6V 224Ah GC2 Deep Cycle AGM Battery is a maintenance-free upgrade from flooded GC2 batteries in golf carts, electric utility vehicles, floor scrubbers, sweepers, aerial work platforms, RV house battery systems, marine house power, solar energy storage systems, off-grid power installations, and industrial cyclic equipment. The CDC224-6 is commonly used as a maintenance-free AGM alternative to flooded GC2 golf cart batteries such as the Trojan T-105 in golf cart battery banks, floor cleaning equipment, renewable energy systems, and deep-cycle industrial applications.
UL 1989 Certification
UL 1989 certification provides third-party verification of battery safety and performance requirements for sealed lead acid batteries. The CDC224-6 is certified to UL 1989, the Underwriters Laboratories standard covering electrical performance, mechanical integrity, and safety requirements including overcharge tolerance and short circuit protection. Certification is issued following independent third-party laboratory evaluation — not manufacturer self-declaration.
Canbat maintains UL 1989 certification across its sealed lead acid battery lineup, including the CDC deep cycle series.
Carbon AGM-GEL Deep Cycle Construction
The CDC224-6 6V 224Ah GC2 Deep Cycle AGM Battery uses advanced carbon-enhanced AGM-GEL construction engineered for extended deep-discharge cycling. The addition of carbon to the negative plate improves charge acceptance and reduces sulfation under partial state-of-charge conditions, while the AGM-GEL electrolyte system delivers stronger cycle performance than standard general-purpose AGM batteries. This combination makes the CDC224-6 particularly well-suited to demanding cyclic duty in golf carts, floor scrubbers, and renewable energy storage.
The sealed, valve-regulated, non-spillable design eliminates the watering and acid spills associated with flooded GC2 batteries while greatly reducing routine gassing under normal operating conditions, and permits installation in any orientation. Unlike flooded golf cart batteries that require regular electrolyte maintenance, the CDC224-6 is completely maintenance-free, with a self-discharge rate below 2% per month allowing storage up to six months before a refresh charge is required.
Cycle Life & Depth of Discharge
The CDC224-6 6V 224Ah GC2 Deep Cycle AGM Battery is engineered for extended deep-discharge cycling, with cycle performance dependent on depth of discharge, charging profile, operating temperature, and maintenance practices. The carbon AGM-GEL construction delivers higher cycle life than standard general-purpose AGM batteries, particularly at shallower discharge depths — operating at 30% depth of discharge (DoD) delivers substantially more cycles than operation at 100% DoD.
| Depth of Discharge (DoD) | Approximate Cycle Life |
| 30% DoD | ~2,500 cycles |
| 50% DoD | ~1,600 cycles |
| 100% DoD | ~400 cycles |
Technical Specifications
| 6V 224Ah GC2 Deep Cycle AGM Battery — Specifications (CDC224-6) | |
| Part Number | CDC224-6 |
| Nominal Voltage | 6V |
| Rated Capacity (20hr) | 224Ah |
| Energy | 1,344Wh |
| Battery Group Size | BCI Group GC2 |
| Terminal Type | T11 (M8 Threaded Insert) |
| Technology | Carbon AGM-GEL |
| Container Material | ABS |
| Max Discharge Current (5s) | 2,000A |
| Internal Resistance | Approx. 1.4mΩ |
| Cycle Life (30% DoD) | ~2,500 cycles |
| Self Discharge | <2% per month at 25°C |
| Operating Temp — Discharge | -4°F to 140°F (-20°C to 60°C) |
| Operating Temp — Charge | -4°F to 122°F (-20°C to 50°C) |
| Storage Temp | -4°F to 140°F (-20°C to 60°C) |
| Certification | UL 1989 |

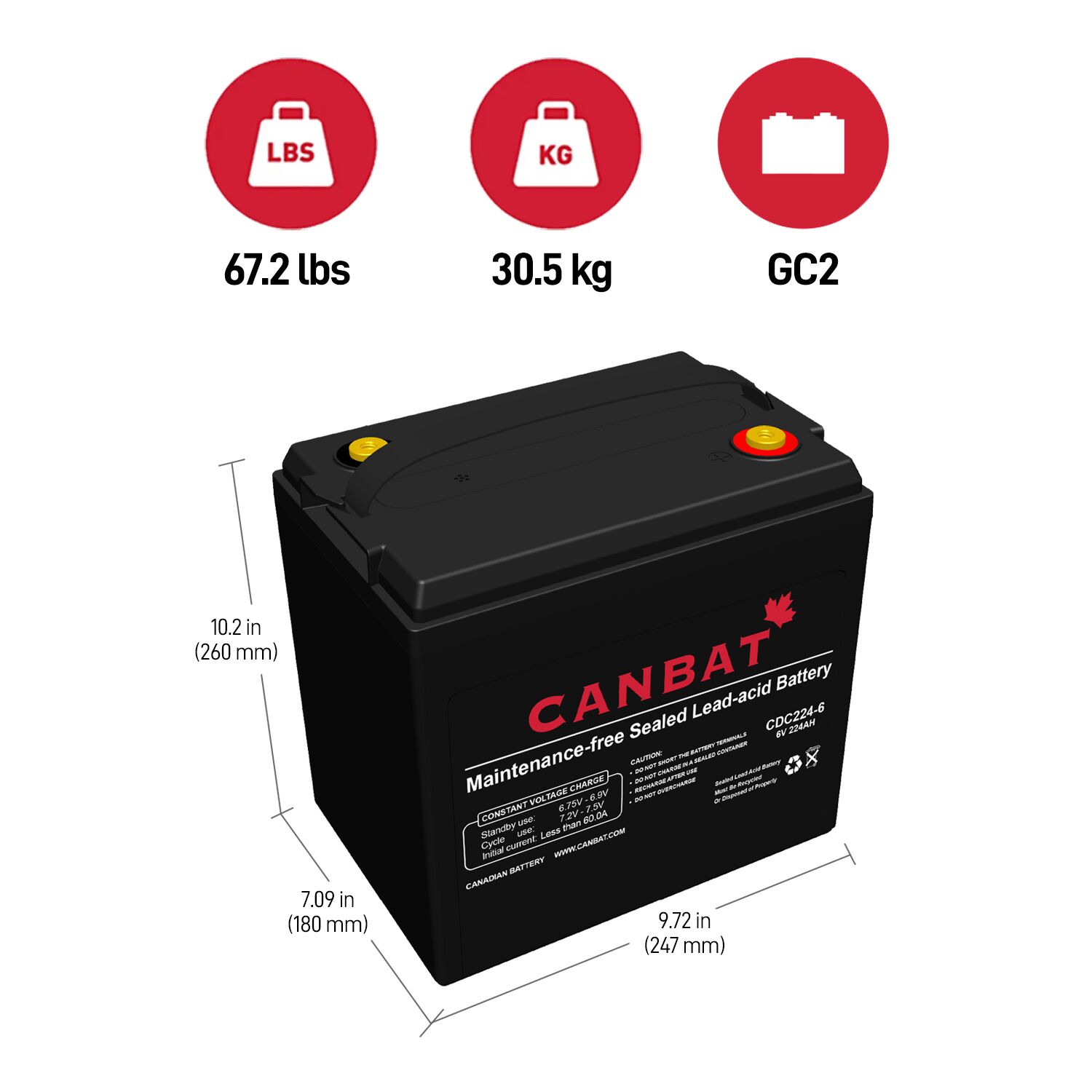

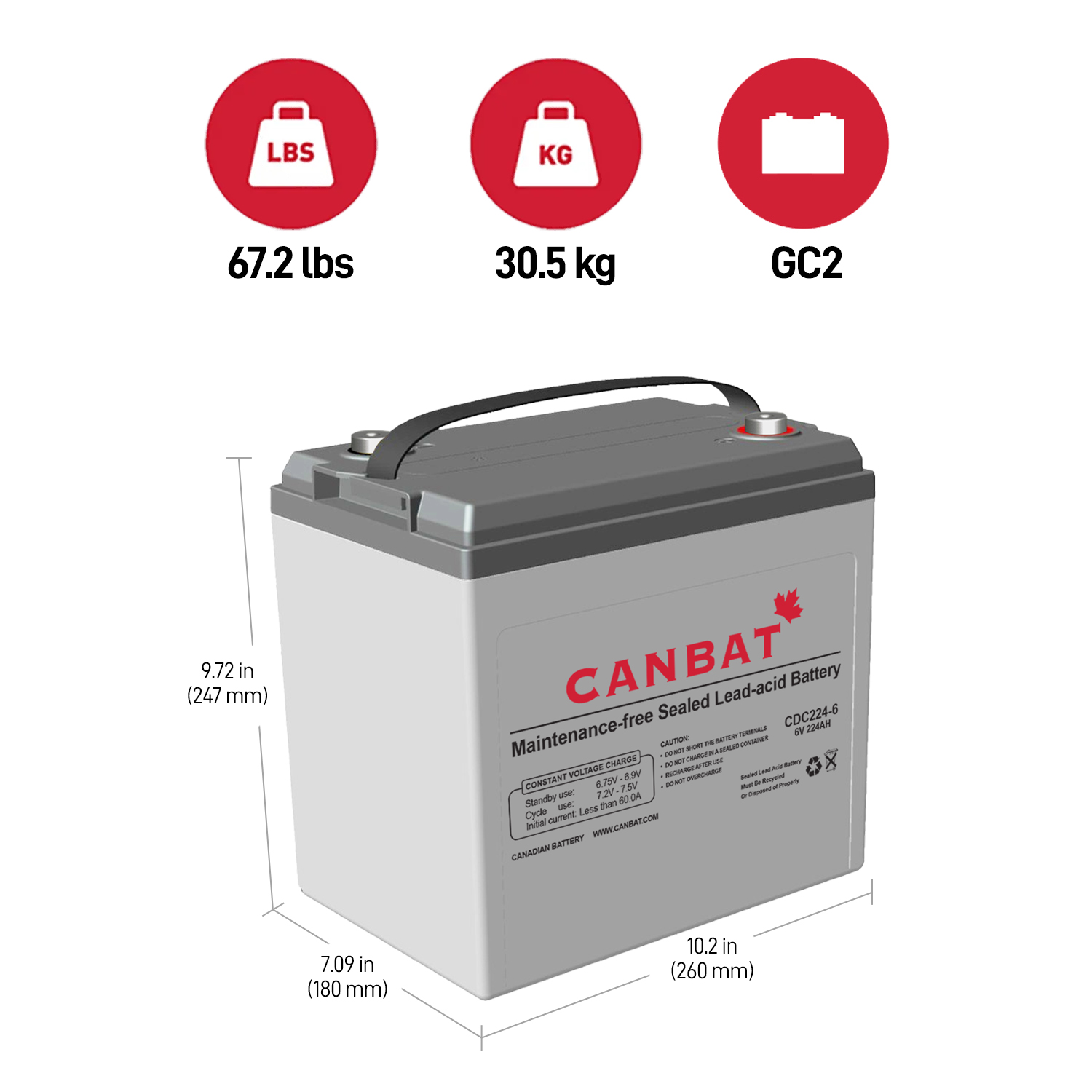

Dimensions & Weight
| Physical Specifications | |
| Length | 10.24 in (260 mm) |
| Width | 7.09 in (180 mm) |
| Height | 9.72 in (247 mm) |
| Total Height (with terminals) | 9.96 in (253 mm) |
| Approx. Weight | 67.25 lbs (30.5 kg) |
Canadian-Owned Battery Manufacturer | 24/7 Technical Support | UL 1989 Certified | Nationwide Distribution
