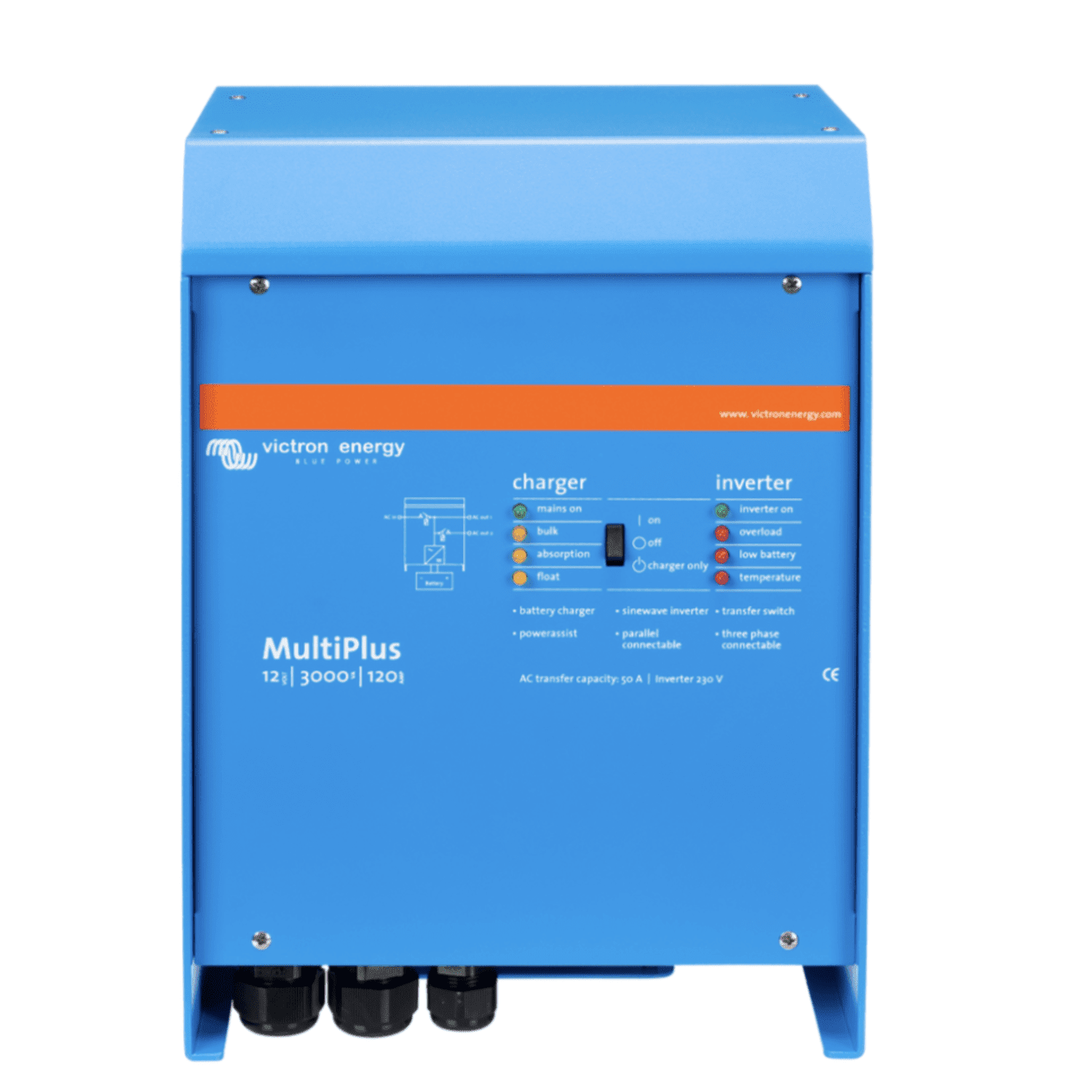

MultiPlus 12/3000/120-16 230V VE.Bus

           PMP122300001

• THIS IS  230 VOLT UNIT AND IS NOT RETURNABLE.  It can be programmed to be 60 Hz in the software but the voltage cannot be changed.  All the features of a sine wave inverter and charger in one compact enclosure. UPS functionality with a seamless transfer from external AC to inverter supply. This new model is more compact in size and features a 50 amp transfer switch. Ideal for marine or alternative energy installations.   16 AMP TRANSFER SWITCH
  • Multi-function inverter/charger with intelligent power management
  • 230 Volt 50 Hz output at 3000 VA continuous
  • 16 Amp transfer switch
  • Works as a UPS system for uninterruptible power
  • Parallel capability up to 18 kVA when used with multiple units
  • Three-phase capable when three units are connected together
  • Split phase capable when two units are connected together to produce 120/240 volts
  • Charger power control option for use when incoming power is limited (requires external remote panel)
  • Power assist function to assist in starting large loads when running from generator power
  • Peak power 6000 Watts
  • Max efficiency 93%
  • Four-stage adaptive charging – charger can be programmed for different battery types.  A temperature sensor is included.
  • Dual bank charging (120 amps for the main bank and 4 amps for the auxiliary bank)
  • Easy setup with dipswitches or a computer (computer setup requires Mk3 USB interface)
  • Now with 5-year warranty
  • Read about Multi Plus Magic on the Victron Blog
  • Datasheet
