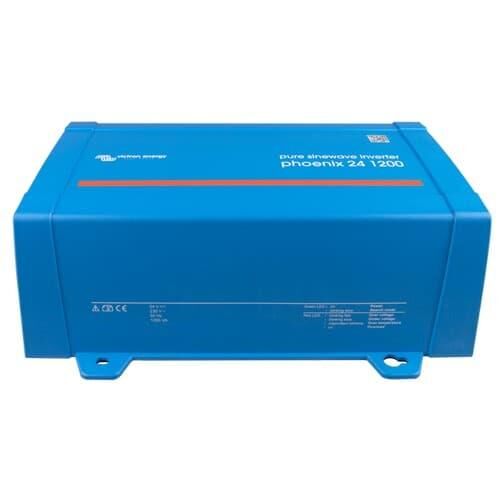

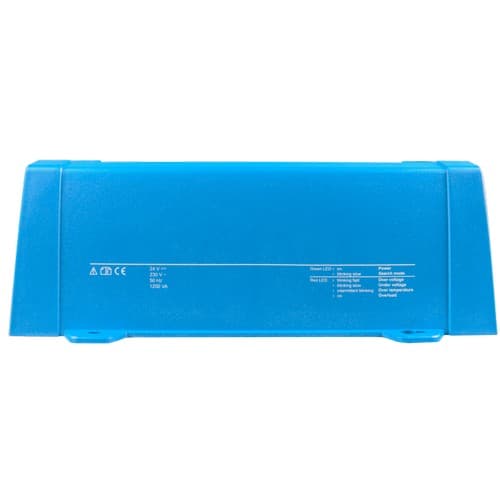

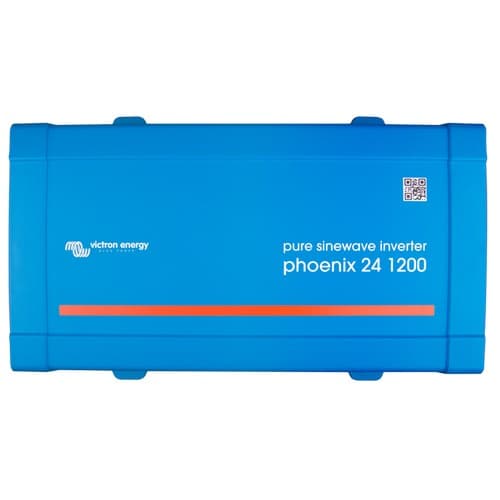

Phoenix Inverter 24/1200 120V VE.Direct NEMA GFCI

PIN242122510

The Victron Energy Phoenix 24V 1000W Inverter is a 1200VA 120V AC inverter that is designed for both residential and professional use.

The Phoenix range of inverters is suitable for a wide range of applications. This 24V 1000W Inverter can be used with Canbat lead-acid and lithium (LIFEPO4) batteries.

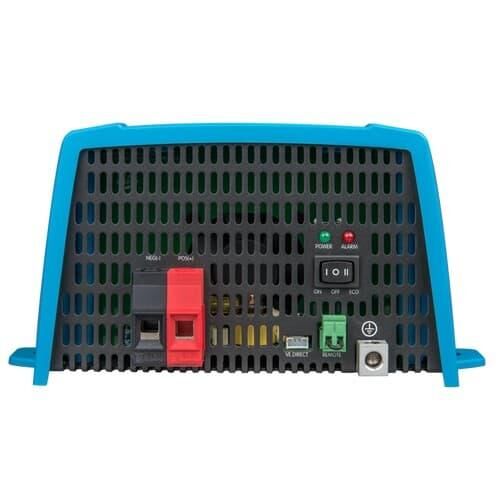

VE.Direct communication port

The VE.Direct port can be connected to:
• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook’s and other devices
(VE. Direct Bluetooth Smart dongle needed)

Fully configurable

• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 – 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring

• In- and output voltage, % load and alarms

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or
high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset
value (min load: 15W). Once in standby, the inverter will switch on for a short period (adjustable,
default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
