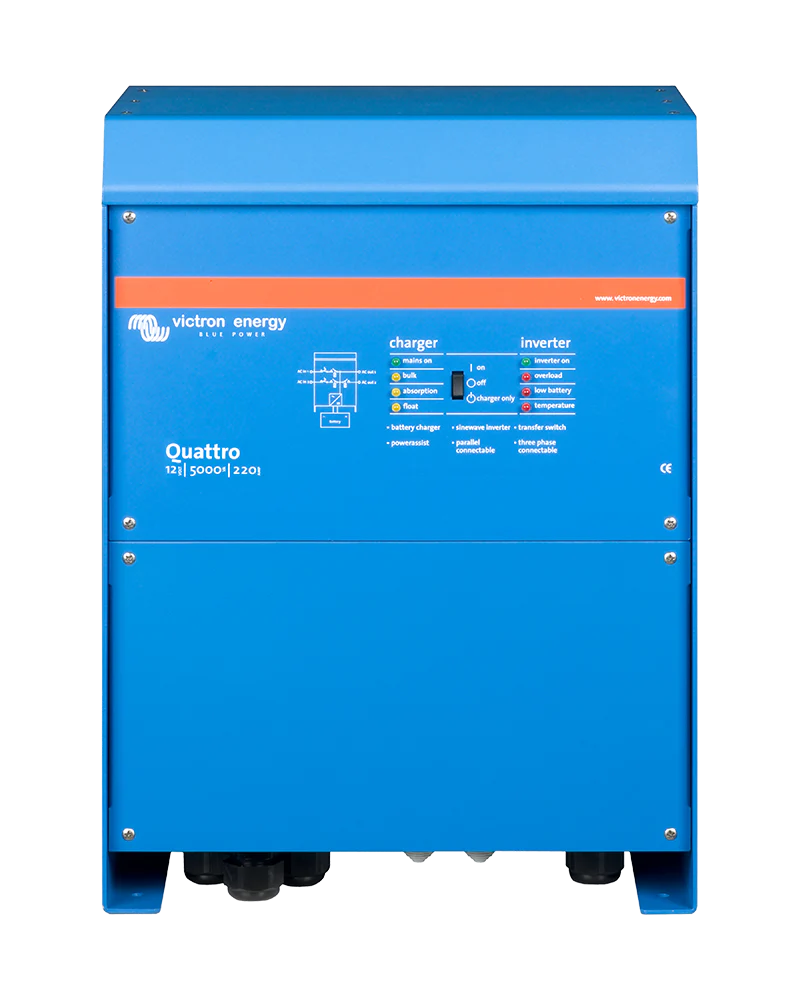

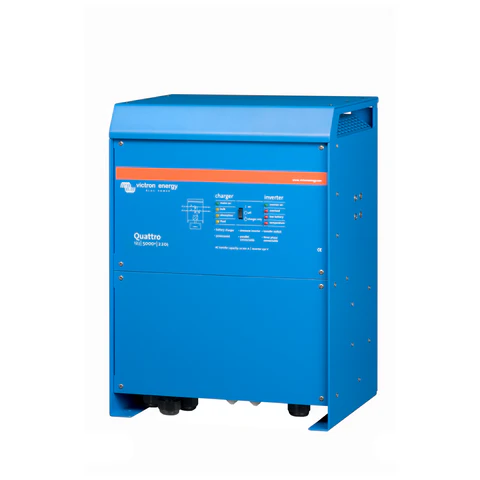

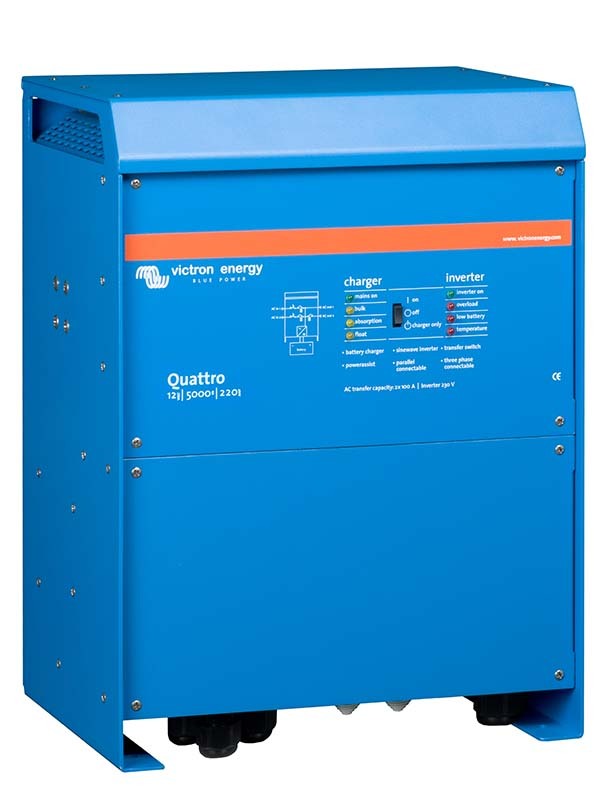

Victron Energy Quattro 12/5000/220-100/100 120V VE.Bus | QUA125021100
The Victron Energy Quattro 12/5000/220-100/100 120V VE.Bus is a versatile and robust inverter/charger designed for demanding off-grid, marine, RV, and backup power applications. Combining a pure sine wave inverter, adaptive battery charger, and high-speed AC transfer switch, it ensures uninterrupted power supply and efficient energy management.
🔌 Dual AC Inputs & Two AC Outputs
-
Dual AC Inputs: Automatically connects to the active source between two independent AC inputs (e.g., shore power and generator), ensuring continuous power availability.
-
Two AC Outputs:
-
Main Output: Features no-break functionality, switching to inverter power in less than 20 milliseconds during grid failures, preventing disruptions to sensitive electronics.
-
Secondary Output: Active only when AC is available on one of the inputs, ideal for loads that should not discharge the battery, such as water heaters.
-
⚡ Powerful Inverter Performance
-
Continuous Output Power: 5000 VA / 4000 W at 25°C.
-
Peak Power: 10,000 W.
-
Output Voltage: 120 VAC ± 2%.
-
Frequency: 60 Hz ± 0.1%.
-
Pure Sine Wave Output: Ensures compatibility with sensitive electronics and appliances.
🔋 Advanced Battery Charging
-
Battery Voltage: 12 V DC.
-
Charger Current: 100 A per AC input.
-
Adaptive Charging: Four-stage charging algorithm for optimal battery performance and longevity.
-
Battery Compatibility: Suitable for lithium, AGM, and lead-acid batteries.
-
Additional Features: Includes a 4 A charger for a start battery and a battery temperature sensor for enhanced charging control.
🚀 PowerAssist & PowerControl Technologies
-
PowerAssist: Supplements limited AC sources by adding inverter power when needed, preventing overloads.
-
PowerControl: Manages battery charging to prevent overloading generators or shore power connections by adjusting the charge current based on other AC loads.
🌐 System Integration & Remote Monitoring
-
VE.Bus Communication: Enables parallel and three-phase operation, allowing up to six Quattros to operate in parallel for increased power output.
-
Remote Monitoring: When paired with a GX device (e.g., Cerbo GX), monitor and control your system locally or remotely via the free Victron Remote Management (VRM) portal.
-
Configuration Tools: Use VE.Bus Quick Configure and VE.Bus System Configurator software for system setup and customization.
🛠️ Technical Specifications
-
Model Number: QUA125021100
-
Input Voltage Range: 9.5 – 17 V DC
-
AC Input Voltage Range: 90 – 140 V AC
-
AC Input Frequency: 45 – 65 Hz
-
Maximum Feed-Through Current: 2 x 100 A
-
Dimensions (H x W x D): 18.5 x 14 x 11.2 inches (47 x 35.5 x 28.5 cm)
-
Weight: 75 lbs (34 kg)
-
Operating Temperature: -40°C to +65°C (fan-assisted cooling)
-
Protection: Short circuit, overload, battery voltage, and temperature protections.
🌍 Certifications & Compliance
-
Safety Standards: Complies with UL, IEC, and other international standards.
-
Warranty: 5-year limited warranty with options for extension.
🏠 Ideal Applications
-
Off-Grid Homes and Cabins: Reliable power supply for remote locations.
-
RVs and Camper Vans: Efficient energy management for mobile lifestyles.
-
Marine Vessels: Stable power for boats and yachts.
-
Backup Power Systems: Uninterrupted power during grid outages.
-
Industrial and Commercial Use: Scalable solutions for various power needs.
