Description
SCC145110410

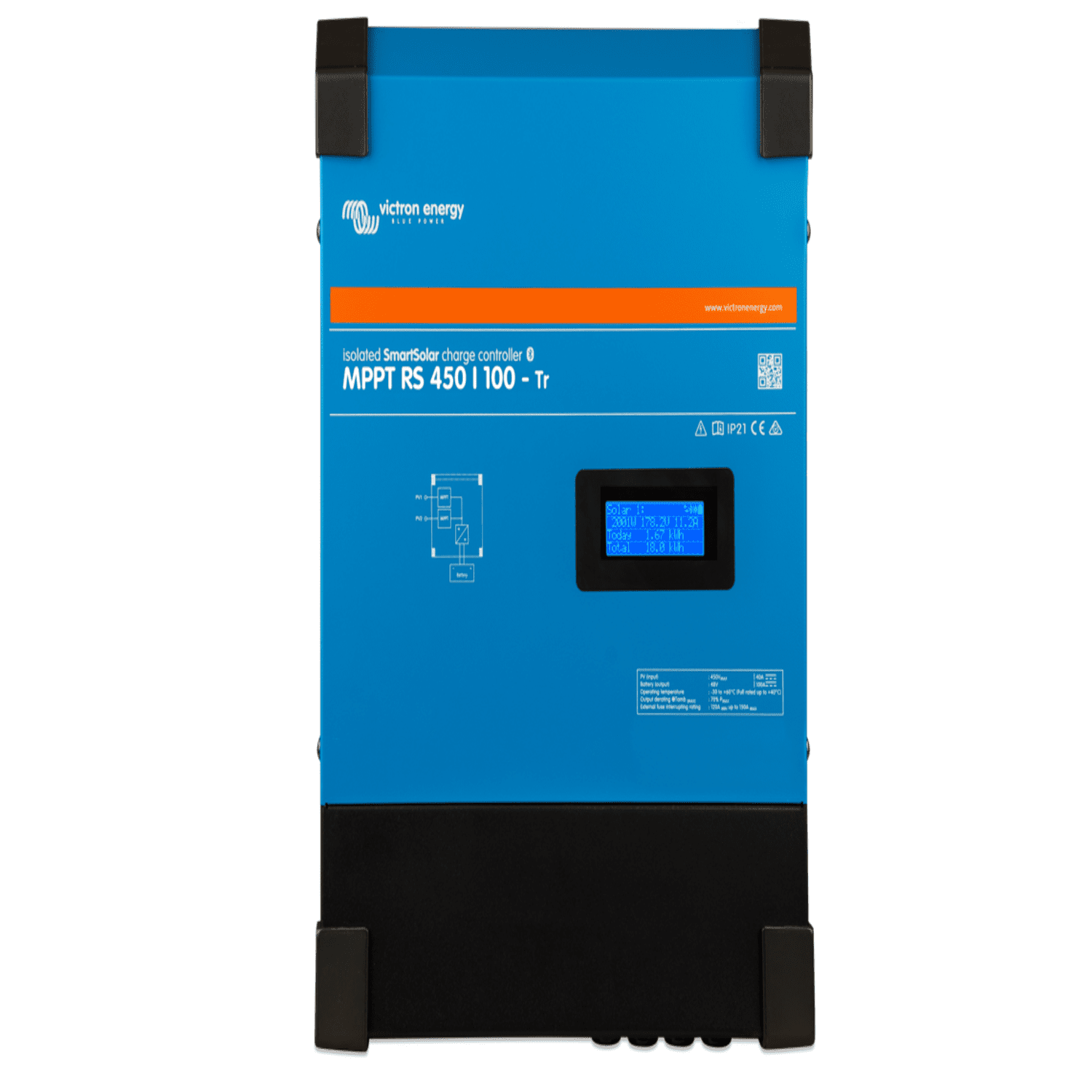

SMARTSOLAR MPPT RS 450/100-TR
A 450V 100A solar charge controller that gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximizes this energy harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulfated or otherwise damaged. This 450V capable 100A charge controller works well with all types of Canbat batteries including Lithium Iron Phosphate, Sealed Lead Acid and Lead Carbon.
Key Features & Benefits
Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
The MPPT RS SmartSolar is a 48 V Solar charge controller with up to 450 VDC PV input and either 100 A, or
200 A output. It is used in on-grid and off-grid solar applications where maximum battery charging power
is required.
Multiple independent MPPT tracking inputs
With multiple MPPT trackers, you can optimize your solar panel design for maximum performance for your
specific location.
Isolated PV connections for additional safety
Full galvanic isolation between PV and battery connections provides additional overall system safety.
Wide MPPT voltage range
80 – 450 VDC PV operating range, with a 120 VDC PV startup voltage.
Light weight, efficient and quiet
Thanks to high-frequency technology and a new design this powerful charger weighs only 7.9 kg for the
100 A model. In addition to this, it has excellent efficiency, low standby power, and a very quiet
operation.
Display and Bluetooth
The display reads battery, and controller parameters. The parameters can be accessed
with a smartphone or other Bluetooth-enabled device. In addition, Bluetooth can be used to
set up the system and to change settings with VictronConnect.
PV Isolation resistance monitoring for peace of mind at higher voltages
The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation
of the panels to unsafe levels.
VE.Can and VE.Direct port
For connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can
allows for up to 25 units to be connected together in parallel and synchronize their charging.
I/O Connections
Programmable Relay, temperature sensor, auxiliary, digital input, and voltage sensor connections. The
remote input can accept the Victron small BMS and other BMS with an allow-to-charge signal.
You can read more about this Victron 450V 100A charge controller here.
Carl A. –
WOW!
This is a great machine. Got one Victron 450V 100A solar charge controller, and it works absolutely amazing. it is a bit pricey but if you are setting up a huge solar system or other big projects involving solar panels, this is it. It has an in built display, and Bluetooth where it gives all the vital information. It has many safety features, its dependable and one you can count on to work for years without any hitches. Glad I went with this option.
