Description

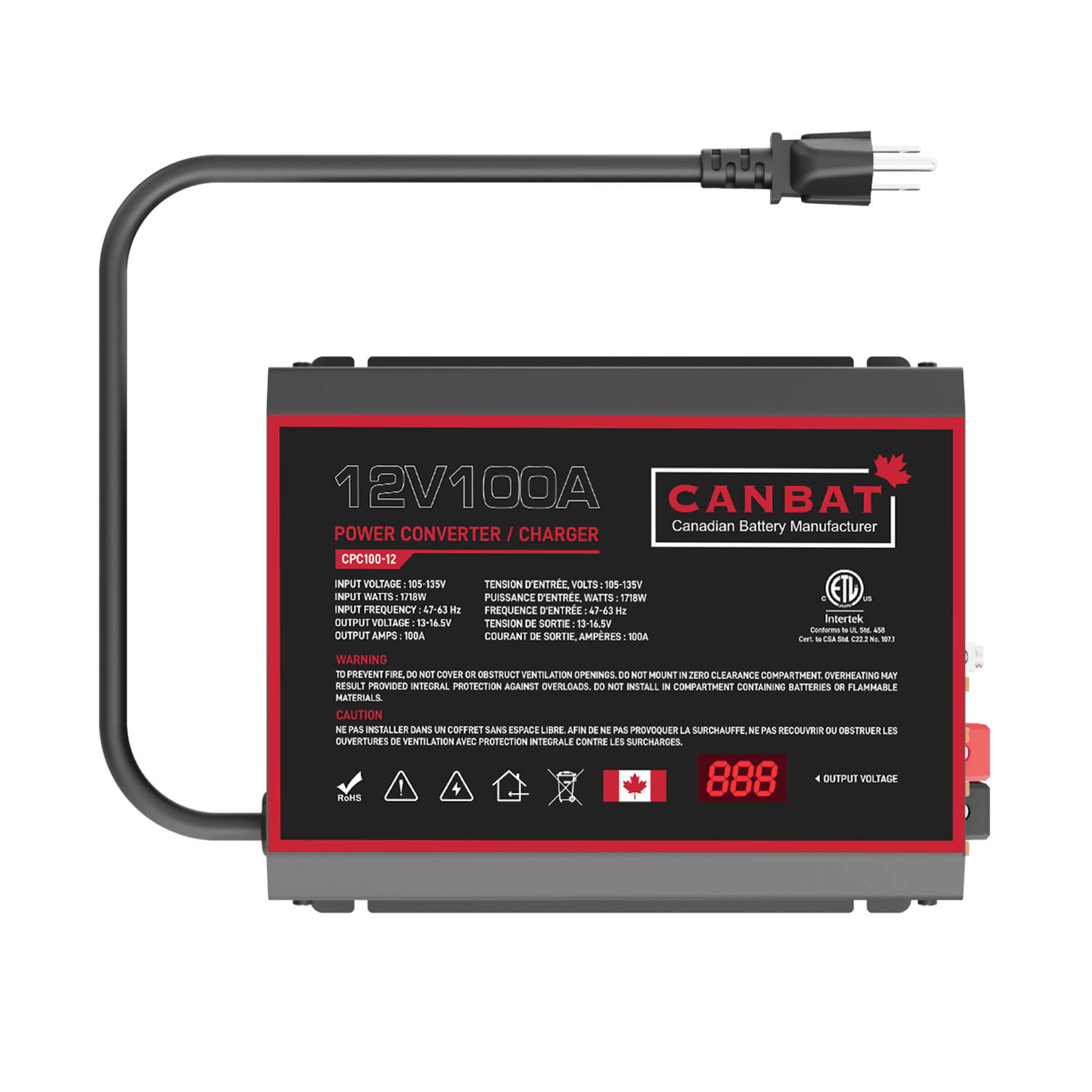

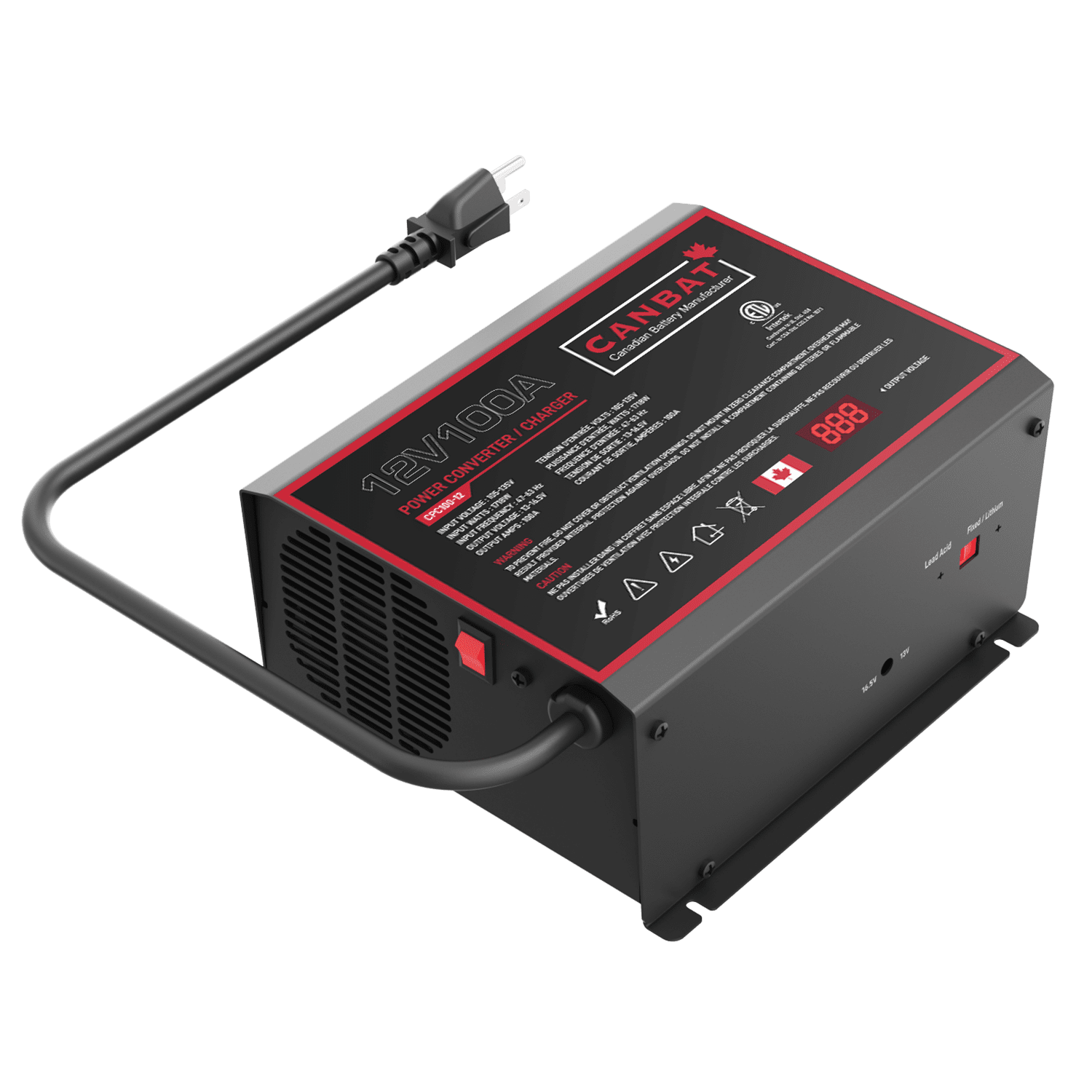

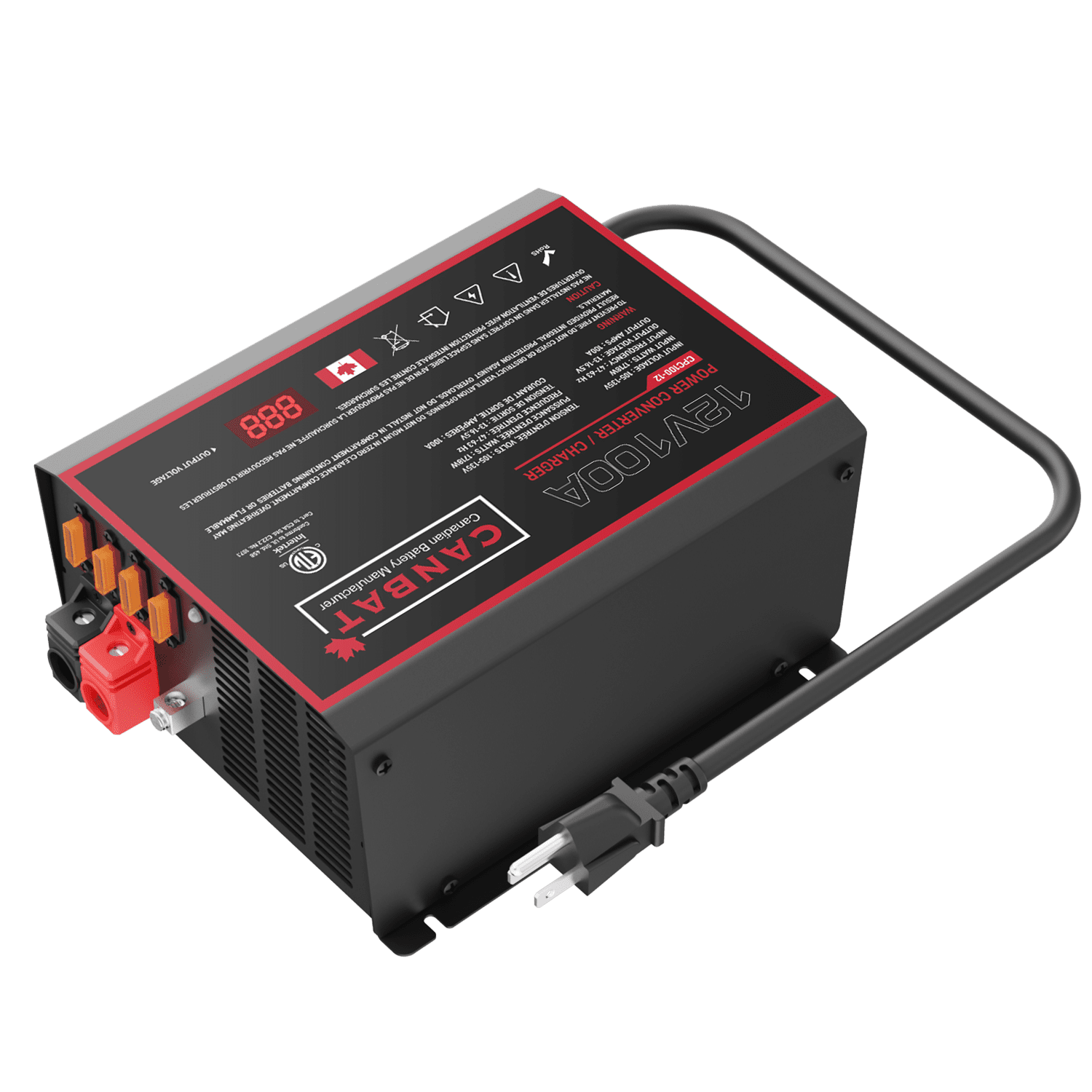

12V 100A POWER CONVERTER CHARGER
Canbat power converter chargers offer reliable AC/DC power conversion for a wide range of professional and recreational applications. The 12V 100A converter charger is a high-performance unit commonly used in RVs to efficiently power 12V DC systems, such as lights, water pumps, and other essential appliances, while simultaneously charging the RV’s battery bank. Due to its popularity in the RV market, this product is often referred to as a 12V 100A RV converter charger. Canbat 12V power converter chargers are compatible with LiFePO4 batteries, sealed lead-acid batteries and lead-carbon batteries.
ADJUSTABLE VOLTAGE OUTPUT
This 100A 12V power converter charger has two factory charge settings: Lead-Acid and LiFePO4/Fixed. The Lead-Acid setting can be used to recharge lead-acid and lead-carbon batteries. The factory settings for the Lead-Acid option are 14.4V / 13.6V and 13.2V. The factory setting for LiFePO4/Fixed is 14.4V, which is the required charging voltage for Canbat 12V LiFePO4 batteries and most other lithium battery brands. If your battery requires different voltage charge settings, you can use the built-in voltage regulator to adjust the voltage to meet its specific requirements. This 100A RV power converter also features a built-in voltage LED display, which shows the output charging voltage. You do not need a multimeter to check the output voltage. When the converter charger is not charging, it’ll show the voltage of your battery’s bank.
QUALITY & SAFETY
All Canbat RV power converter chargers are ETL-certified, conforming to American UL and Canadian CSA standards.
This 12V converter charger has many Built-in protection features, including:
1. Proportional Fan Control
2. Reverse Polarity Protection
3. Overload Protection
4. Thermal Protections
5. Low Voltage Protection
Proportional Fan Control ensures whisper-quiet operation by activating the fan only when necessary and at low speeds, eliminating any sudden or disruptive start-up noise. External reverse polarity protection safeguards the unit in case of incorrect battery connections.
POWER SWITCH INDICATOR
FAST CHARGER

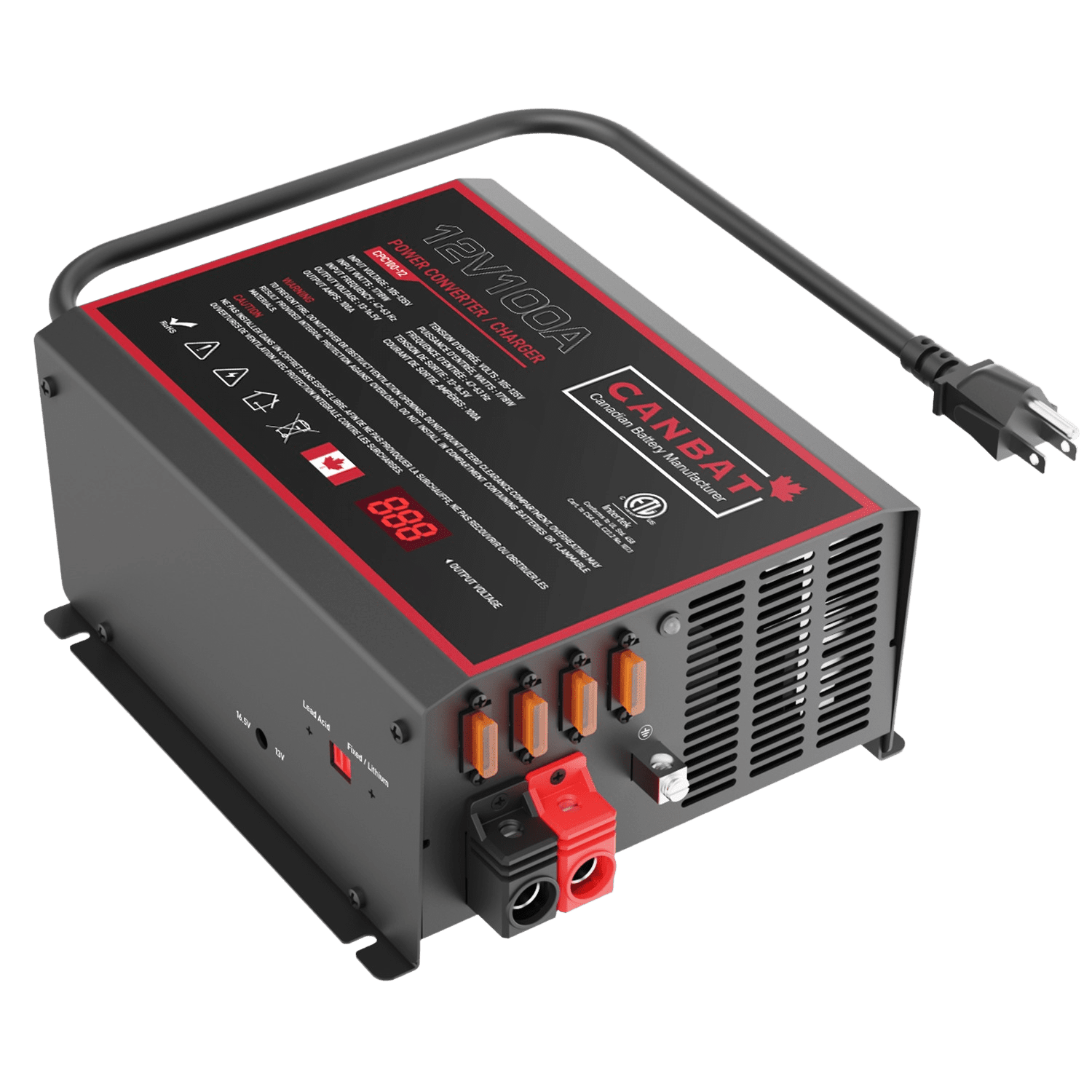

One of the main advantages of LiFePO4 batteries is that they can charge much faster than sealed lead-acid and sealed lead-carbon batteries. With this Canbat highly efficient 12V RV lithium converter charger, you can charge your battery from 0% to 100% in as quickly as one hour, depending on the size of the battery you have. This CPC100-12 model charges at a maximum current of 100A. If you need a smaller RV lithium converter charger, Canbat offers a wide selection (see below).
Canbat RV 12V converter chargers are designed to meet North American power standard 120VAC (108-132VAC). We will soon release our European 240V power converters.
TECHNICAL FEATURES
Specification of Canbat 12V Power Converter Chargers available in Canada and the US.| Canbat offers five power converter charger models designed for 12V battery banks. These versatile chargers are compatible with LiFePO4, lead-acid, and lead-carbon batteries, providing flexible solutions for diverse energy storage needs. Click the image to discover more details. |  | | | | |
| DC Output Voltage (No Load) approx | 14.4/13.6/13.2V | 14.4/13.6/13.2V | 14.4/13.6/13.2V | 14.4/13.6/13.2V | 14.4/13.6/13.2V |
| Output Voltage Tolerance (No Load) | + / - 0.7% | + / - 0.7% | + / - 0.7% | + / - 0.7% | + / - 0.7% |
| Output Amperage, Max Continuous | 35Amps | 45Amps | 55Amps | 75Amps | 100Amps |
| Output Voltage (Full Load) approx | >13.4V (DC) | >13.4V (DC) | >13.4V (DC) | >13.4V (DC) | >13.4V (DC) |
| Maximum Power Output, Continuous | 802.8 watts | 1011.6 watts | 1284 watts | 1752 watts | 2340 watts |
| Input Voltage Range | 105-135AC | 105-135AC | 105-135AC | 105-135AC | 105-135AC |
| Input Voltage Frequency | 47-63 | 47-63 | 47-63 | 47-63 | 47-63 |
| Maximum AC Current @ 108Vac | 6.69 amps | 8.43 amps | 10.7 amps | 14.6 amps | 19.5 amps |
| Typical Efficiency | >85% | >85% | >85% | >85% | >85% |
| Max Inrush Current, Single Cycle | 40 amps | 40 amps | 40 amps | 40 amps | 40 amps |
| Short Circuit Protection | Yes | Yes | Yes | Yes | Yes |
| Overload Protection | >100% | >100% | >100% | >100% | >100% |
| Fan Control | Proportional | Proportional | Proportional | Proportional | Proportional |
| Thermal Protection | Yes | Yes | Yes | Yes | Yes |
| Working Temperature Range | -20 to 45C° | -20 to 45C° | -20 to 45C° | -20 to 45C° | -20 to 45C° |
| Storage Temprature Range | -20° to 80° C | -20° to 80° C | -20° to 80° C | -20° to 80° C | -20° to 80° C |

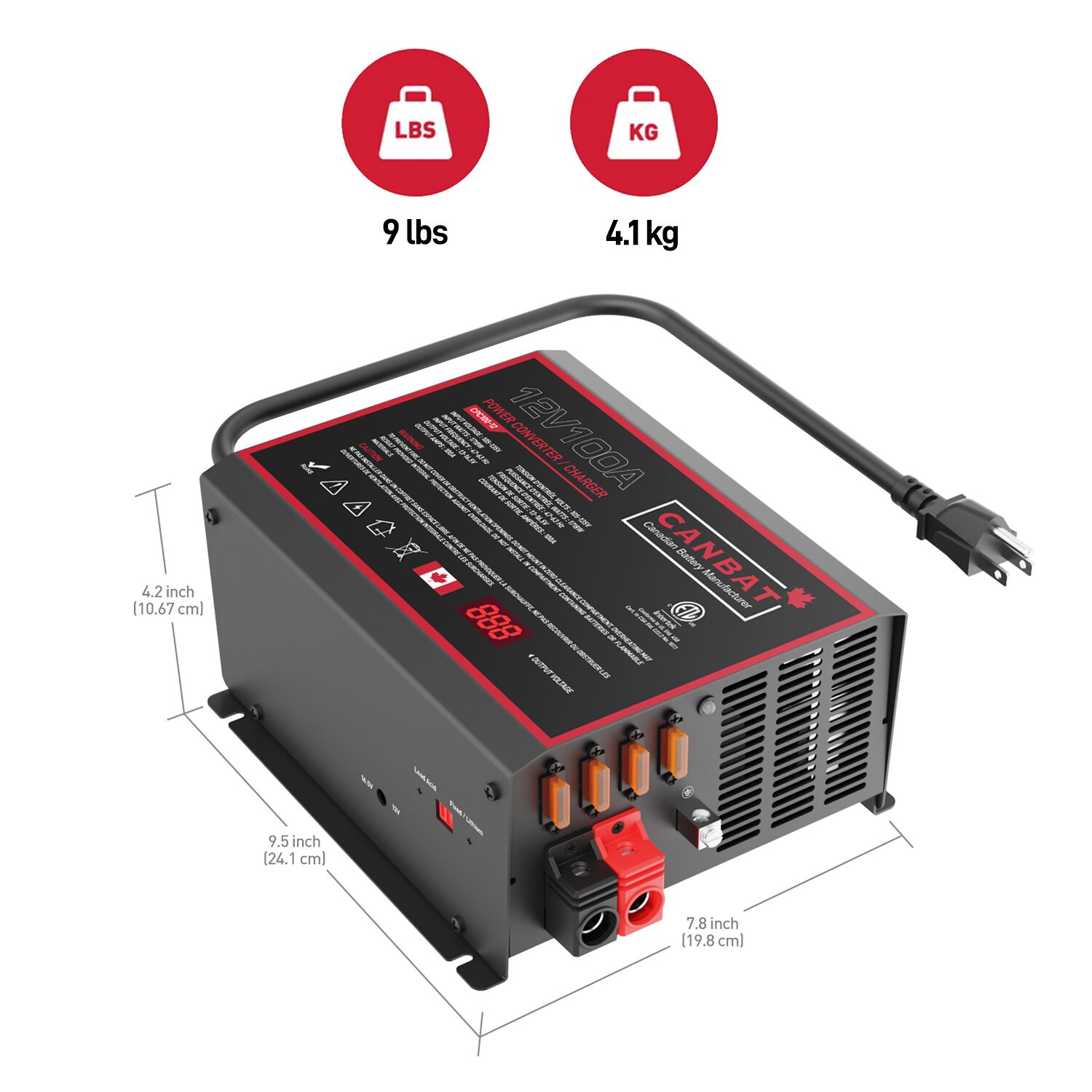

| Dimensions | 7.8 x 9.5 x 4.2 inches 19.8 x 24.1 x 10.7 cm | 7.8 x 9.5 x 4.2 inches 19.8 x 24.1 x 10.7 cm | 7.8 x 9.5 x 4.2 inches 19.8 x 24.1 x 10.7 cm | 7.8 x 9.5 x 4.2 inches 19.8 x 24.1 x 10.7 cm | 7.8 x 9.5 x 4.2 inches 19.8 x 24.1 x 10.7 cm |
| Weight | 7.0 lbs / 3.2 kg | 7.0 lbs / 3.2 kg | 7.0 lbs / 3.2 kg | 8.0 lbs / 3.6 kg | 9.0 lbs / 4.1 kg |
If you have any questions about this 12V 100A Power Converter Charger, feel free to give us a call or chat with one of our experts via email, phone or chat 24/7. Canbat converter chargers come with free shipping all across Canada and the United States.
Casey L. –
Put this into a fifth wheel trailer—clean wiring and stable connections. Mounting was straightforward and the terminals are solid.
