Description

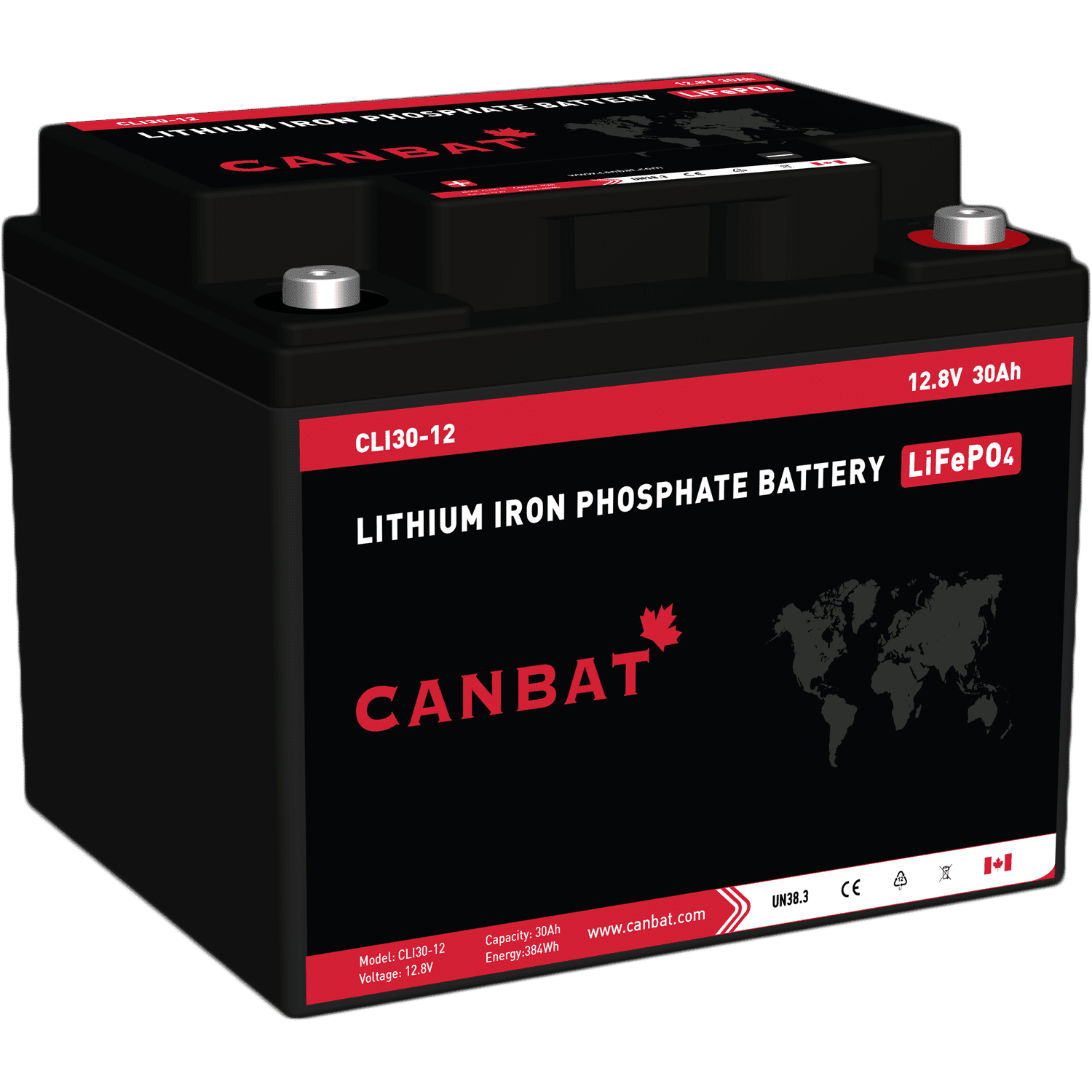

12V 30Ah Lithium Battery — CLI30-12
The Canbat CLI30-12 is a 12V 30Ah lithium battery delivering 384Wh of usable LiFePO4 energy in a compact 196 × 166 × 175 mm footprint at 11.2 lbs (5.08 kg) — designed for marine electronics, remote monitoring systems, portable communications equipment, compact trolling applications, and auxiliary power deployments where a lightweight, maintenance-free 12V lithium source is the requirement. It is the lightest model in the Canbat compact deep-cycle series, built on the same prismatic LiFePO4 cell technology and integrated BMS protection as the larger models in the standard lineup.
At 11.2 lbs, the CLI30-12 delivers reliable deep-cycle lithium performance in a lightweight deployable unit — suitable for applications where minimizing deployment weight is the primary constraint and the load profile is focused on electronics, instrumentation, and low-to-moderate draw auxiliary systems rather than sustained high-current discharge.
It ships free across Canada and the USA, carries a 10-year warranty, and is built with UL 1642 certified cells. For Canada and USA orders, there are no import duties or cross-border complications.
384Wh of Usable Energy — At Just 11.2 lbs
The CLI30-12 shares the same 196 × 166 × 175 mm footprint as the CLI40-12 and CLI50-12 while weighing 11.2 lbs — making it the correct specification for applications where minimum deployment weight is the priority and the energy requirement falls within the 30Ah range. Its compact sealed construction fits confined battery compartments, enclosed equipment enclosures, and portable equipment cases where larger batteries cannot be accommodated.
A comparable AGM battery at 30Ah nominal delivers approximately 15Ah of usable energy before its depth-of-discharge limit is reached. The CLI30-12 delivers its full 30Ah at 100% usable depth of discharge — twice the accessible energy at significantly less weight, with stable voltage maintained throughout the entire discharge cycle rather than declining progressively under load.
Sealed construction, no off-gassing, and maintenance-free operation make the CLI30-12 suitable for enclosed compartments and sealed enclosures where vented lead-acid batteries would be impractical or unsafe.
Applications
Marine Electronics & Fishfinders
The CLI30-12 is well suited as a dedicated electronics bank for kayak fishing and compact fishing vessel setups running a fishfinder, chartplotter, and navigation lights. At 11.2 lbs it adds minimal weight to weight-sensitive platforms, and its stable flat discharge voltage maintains consistent display and signal performance throughout the day — unlike AGM alternatives where progressive voltage decline affects electronics operation.
Remote Monitoring & Mobile Instrumentation
For remote monitoring stations, environmental sensors, field data collection equipment, and mobile instrumentation deployments requiring a compact, reliable 12V power source with minimal maintenance overhead, the CLI30-12 provides long-cycle-life lithium performance in a deployable form factor. Its low self-discharge rate — under 3% per month — supports installations that are serviced infrequently or left unattended for extended periods between maintenance visits.
Portable Communications & Auxiliary Equipment
For portable communications infrastructure, mobile traffic control equipment, compact surveillance systems, and auxiliary service equipment where physical deployment weight and maintenance-free operation are the primary operational requirements, the CLI30-12 delivers reliable lithium performance with a total cost of ownership significantly lower than sealed lead-acid alternatives in comparable form factors.
Compact Trolling & Portable Power
For very small electric trolling motors on kayaks and lightweight tenders where minimizing weight is prioritized over extended runtime capacity, and for compact portable power applications requiring a lightweight sealed 12V lithium source, the CLI30-12 provides dependable performance in the lightest available format in the Canbat compact deep-cycle series.
12V 30Ah Lithium Battery for Marine Electronics, Monitoring & Auxiliary Power
The CLI30-12 is Canbat’s lightweight compact deep-cycle lithium battery — designed for buyers sourcing a 12V 30Ah lithium battery for marine electronics, remote monitoring systems, portable communications equipment, and auxiliary power applications where minimum weight and compact dimensions define the specification.
For Canadians sourcing a 12V 30Ah lithium battery, the CLI30-12 ships free with no import duties, is backed by a Canadian technical team, and carries a 10-year warranty. Compatible with all major chargers and solar charge controllers that support a LiFePO4 charging profile.
Runtime & Performance
The CLI30-12 delivers 384Wh of usable energy at 12V nominal — all accessible at 100% depth of discharge with stable voltage throughout:
| Application / Load | Average Draw | Estimated Runtime |
|---|---|---|
| Fishfinder + nav lights | ~3–6A | ~5–10 hours |
| Remote monitoring / instrumentation | ~1–3A | ~10–30 hours |
| Portable communications equipment | ~2–4A | ~7–15 hours |
| LED lighting & device charging | ~3–5A | ~6–10 hours |
| Kayak trolling motor — low speed | ~10–15A | ~2–3 hours |
Runtime figures are based on 100% usable depth of discharge. The CLI30-12 maintains stable voltage throughout the discharge cycle — consistent electronics performance and motor output from start to finish.
Series & Parallel Expandability

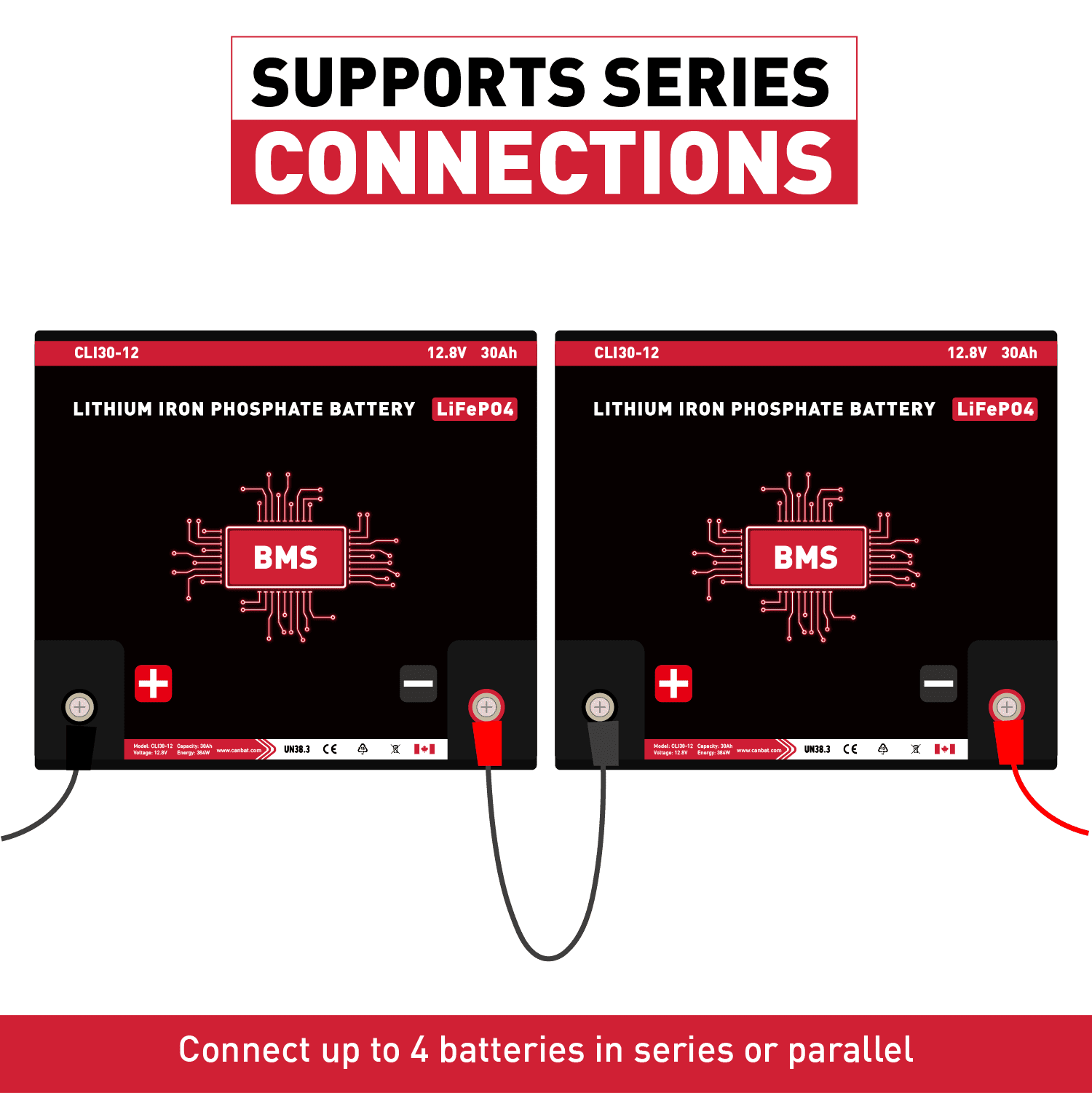

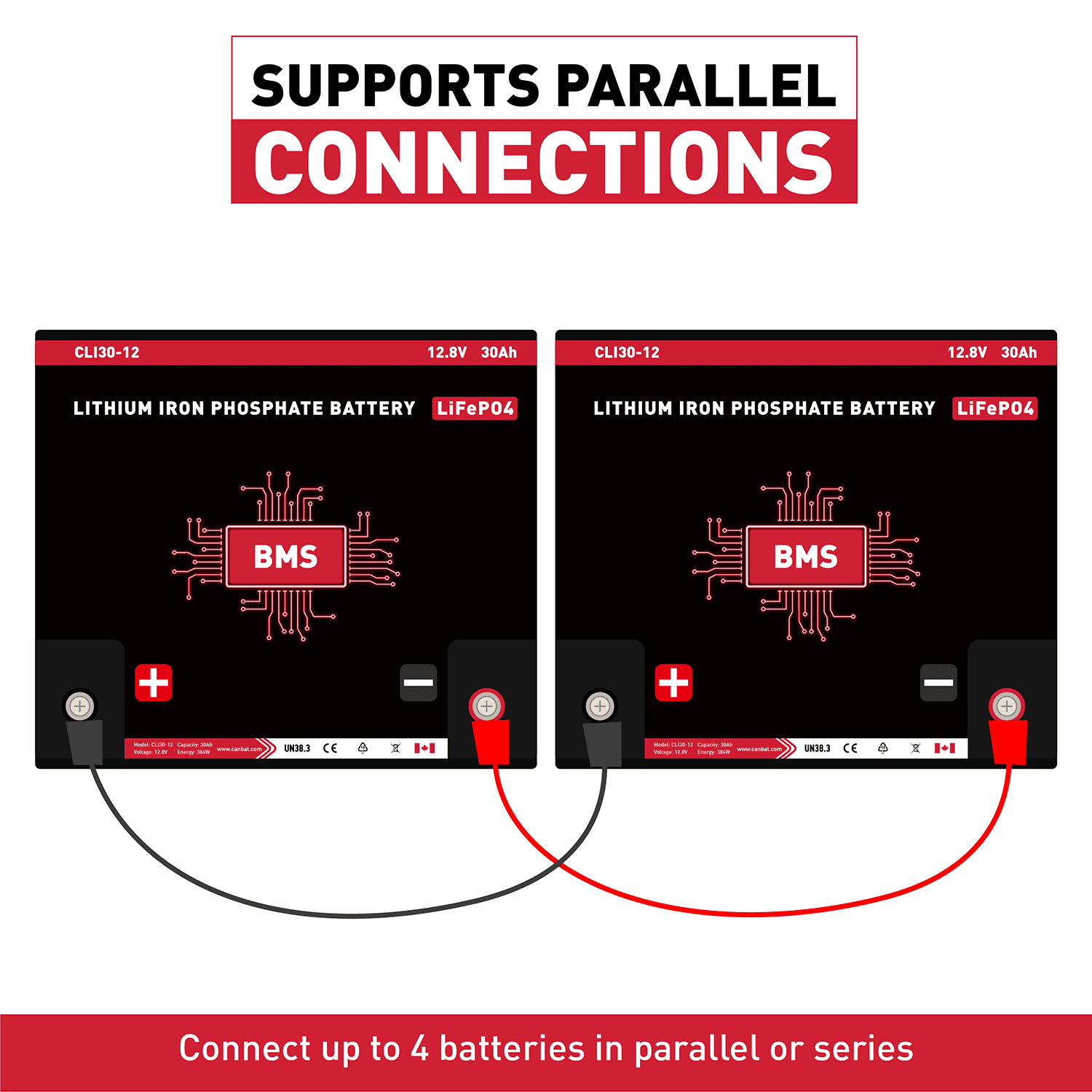

The CLI30-12 supports both series and parallel connections — up to 4 units in either configuration — for systems requiring greater capacity or higher system voltage.
| Configuration | Units | System Voltage | Total Capacity |
|---|---|---|---|
| Single unit | 1 | 12V | 30Ah / 384Wh |
| Parallel x2 | 2 | 12V | 60Ah / 768Wh |
| Parallel x3 | 3 | 12V | 90Ah / 1,152Wh |
| Parallel x4 (max) | 4 | 12V | 120Ah / 1,536Wh |
| Series x2 | 2 | 24V | 30Ah / 768Wh |
| Series x3 | 3 | 36V | 30Ah / 1,152Wh |
| Series x4 (max) | 4 | 48V | 30Ah / 1,536Wh |
The CLI30-12’s modular architecture supports the full range of 12V, 24V, 36V, and 48V system configurations without redesigning the installation.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | CLI30-12 |
| Chemistry | Lithium Iron Phosphate (LiFePO4) — Prismatic cells |
| Nominal Voltage | 12V (12.8V nominal) |
| Capacity | 30Ah |
| Energy | 384Wh |
| Cycle Life | 3,000–5,000 cycles at 100% DoD |
| Max Continuous Discharge | 30A |
| Peak Discharge | 150A for 3 seconds |
| Max Charge Current | 30A (recommended 15A) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| IP Rating | IP54 — splash and dust resistant |
| Weight | 11.2 lbs (5.08 kg) |

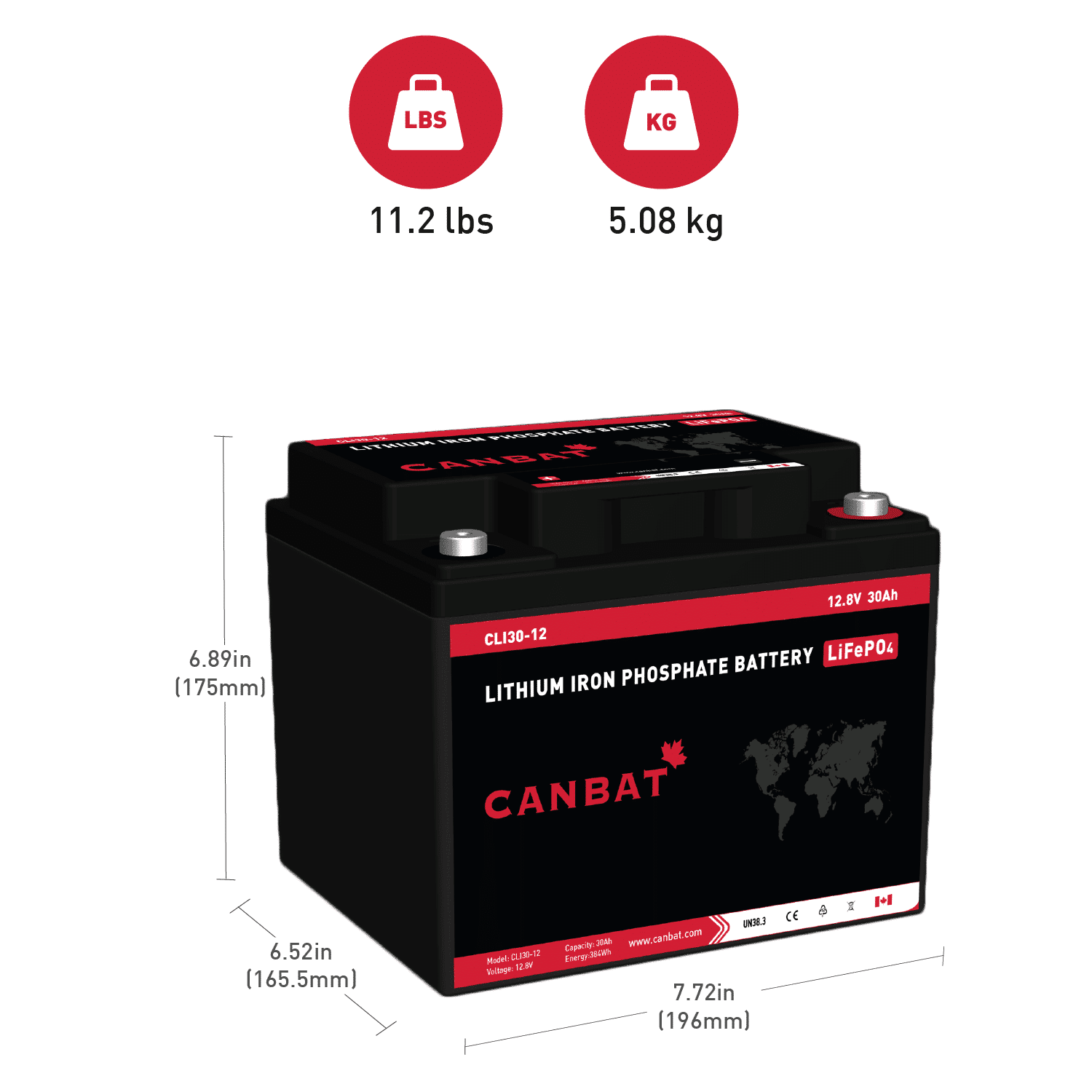

| Dimensions (L x W x H) | 196 x 166 x 175 mm / 7.72 x 6.54 x 6.89 in |
| Terminal Type | M6 / 1 — bolts included |
| Mounting | Upright or on side |
| Parallel Expansion | Up to 4 units (120Ah / 12V maximum) |
| Series Expansion | Up to 4 units (24V, 36V, or 48V systems) |
| BMS Protection | Over-charge, over-discharge, short circuit, over-current, temperature extremes, cell balancing |
| Bluetooth Monitoring | Optional add-on (Canbat BT app — free for iOS and Android) |
| Storage | Store at 80–100% SoC in a cool, dry environment |
| Certification | UL 1642 certified cells |
| Warranty | 10 years |
| Shipping | Free across Canada and USA — no import duties |
Battery Management System and Bluetooth Monitoring

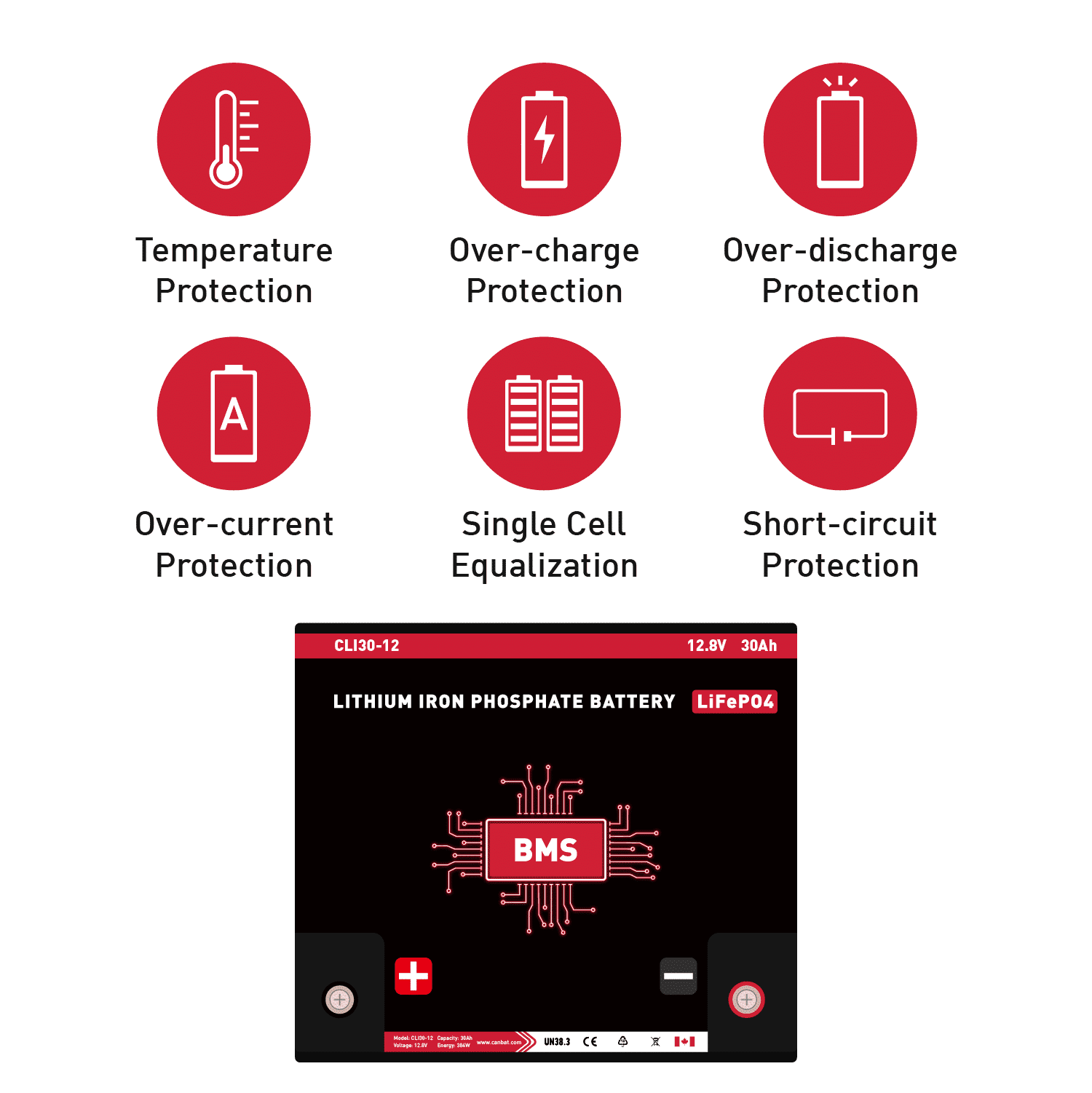

The CLI30-12’s integrated BMS manages cell-level protection and balancing automatically — no external battery management required.
- Over-discharge protection — prevents cell damage from excessive depth of discharge
- Over-charge protection — disconnects at the correct voltage ceiling
- Short circuit and over-current protection — responds within milliseconds
- High-temperature cutoff — protects cells during charging in hot environments
- Cell balancing — maintains consistency across the prismatic cell groups over thousands of cycles
The optional Bluetooth add-on connects the battery to the free Canbat BT app, available for iOS and Android. Monitor state of charge, voltage, current, and cell temperature in real time — particularly useful for remote monitoring installations and deployments where direct battery access is limited.
System Compatibility and Installation
The CLI30-12 is compatible with any charger, solar charge controller, or inverter/charger that supports a LiFePO4 charging profile. When replacing a lead-acid battery, verify that the charging system’s voltage settings are configured for lithium. M6 terminals with bolts are included. The battery installs upright or on its side.
For system sizing assistance or compatibility questions, Canbat’s Canadian technical team is available by phone, email, and live chat.
Canadian Supply, Support and Warranty
Canbat is a Canadian battery manufacturer. The CLI30-12 ships free to any address in Canada and the USA. Canadian and US buyers pay no import duties and face no cross-border complications on their orders.
The CLI30-12 is backed by a 10-year warranty and supported by a Canadian technical team available by phone, email, and live chat. Warranty claims can be submitted directly with Canbat — with no overseas support queues and no runaround.
