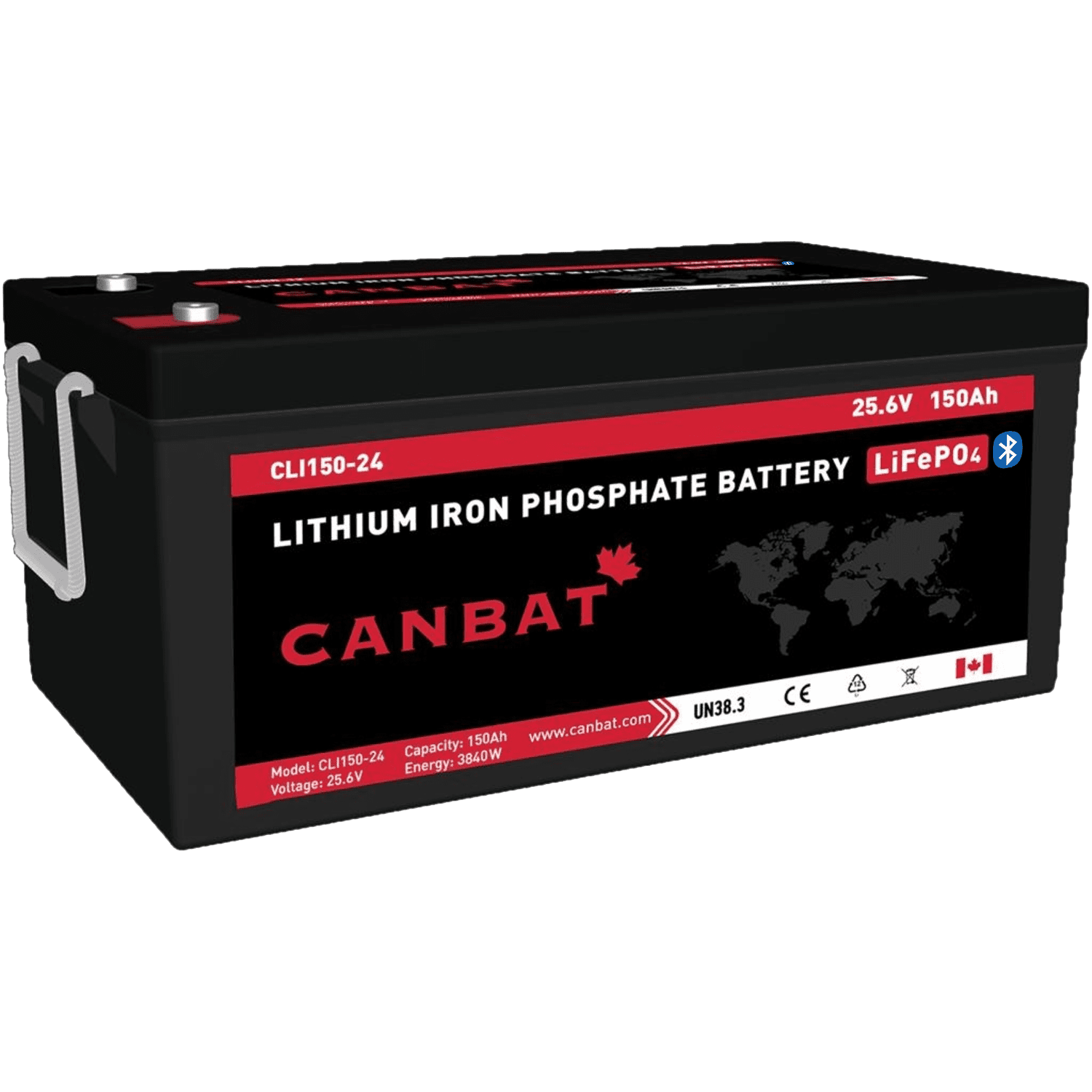

24V 150Ah Lithium Battery — CLI150-24
The Canbat CLI150-24 is a 24V 150Ah lithium battery delivering 3,840Wh of usable LiFePO4 energy in a Group 8D footprint at 80 lbs (36.29 kg) — the flagship model in the Canbat 24V standard lithium lineup, purpose-built as a native 24V energy platform for large trolling motor systems, serious marine house banks, RV and off-grid energy storage, solar backup systems, and commercial auxiliary power deployments. Unlike a 24V bank assembled from two 12V batteries in series, the CLI150-24 provides a single-BMS architecture with fewer interconnects, simpler installation, and balanced 24V performance from one integrated unit — eliminating the wiring complexity, charge-state management, and additional failure points of a dual-battery series configuration.
At 3,840Wh of usable energy, the CLI150-24 is one of the highest-capacity single-unit 24V lithium batteries in the Canbat lineup — delivering 150A continuous discharge, 3,000–5,000 cycle life at 100% depth of discharge, and stable 24V output throughout the entire discharge cycle. For systems already operating on a 24V architecture or being upgraded from a dual 12V series bank, the CLI150-24 simplifies the electrical system while substantially increasing usable energy and reducing the long-term cost of battery replacement.
It ships free across Canada and the USA, carries a 10-year warranty, and is built with UL 1642 certified cells. For Canada and USA orders, there are no import duties or cross-border complications.
Native 24V Platform — 3,840Wh in a Single Group 8D Unit
Many 24V systems are built by connecting two 12V batteries in series — an approach that introduces additional wiring complexity, requires matched batteries with identical charge states, and creates a maintenance overhead of managing two separate units with two independent BMS systems. The CLI150-24 delivers 24V natively from a single battery — eliminating the series connection, consolidating system protection into one integrated BMS, and ensuring balanced cell performance across the entire 24V platform without external balancing equipment or matched-pair requirements.
At the same power output, a 24V system draws half the current of an equivalent 12V system — reducing resistive losses across the cable run, allowing smaller gauge wiring over longer distances, and improving inverter input efficiency. For high-draw applications such as large trolling motors, electric anchor windlasses, 24V inverter systems, and solar charge controllers, the lower operating current of a native 24V architecture translates directly into better system efficiency, lower heat generation in cables and connectors, and reduced voltage drop at the load.
Up to 4 CLI150-24 units can be connected in parallel to reach 600Ah / 15,360Wh at 24V — scaling from a single high-capacity unit to a substantial energy bank without changing the system voltage or architecture.
Applications
Large 24V Trolling Motor Systems
The CLI150-24 is engineered for large 24V trolling motor setups on serious fishing boats — bass boats, walleye rigs, and larger aluminum and fiberglass platforms where a full day of trolling at moderate to high speeds demands substantial energy reserve. At 150A continuous discharge and 3,840Wh usable, it provides all-day trolling capability with stable voltage output that maintains consistent motor thrust from the first hour to the last — without the progressive thrust loss that characterizes lead-acid trolling motor batteries as they deplete.
Marine House Banks & Electronics Systems
For larger vessels running a 24V house bank — chartplotters, radar, autopilot, VHF, AIS, electric anchor windlasses, and inverter loads — the CLI150-24 provides substantial overnight energy reserve in a single Group 8D unit. Stable flat discharge voltage maintains consistent power quality for sensitive navigation electronics throughout the discharge cycle, and sealed maintenance-free construction requires no servicing in bilge or below-deck battery compartments.
RV & Off-Grid Energy Storage
At 3,840Wh of usable energy, the CLI150-24 provides substantial energy reserve for well-equipped RV and off-grid installations — supporting a 12V fridge, LED lighting, water pump, device charging, and moderate inverter loads for extended periods when paired with an adequate solar or shore power charging source. For demanding off-grid deployments where generator dependence is to be minimized, the CLI150-24’s capacity and 24V architecture support larger inverter loads more efficiently than an equivalent 12V bank, reducing cable sizing requirements and improving overall system conversion efficiency.
Solar & Auxiliary Power Systems
For solar energy storage, remote off-grid power systems, and commercial auxiliary deployments requiring a high-capacity 24V battery bank, the CLI150-24’s parallel expandability to 600Ah / 15,360Wh supports installations ranging from compact single-unit systems to substantial multi-day energy reserves. Its low self-discharge rate — under 3% per month — supports seasonal and intermittent-use installations without requiring active maintenance charging.
24V 150Ah Lithium Battery for Trolling Motors, Marine & Off-Grid Systems
The CLI150-24 is Canbat’s flagship 24V deep cycle lithium battery — a 150Ah LiFePO4 platform in the Group 8D format designed for buyers sourcing a 24V 150Ah lithium battery for large trolling motor systems, marine house banks, RV energy storage, and off-grid solar applications requiring high usable capacity and reliable deep-cycle performance from a native 24V platform.
For Canadians sourcing a 24V 150Ah lithium battery, the CLI150-24 ships free with no import duties, is backed by a Canadian technical team, and carries a 10-year warranty. Compatible with all major 24V chargers, solar charge controllers, and inverter/chargers that support a LiFePO4 charging profile.
Runtime & Performance
The CLI150-24 delivers 3,840Wh of usable energy at 24V nominal — all accessible at 100% depth of discharge with stable voltage throughout:
| Application / Load | Average Draw | Estimated Runtime |
|---|---|---|
| 24V trolling motor — moderate speed | ~30–50A | ~3–5 hours |
| Marine electronics (full suite) | ~8–15A | ~10–18 hours |
| RV loads — fridge, lighting, devices | ~10–20A | ~7–15 hours |
| Inverter — 500W load | ~22A | ~6.5 hours |
| Off-grid solar storage — overnight | ~8–12A average | ~12–18 hours |
Runtime figures are based on 100% usable depth of discharge at 24V nominal. The CLI150-24 maintains stable voltage throughout the discharge cycle — consistent performance for trolling motors, electronics, and inverter loads from start to finish.

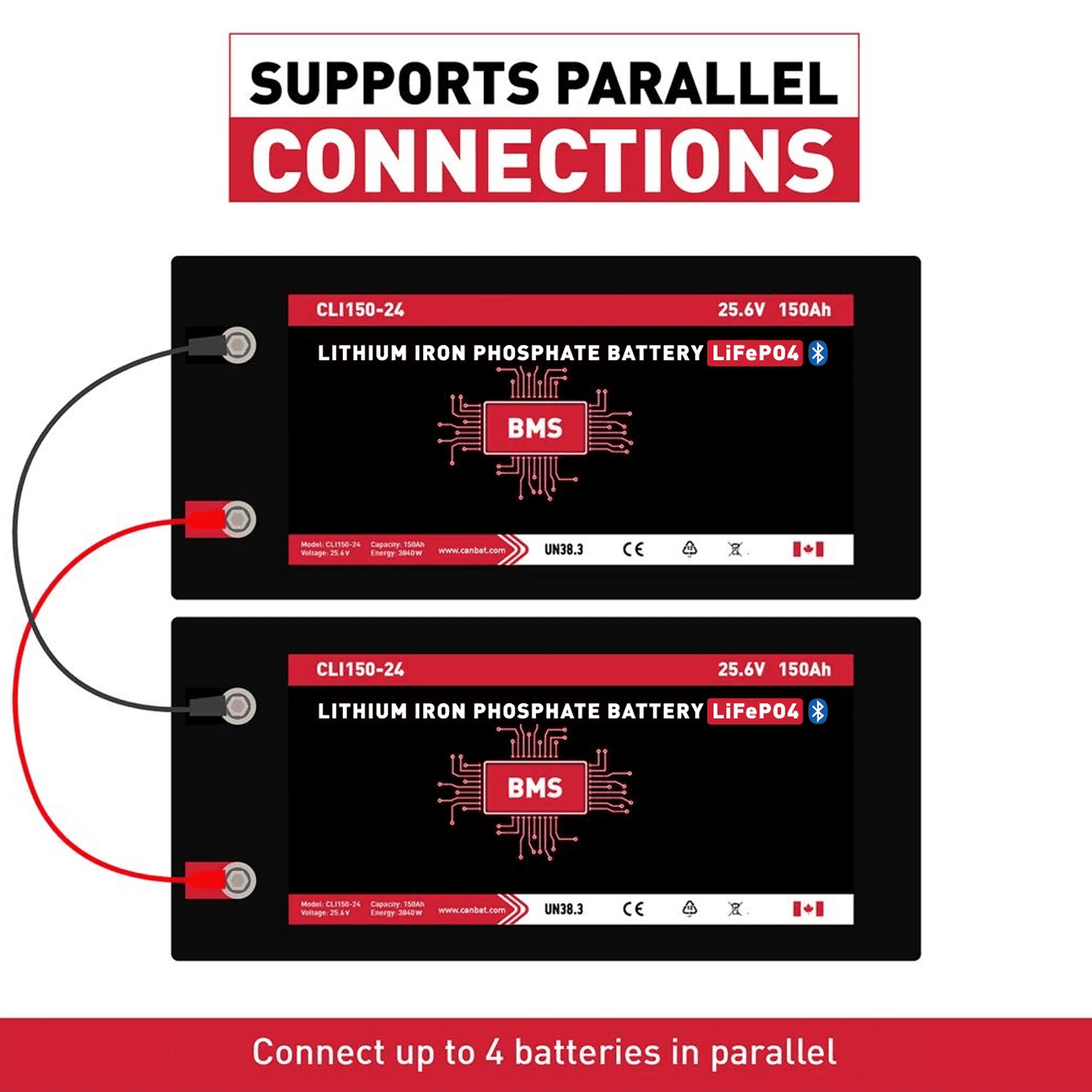

Parallel Expandability
The CLI150-24 supports parallel connections — up to 4 units — allowing the system to scale as energy requirements grow while maintaining the 24V system voltage.
| Configuration | Units | System Voltage | Total Capacity |
|---|---|---|---|
| Single unit | 1 | 24V | 150Ah / 3,840Wh |
| Parallel x2 | 2 | 24V | 300Ah / 7,680Wh |
| Parallel x3 | 3 | 24V | 450Ah / 11,520Wh |
| Parallel x4 (max) | 4 | 24V | 600Ah / 15,360Wh |

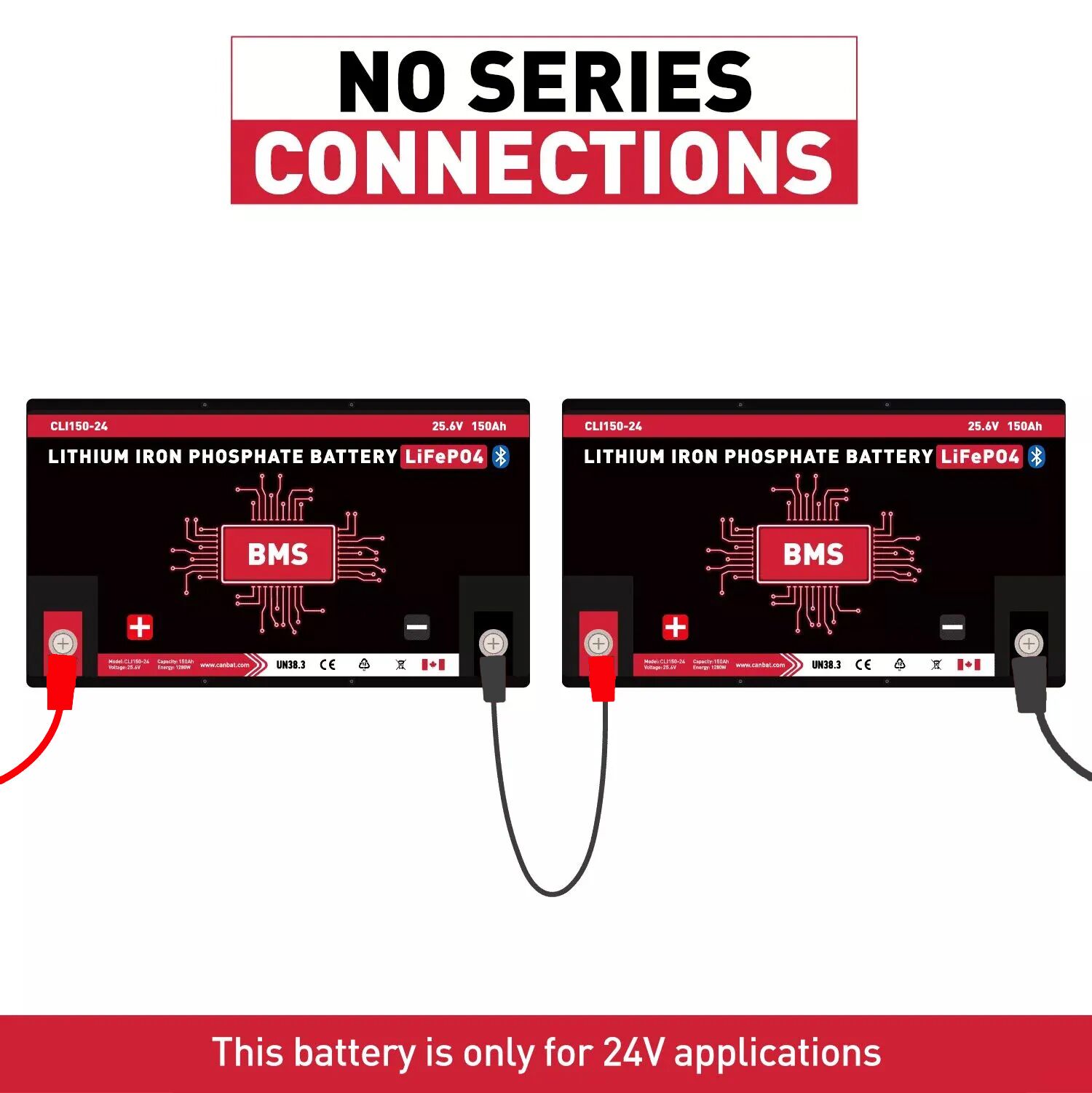

Note: The CLI150-24 supports parallel expansion only. Series connections are not supported on this model.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | CLI150-24 |
| Chemistry | Lithium Iron Phosphate (LiFePO4) — Prismatic cells |
| Nominal Voltage | 24V (25.6V nominal) |
| Capacity | 150Ah |
| Energy | 3,840Wh |
| Cycle Life | 3,000–5,000 cycles at 100% DoD |
| Max Continuous Discharge | 150A |
| Peak Discharge | 350A for 3 seconds |
| Max Charge Current | 150A (recommended 75A) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| IP Rating | IP54 — splash and dust resistant |
| Weight | 80 lbs (36.29 kg) |

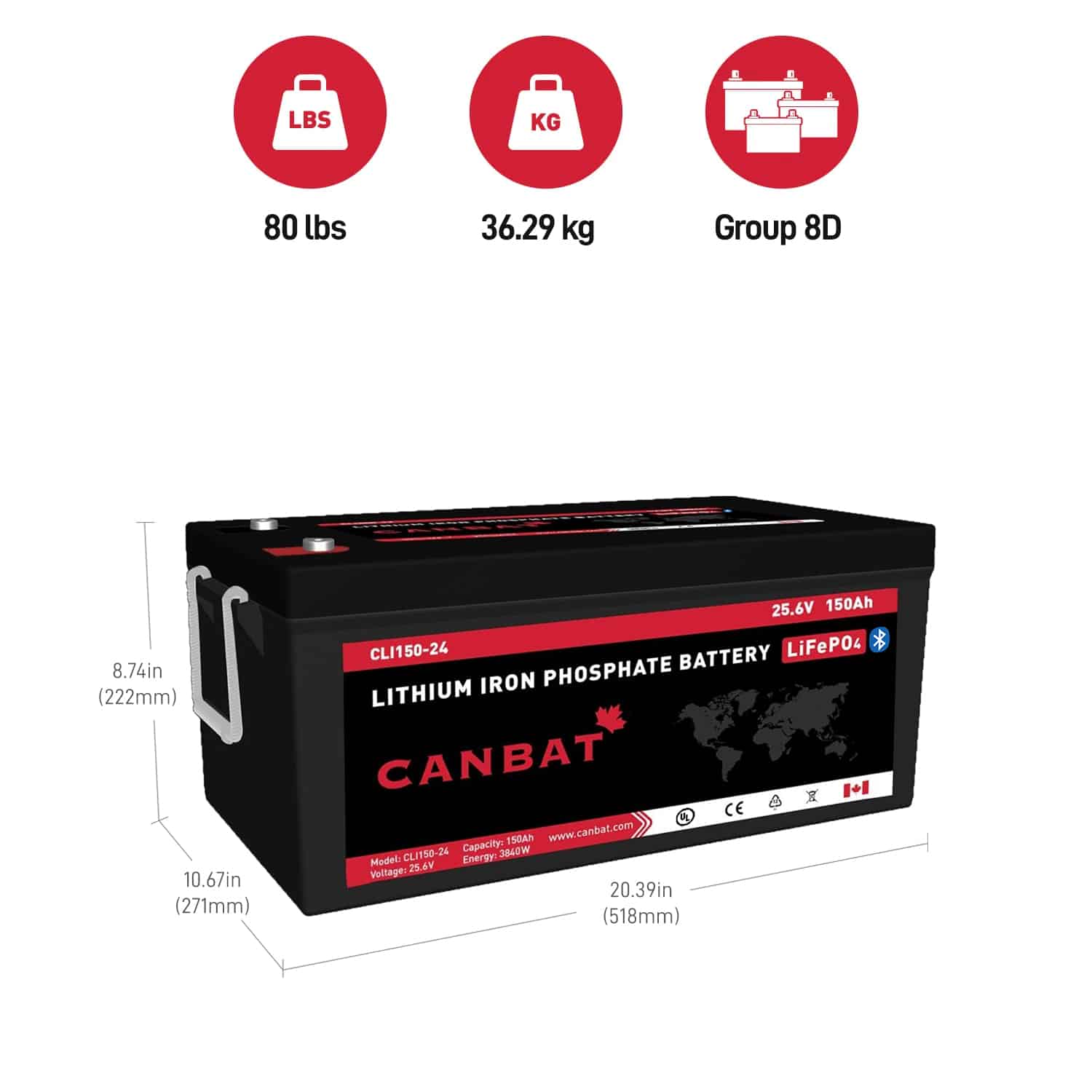

| Dimensions (L x W x H) | 520 x 269 x 222 mm / 20.47 x 10.59 x 8.74 in |
| BCI Group Size | 8D |
| Terminal Type | M8 / 1.25 — bolts included |
| Mounting | Upright or on side |
| Parallel Expansion | Up to 4 units (600Ah / 24V maximum) |
| Series Expansion | Not supported |
| BMS Protection | Over-charge, over-discharge, short circuit, over-current, temperature extremes, cell balancing |
| Bluetooth Monitoring | Optional add-on (Canbat BT app — free for iOS and Android) |
| Storage | Store at 80–100% SoC in a cool, dry environment |
| Certification | UL 1642 certified cells |
| Warranty | 10 years |
| Shipping | Free across Canada and USA — no import duties |

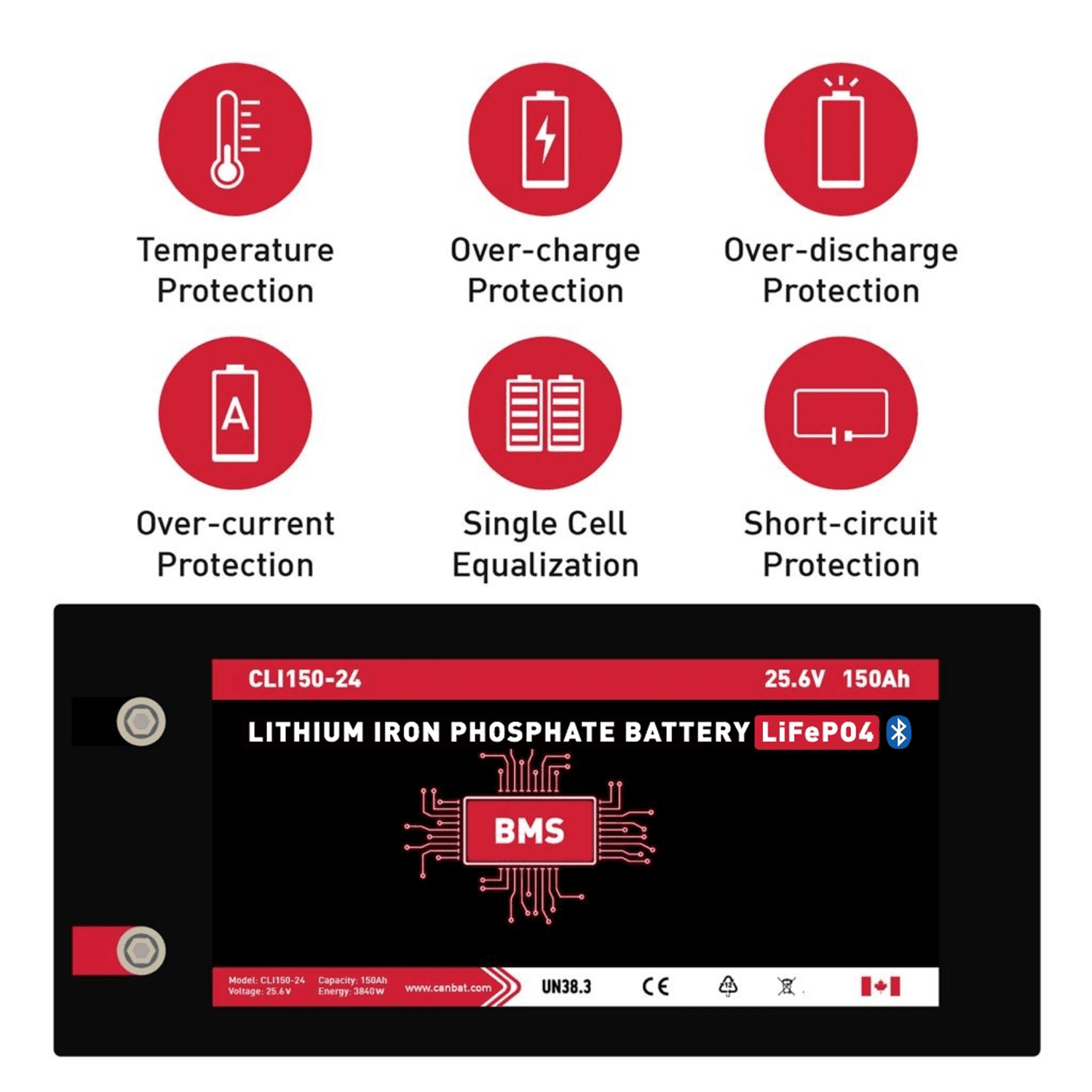

Battery Management System and Bluetooth Monitoring
The CLI150-24’s integrated BMS manages cell-level protection and balancing automatically across the full 24V cell stack — no external battery management required.
- Over-discharge protection — prevents cell damage from excessive depth of discharge
- Over-charge protection — disconnects at the correct voltage ceiling
- Short circuit and over-current protection — responds within milliseconds
- High-temperature cutoff — protects cells during charging in hot environments
- Cell balancing — maintains consistency across the prismatic cell groups over thousands of cycles
The optional Bluetooth add-on connects the battery to the free Canbat BT app, available for iOS and Android. Monitor state of charge, voltage, current, and cell temperature in real time — useful for marine and RV installations where direct battery access requires opening panels or compartments.
System Compatibility and Installation
The CLI150-24 is compatible with any 24V charger, solar charge controller, or inverter/charger that supports a LiFePO4 charging profile — including units from Victron, Renogy, Epever, and other major 24V system manufacturers. When replacing a lead-acid battery bank, verify that the charging system’s voltage settings are configured for 24V lithium. For inverter installations, the CLI150-24’s stable flat discharge voltage maintains consistent inverter input across the full state of charge range — avoiding the input voltage drop that causes inverter efficiency loss and low-voltage shutdowns with lead-acid alternatives. M8 terminals with bolts are included. The battery installs upright or on its side in any standard Group 8D tray or battery box.
For system sizing assistance or compatibility questions, Canbat’s Canadian technical team is available by phone, email, and live chat.
Canadian Supply, Support and Warranty
Canbat is a Canadian battery manufacturer. The CLI150-24 ships free to any address in Canada and the USA. Canadian and US buyers pay no import duties and face no cross-border complications on their orders.
The CLI150-24 is backed by a 10-year warranty and supported by a Canadian technical team available by phone, email, and live chat. Warranty claims can be submitted directly with Canbat — with no overseas support queues and no runaround.
