Description
48V 100Ah Cold Weather Lithium Battery | LiFePO₄ | Server
Rack | Heated | IP54 | BMS | Inverter Compatible

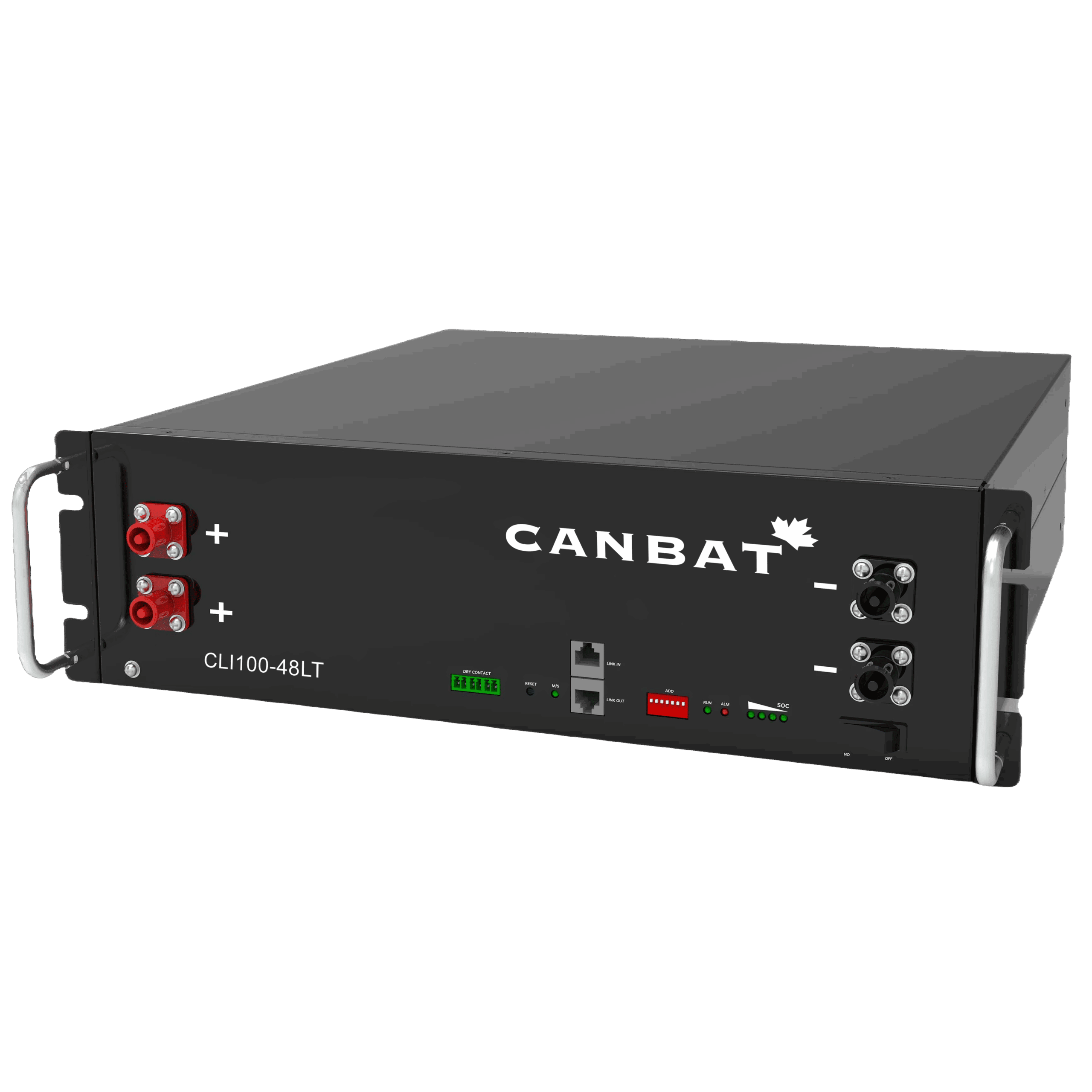

The Canbat CLI100-48LT is a premium 48V 100Ah cold weather lithium battery, purpose-built for solar, backup, and
off-grid power systems operating in harsh climates. Featuring a powerful combination of LiFePO₄ chemistry,
intelligent BMS protection, and integrated heating, this battery delivers maximum performance even at sub-zero
temperatures.
Designed in a compact 48V server rack battery format, the
CLI100-48LT is easy to install in residential, commercial, and industrial energy storage systems. It supports full
CANBus and RS485 communication, making it plug-and-play compatible with popular inverter brands like Victron,
Sol-Ark, Growatt, and many others.
Key Features
-
48V 100Ah cold weather lithium battery with
self-heating: Charges as low as -25°C -
Built using safe and stable LiFePO₄ (lithium
iron phosphate) chemistry -
Delivers 5.12kWh of total energy (4.92kWh
usable) -
Built-in Smart BMS for real-time protection and
battery balancing -
6000+ cycle life at 80% DoD for long-term
reliability -
Compact 48V server rack battery design (2U, 19”
standard width) -
Weather resistant: IP54-rated for dust and
splash protection -

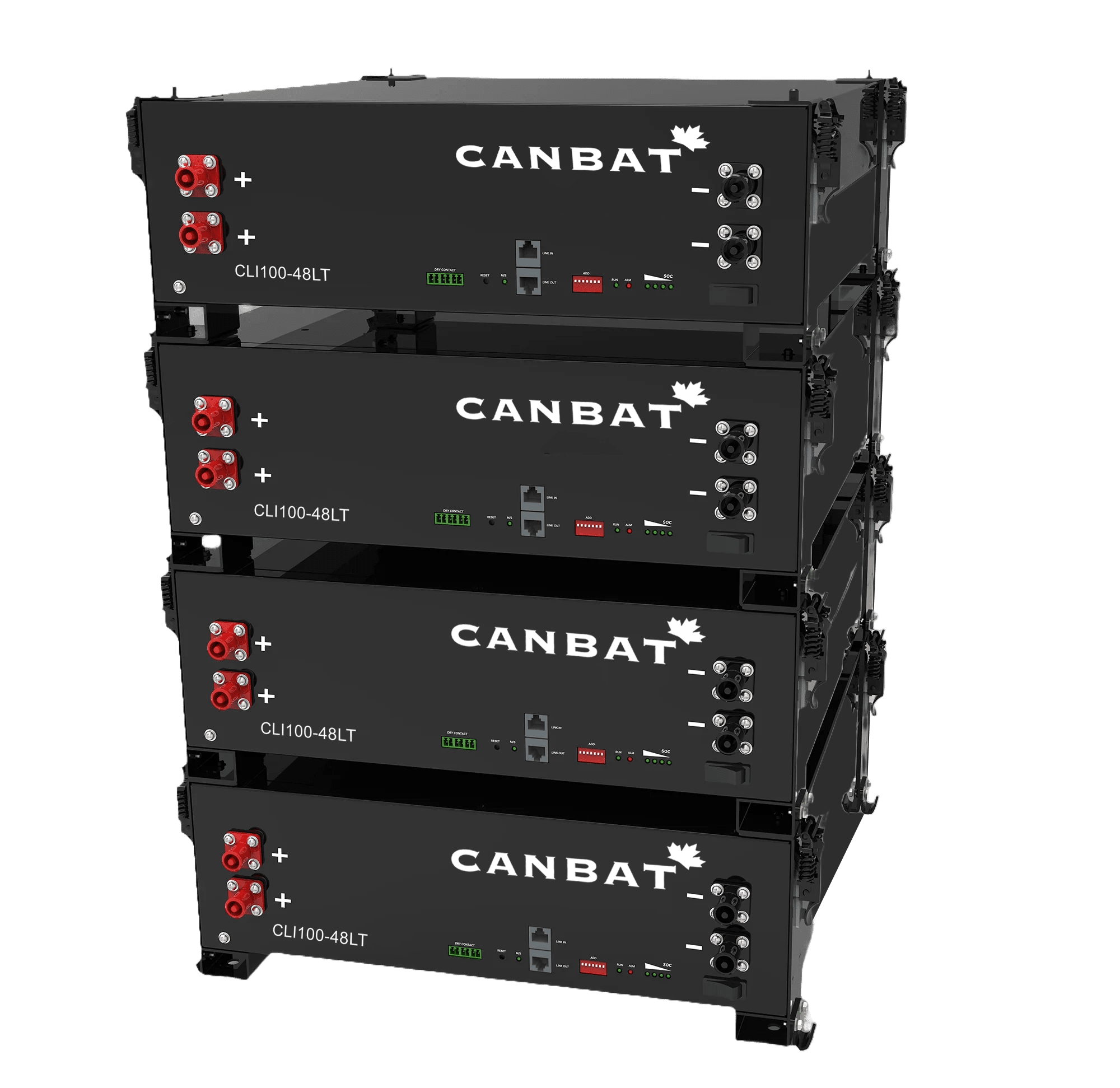

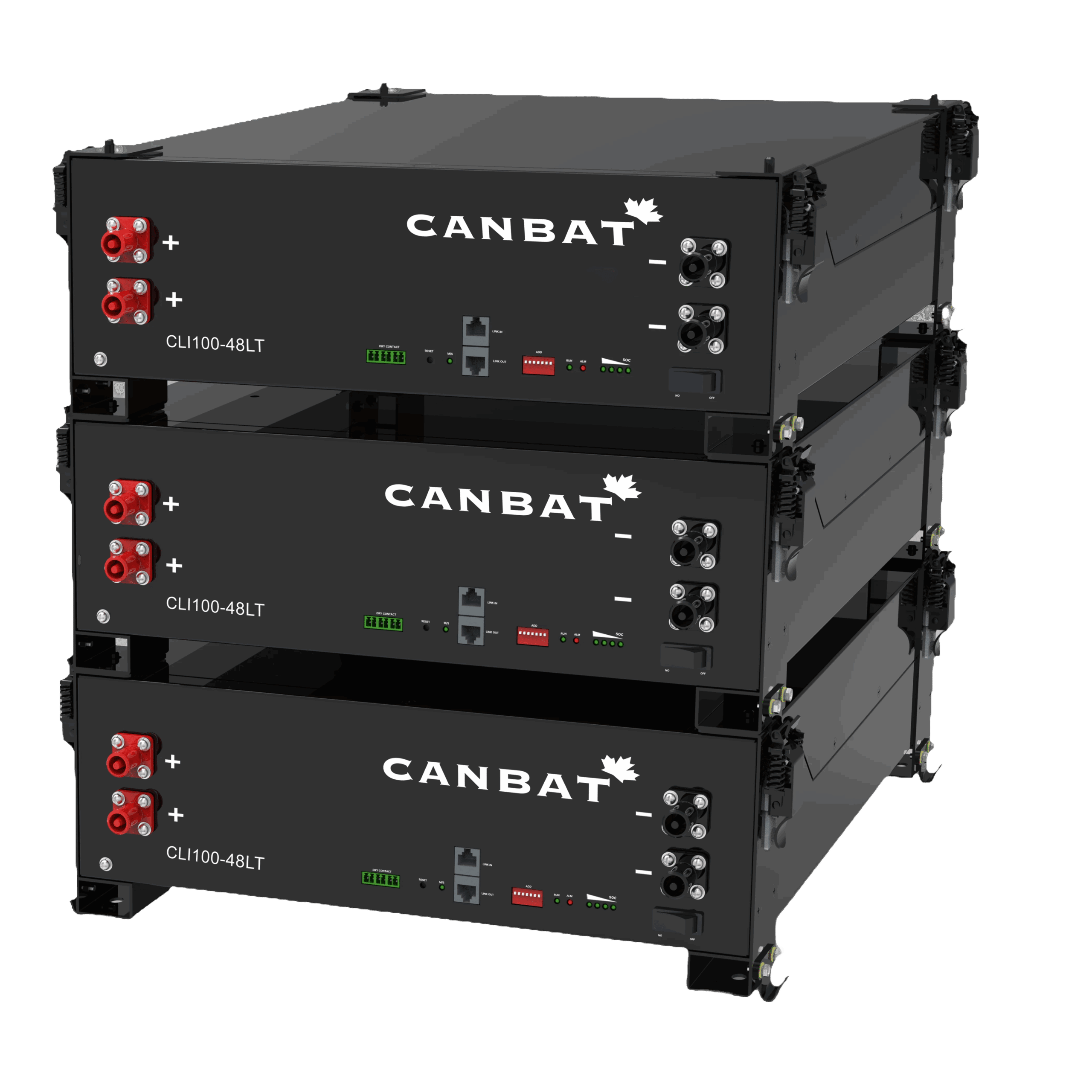

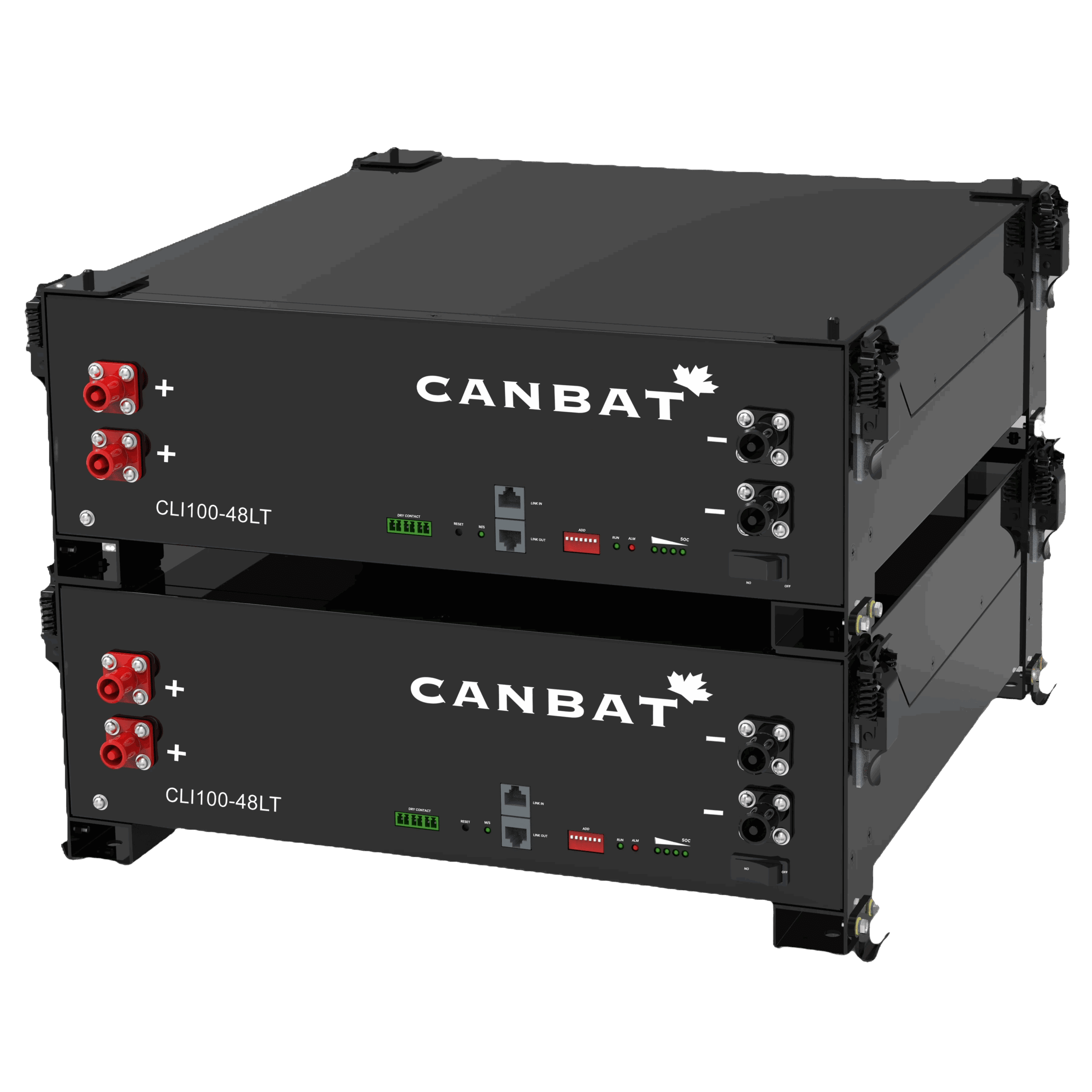

Parallel up to 32 units (160kWh+) with dynamic
addressing -
Maintenance-free and vibration resistant
-
10-year manufacturer warranty backed by
Canadian engineering
Inverter
Compatibility
This advanced 48V 100Ah lithium battery communicates
seamlessly with dozens of inverter brands via CAN or RS485, including:
-
Victron, Sol-Ark, Growatt, Goodwe, Solis,
Studer, SMA, LUXPOWER, Outback, Deye, MPP, Schneider, and more
DIP switch configuration allows easy protocol selection
with auto-detection for master-slave communication.
Technical
Specifications
Parameter | Value |
---|---|
Nominal Voltage | 51.2V |
Capacity | 100Ah |
Energy | 5.12kWh total, 4.92kWh usable |
Chemistry | LiFePO₄ |
Max Continuous Discharge | 100A |
Peak Discharge | 119A (5 min), 200A (15 sec) |
Max Charge Current | 70A |
Float Voltage | 54.6V |
Cut-off Voltage | 48.0V |
Operating Temperature | -25°C to +50°C (with heating) |
Storage Temp Range | -10°C to +45°C |
Weight | ~46 kg |
Dimensions | 482 x 133.5 x 460 mm 17.4 x 18.1 x 5.2 inches |
Enclosure Rating | IP54 |
Mounting | Rack, wall, stack, or floor |
Expandability | Up to 32 batteries in parallel |
Warranty | 10 years |
Applications
The CLI100-48LT is ideal for:
-
Off-grid solar systems requiring winter-ready
energy storage -
Grid-tied hybrid energy storage systems with
backup capability -
48V telecom backup power systems
-
RV and marine lithium battery banks (48V DC)
-
Industrial UPS systems and remote monitoring
sites
Charging
Requirements
To ensure safe and efficient operation, your 48V 100Ah lithium battery must be
charged using components that support programmable lithium charging profiles. These components may include inverter
chargers, solar charge controllers, DC-DC chargers, and power converters.
Please confirm your charging system can be set to the following LiFePO₄ charging
parameters:
Recommended Charging Profile
-
Bulk / Absorption Voltage:
56.8V – 58.4V (equivalent to 14.2V – 14.6V per 12V module) -
Absorption Time: 15 minutes
per battery. For 2x 48V 100Ah batteries (200Ah total), set to 30 minutes -
Float Voltage: 53.6V – 55.2V
-
Equalization: Disabled or set to 57.6V max if required (not recommended for
LiFePO₄) -
Temperature
Compensation: Disabled (0 mV/°C per cell) -
Recommended Charge Rate:
0.5C (50A per 100Ah battery)
Operating Temperature Ranges
-
Charging Range: 0°C to
55°C (32°F to 131°F) -
Discharging Range: -20°C
to 60°C (-4°F to 140°F) -
Cell-Level Charge Temp:
0°C to 55°C (32°F to 131°F)
Why Choose
Canbat 48V 100Ah battery?
As a Canadian manufacturer, Canbat specializes in
high-quality lithium solutions designed for real-world conditions. The CLI100-48LT 48V 100Ah cold weather lithium
battery is rugged, scalable, and ready to power your most critical systems—whether you’re off-grid, storing solar
energy, or building a resilient backup solution. The Canbat 48V 100Ah LiFePO₄ battery is a long-term power solution
with advanced safety, smart communication, and the peace of mind of cold-weather readiness.
