Description

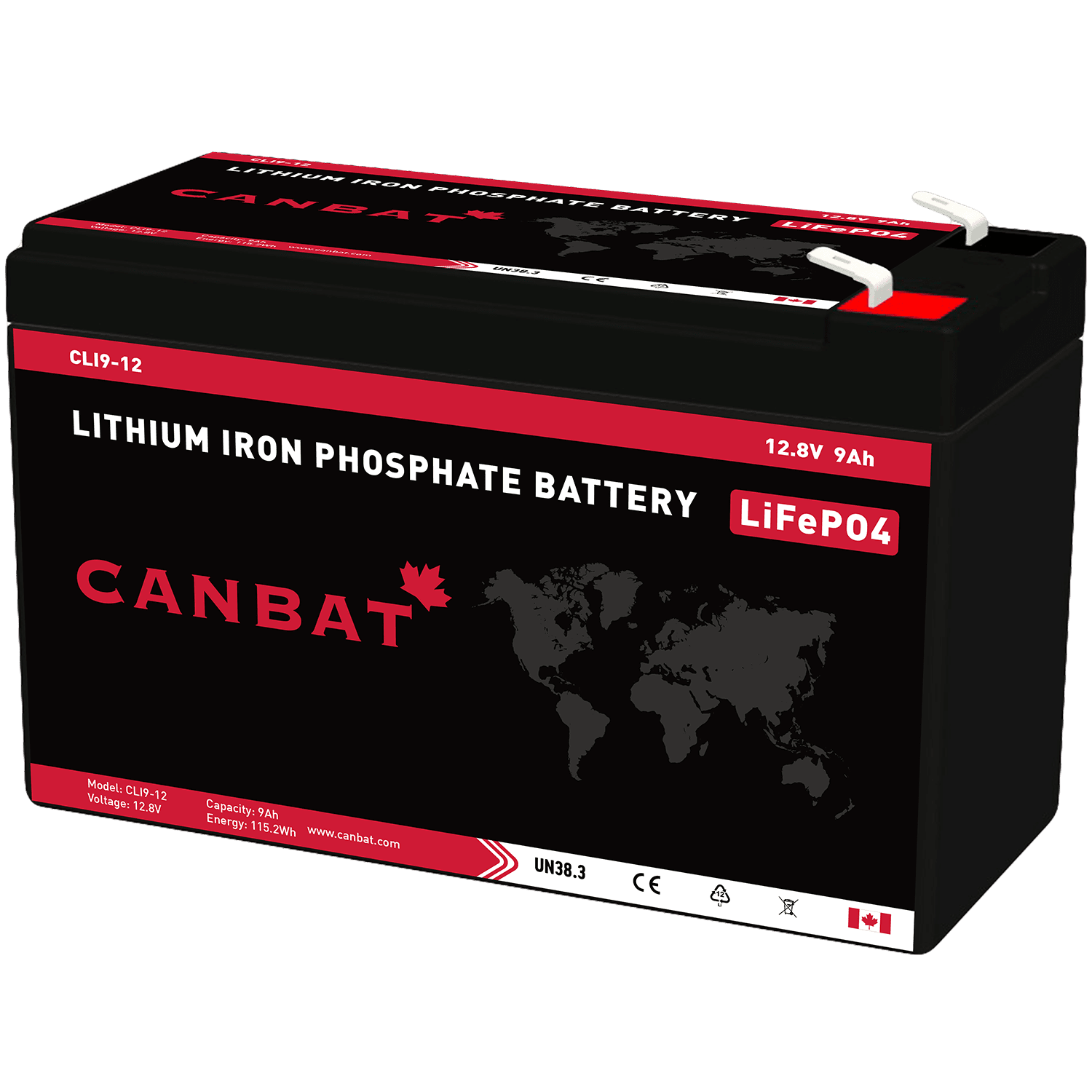

12V 9Ah Lithium Battery — CLI9-12
The Canbat CLI9-12 is a 12V 9Ah lithium battery delivering 115.2Wh of usable LiFePO4 energy in a compact 151 × 65 × 95 mm footprint at just 2.8 lbs (1.27 kg) — a premium lithium replacement for 12V 9Ah sealed lead-acid batteries used in alarm systems, emergency lighting, UPS units, access control equipment, security infrastructure, and standby backup systems. Equipped with standard F2 (T2) blade terminals for direct connector-level compatibility with existing SLA battery harnesses and enclosures, the CLI9-12 installs as a direct drop-in replacement without rewiring, adapters, or hardware modifications.
The 12V 9Ah SLA battery is one of the most widely used standby battery formats in North America — found in alarm panels, UPS cabinets, emergency lighting units, exit signs, gate operators, and access control systems across residential, commercial, and industrial installations. The CLI9-12 replaces this SLA battery with a lithium alternative that delivers twice the usable energy, a fraction of the weight, and 3,000–5,000 cycle life versus the 300–500 cycles typical of sealed lead-acid alternatives — dramatically reducing replacement frequency and total cost of ownership over the service life of the equipment.
It ships across Canada and the USA, carries a 10-year warranty, and is built with UL 1642 certified cells. For Canada and USA orders, there are no import duties or cross-border complications.
F2 Terminal Compatibility — Direct 12V 9Ah SLA Replacement
The CLI9-12 uses standard F2 (T2) blade terminals — the same terminal format found on virtually all 12V 9Ah sealed lead-acid batteries used in alarm panels, UPS cabinets, emergency lighting fixtures, and access control systems. This means the CLI9-12 connects directly to existing battery harnesses and spade connectors without modifications — a genuine drop-in replacement at both the physical enclosure level and the connector level.
A 12V 9Ah SLA battery delivers approximately 4.5Ah of usable energy before reaching its 50% depth-of-discharge limit and typically provides 300–500 cycles before capacity degrades to the point of replacement. The CLI9-12 delivers its full 9Ah at 100% usable depth of discharge on every cycle, with 3,000–5,000 cycle life — a ten-fold or greater improvement in service life in the same physical format and enclosure dimensions. For alarm systems, UPS units, and emergency lighting on scheduled annual service intervals, this translates directly into fewer service visits dedicated to battery replacement.
At 2.8 lbs (1.27 kg), the CLI9-12 weighs significantly less than a comparable 12V 9Ah SLA battery — reducing enclosure load in wall-mounted panels, ceiling-mounted emergency units, and compact equipment housings where battery access and handling space are constrained.
Applications
Alarm Systems & Security Infrastructure
The CLI9-12 is a direct F2-terminal lithium replacement for the 12V 9Ah SLA batteries used in commercial and residential alarm panels, intrusion detection systems, and security control units. F2 connector compatibility ensures no rewiring. The 3,000–5,000 cycle life reduces alarm battery replacement frequency by a factor of ten or more compared to SLA alternatives in standby service — fewer scheduled service calls, lower maintenance cost, and more consistent standby reliability over the installed equipment life.
Emergency Lighting & Exit Sign Backup
Emergency lighting units, exit signs, and egress lighting systems across commercial, industrial, and institutional facilities are among the highest-volume applications for 12V 9Ah SLA batteries. The CLI9-12 provides a lithium upgrade in the same enclosure format — maintaining capacity more reliably during extended standby compared to SLA batteries, which degrade silently and may fail to deliver required illumination duration during an actual emergency event if not replaced on strict schedule.
UPS Systems & Standby Backup Power
For small UPS units protecting communications equipment, network switches, point-of-sale systems, and critical electronics, the CLI9-12 delivers twice the usable backup energy of the SLA battery it replaces — in the same enclosure, with significantly longer service life and without the sulfation degradation that reduces SLA backup capacity during extended standby periods between actual discharge events.
Access Control, Remote Monitoring & Auxiliary Systems
For access control panels, intercom systems, gate operators, trail cameras, remote monitoring stations, and compact field instrumentation where a 12V 9Ah SLA battery is the standard power source, the CLI9-12 delivers a lithium upgrade with no compatibility changes — same voltage, same F2 terminal format, same physical enclosure dimensions, and significantly extended service life in deployments where replacement access is scheduled or logistically constrained.
12V 9Ah Lithium Battery — SLA Replacement for Alarm, Emergency Lighting & UPS Systems
The CLI9-12 is Canbat’s high-volume SLA replacement lithium battery for the 12V 9Ah standby battery format — a premium lithium infrastructure component with standard F2 (T2) terminals engineered for direct replacement of 12V 9Ah sealed lead-acid batteries in alarm systems, emergency lighting, UPS units, access control equipment, and security infrastructure across commercial, industrial, and institutional applications.
For Canadians sourcing a 12V 9Ah lithium battery for alarm battery replacement, emergency light battery replacement, UPS battery replacement, or SLA replacement applications, the CLI9-12 ships with no import duties, is backed by a Canadian technical team, and carries a 10-year warranty. Compatible with all chargers and charge controllers that support a LiFePO4 charging profile.
Runtime & Performance
The CLI9-12 delivers 115.2Wh of usable energy at 12V nominal — all accessible at 100% depth of discharge with stable voltage throughout:
| Application / Load | Average Draw | Estimated Runtime |
|---|---|---|
| Alarm / security system standby | ~0.3–1A | ~9–30 hours |
| Emergency lighting backup | ~2–4A | ~2–4.5 hours |
| UPS backup — light load | ~1–2A | ~4.5–9 hours |
| Remote monitoring / trail cameras | ~0.3–1A | ~9–30 hours |
| Access control / communications | ~0.5–1.5A | ~6–18 hours |
Runtime figures are based on 100% usable depth of discharge. The CLI9-12 maintains stable voltage throughout the discharge cycle — consistent standby performance for alarm systems, emergency lighting, and instrumentation loads from start to finish.

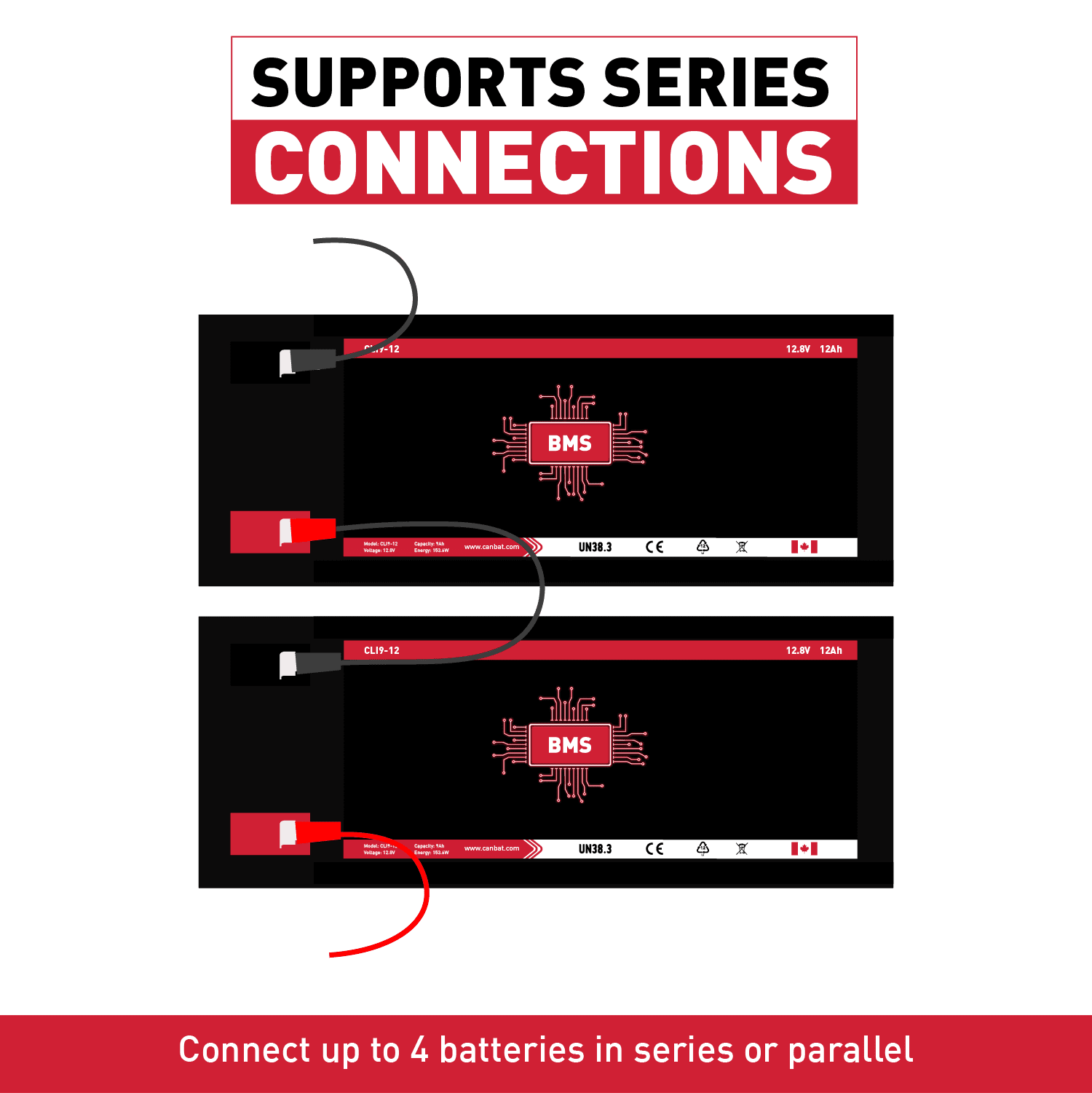

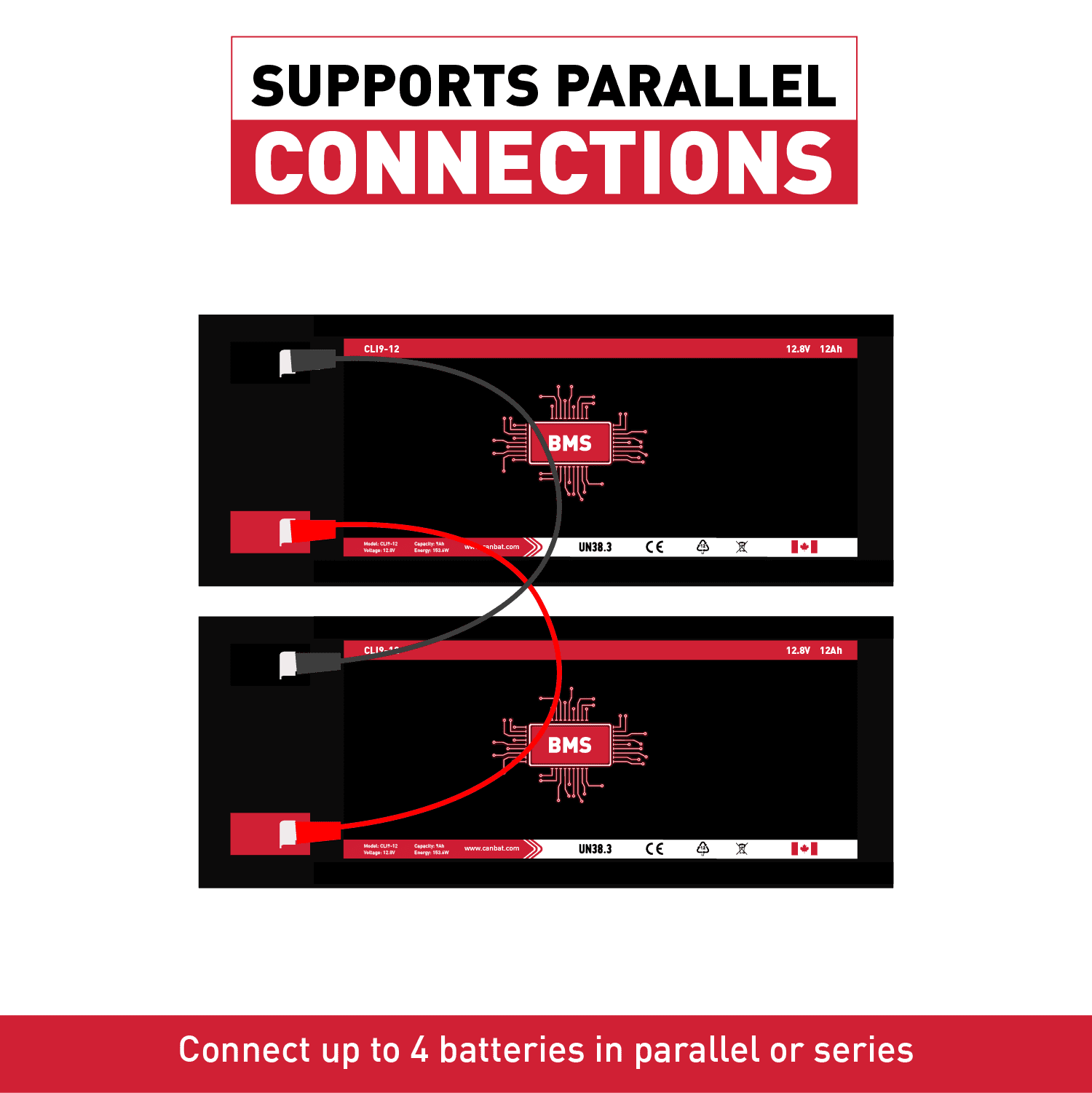

Series & Parallel Expandability
The CLI9-12 supports both series and parallel connections — up to 4 units in either configuration — for systems requiring greater backup capacity or higher system voltage.
| Configuration | Units | System Voltage | Total Capacity |
|---|---|---|---|
| Single unit | 1 | 12V | 9Ah / 115.2Wh |
| Parallel x2 | 2 | 12V | 18Ah / 230.4Wh |
| Parallel x4 (max) | 4 | 12V | 36Ah / 460.8Wh |
| Series x2 | 2 | 24V | 9Ah / 230.4Wh |
| Series x4 (max) | 4 | 48V | 9Ah / 460.8Wh |
The CLI9-12’s modular architecture supports the full range of 12V, 24V, 36V, and 48V system configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | CLI9-12 |
| Chemistry | Lithium Iron Phosphate (LiFePO4) — Cylindrical cells |
| Nominal Voltage | 12V (12.8V nominal) |
| Capacity | 9Ah |
| Energy | 115.2Wh |
| Cycle Life | 3,000–5,000 cycles at 100% DoD |
| Max Continuous Discharge | 9A |
| Peak Discharge | 35A for 3 seconds |
| Max Charge Current | 9A (recommended 4.5A) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| IP Rating | IP54 — splash and dust resistant |
| Weight | 2.8 lbs (1.27 kg) |

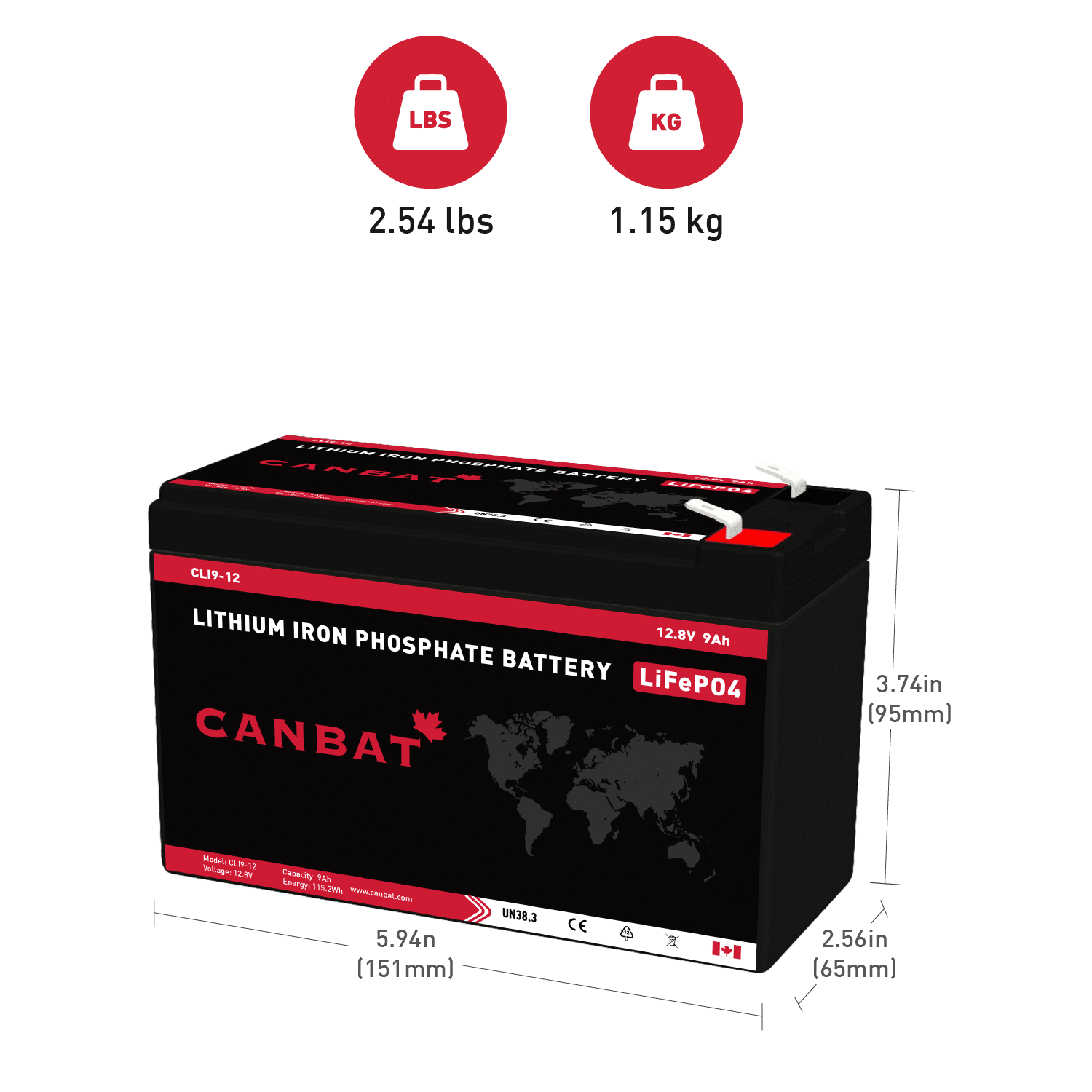

| Dimensions (L x W x H) | 151 x 65 x 95 mm / 5.95 x 2.6 x 3.74 in |
| Terminal Type | F2 (T2) blade terminals — direct SLA connector compatibility |
| Mounting | Upright or on side |
| Parallel Expansion | Up to 4 units (36Ah / 12V maximum) |
| Series Expansion | Up to 4 units (24V, 36V, or 48V systems) |
| BMS Protection | Over-charge, over-discharge, short circuit, over-current, temperature extremes, cell balancing |
| Bluetooth Monitoring | Optional add-on (Canbat BT app — free for iOS and Android) |
| Storage | Store at 80–100% SoC in a cool, dry environment |
| Certification | UL 1642 certified cells |
| Warranty | 10 years |
| Shipping | Ships across Canada — no import duties across Canada and the USA |
Battery Management System and Bluetooth Monitoring
The CLI9-12’s integrated BMS manages cell-level protection and balancing automatically — no external battery management required.
- Over-discharge protection — prevents cell damage from excessive depth of discharge
- Over-charge protection — disconnects at the correct voltage ceiling
- Short circuit and over-current protection — responds within milliseconds
- High-temperature cutoff — protects cells during charging in hot environments
- Cell balancing — maintains consistency across cells over thousands of cycles
The optional Bluetooth add-on connects the battery to the free Canbat BT app, available for iOS and Android. Monitor state of charge, voltage, current, and cell temperature in real time — useful for standby backup installations and remote deployments where direct battery access requires scheduled service.
System Compatibility and Installation
The CLI9-12 is compatible with any charger or charge controller that supports a LiFePO4 charging profile. When replacing a sealed lead-acid battery, verify that the charging system’s voltage settings are configured for lithium — most modern UPS units, alarm panel chargers, and trickle chargers include a lithium or adjustable voltage setting. F2 (T2) blade terminals connect directly to existing SLA battery harnesses. The battery installs upright or on its side in the same physical enclosure as a 12V 9Ah SLA battery.
For compatibility questions or system sizing assistance, Canbat’s Canadian technical team is available by phone, email, and live chat.
Canadian Supply, Support and Warranty
Canbat is a Canadian battery manufacturer. The CLI9-12 ships to any address in Canada and the USA. Canadian and US buyers pay no import duties and face no cross-border complications on their orders.
The CLI9-12 is backed by a 10-year warranty and supported by a Canadian technical team available by phone, email, and live chat. Warranty claims can be submitted directly with Canbat — with no overseas support queues and no runaround.
