Description

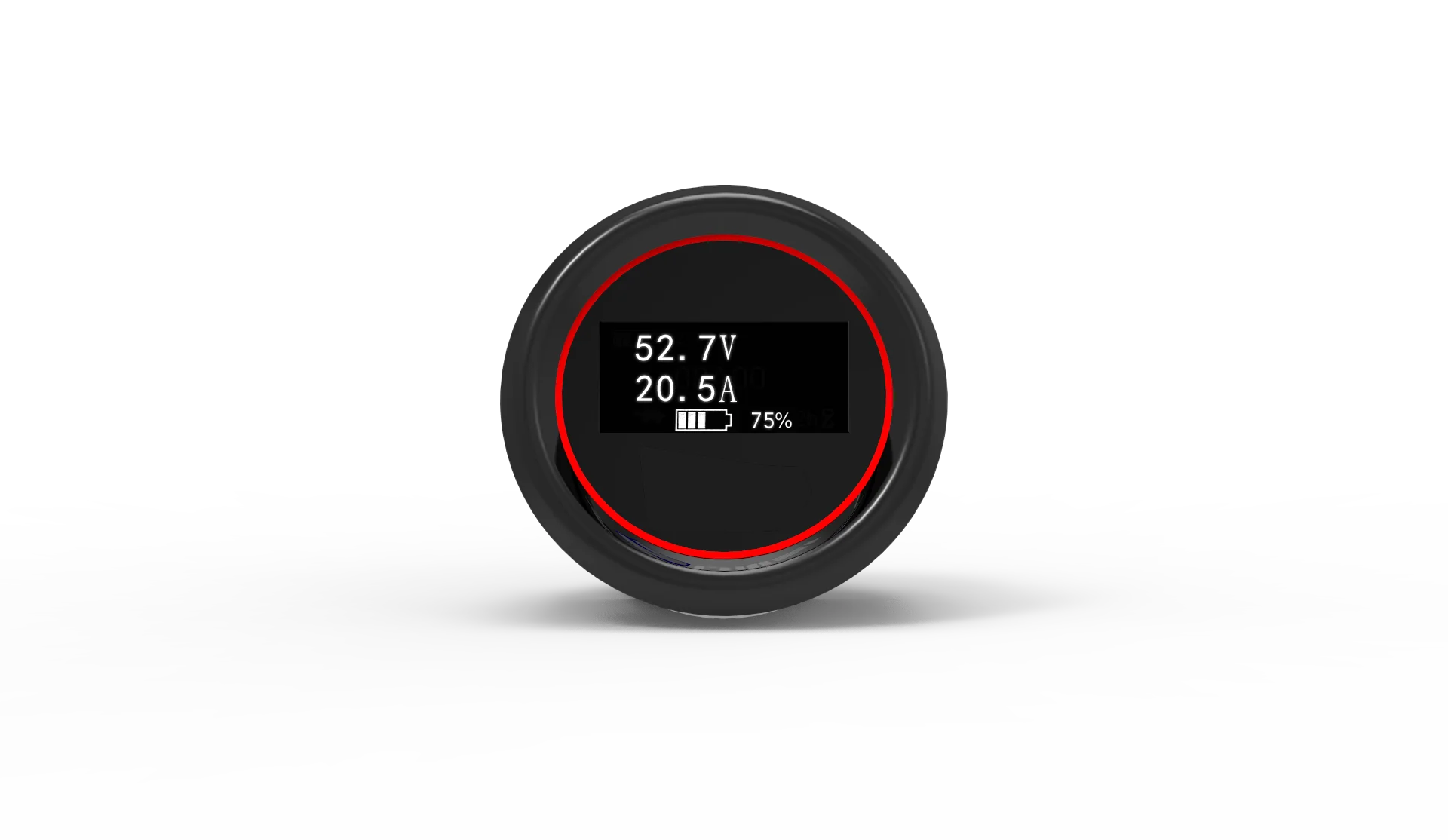

CANBAT GC2 FUEL GAUGE is a monitoring device exclusively designed for the Canbat GC2 Lithium Battery. The gauge utilizes CANBUS communication
with the battery to display SOC, current, voltage, fault codes and other real-time information to help you make the most of your battery. The fuel gauge is easy to install and is connected directly to the Canbat GC2 battery. The needed cables are included.

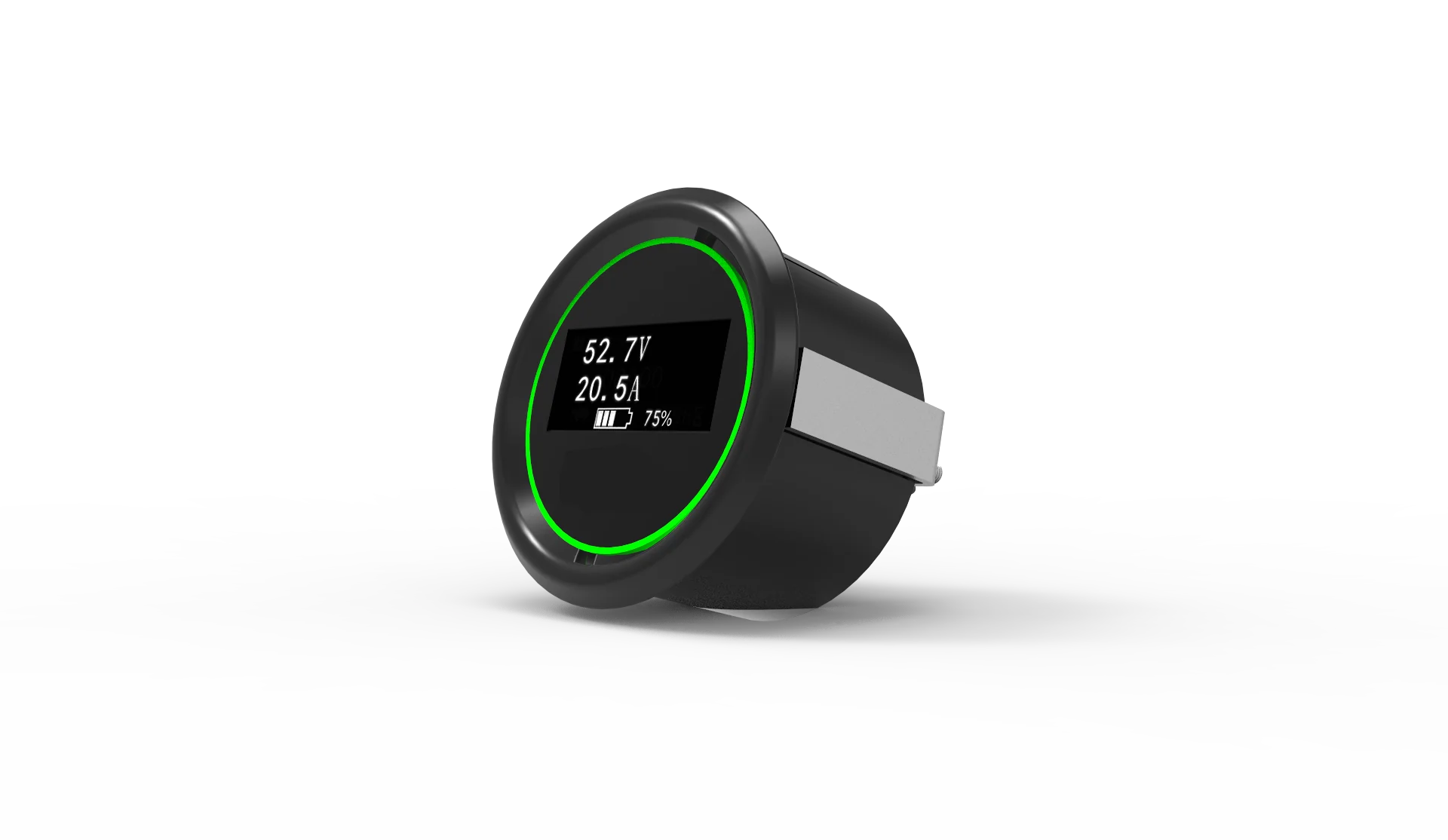

The fuel gauge features an elegant and sophisticated design, complemented by distinctive and visually engaging running instructions and alarm indicators. The front bezel incorporates LED warning lights, providing clear and immediate feedback on the vehicle’s status to the driver. Additionally, the trouble code prompts offer targeted diagnostics, identifying fault sources, analyzing their causes, and delivering efficient, time-saving solutions for vehicle issues. The system also provides intuitive feedback on key metrics such as battery State of Charge (SOC), current, voltage, and additional information, including time, power levels, and operating mode, enabling an enhanced and efficient human-machine interaction.
Each Canbat GC2 lithium battery is equipped with two communication ports that operate using the CANbus (Controller Area Network) protocol. This protocol enhances the system’s efficiency, reliability, and safety, and is also responsible for monitoring the State of Charge (SOC) of the battery. Included with the battery meter is a 120 resistor, which serves as a terminator. This resistor should be installed on the battery opposite the fuel gauge, as shown in the image below. The fuel gauge itself is powered by the same battery to which it is connected. Some people prefer to get a separate small battery to power the fuel gauge. The advantage is to minimize imbalance between the GC2 batteries connected in the bank. However, since the fuel gauge has a very low draw, this isn’t a major concern, especially with the batteries having communication with each other with the ability to self-balance.
