Parallel Wiring Kit

Parallel Wiring Kit

The parallel wiring kit is designed to expand the capacity of the CLI100-48LT 48V 100Ah cold weather lithium battery by enabling safe and reliable parallel connections. With Amphenol-style high-current connectors on the positive and negative cables, installation is fast, secure, and maintenance-free.

This kit also includes a dedicated grounding cable to ensure proper system bonding, along with a communication cable that keeps each battery’s BMS synchronized when operating in parallel. For customers using rack systems, optional float nuts and screws are included to simplify installation, though they are not required for floor-mounted setups.

Key Features:

• Parallel wiring kit for Canbat CLI100-48LT 48V 100Ah lithium battery

• Amphenol-style connectors on positive and negative cables for quick, safe plug-and-play connections

• Standard insulated grounding cable for reliable system bonding

• Dedicated communication cable for stable BMS-to-BMS communication

• Includes optional rack-mount hardware (float nuts + screws) for professional installations

• Engineered for safety, durability, and system scalability

Applications:

• Renewable energy storage (solar, wind, off-grid)

• Data centers and telecom backup systems

• Industrial and commercial battery banks

• Large residential energy storage requiring parallel expansion

Technical Details:

• SKU: CLI100-48PC

• Battery compatibility: Canbat CLI100-48LT (48V 100Ah cold weather lithium battery)

• Connector type:

  • Amphenol-style connectors (positive & negative parallel cables)

  • Standard cable with crimped lugs (grounding cable)

• Nominal voltage & capacity supported: 48V, 100Ah per module (parallel expansion)

• Battery chemistry: Lithium Iron Phosphate (LiFePO₄), non-spillable, maintenance-free

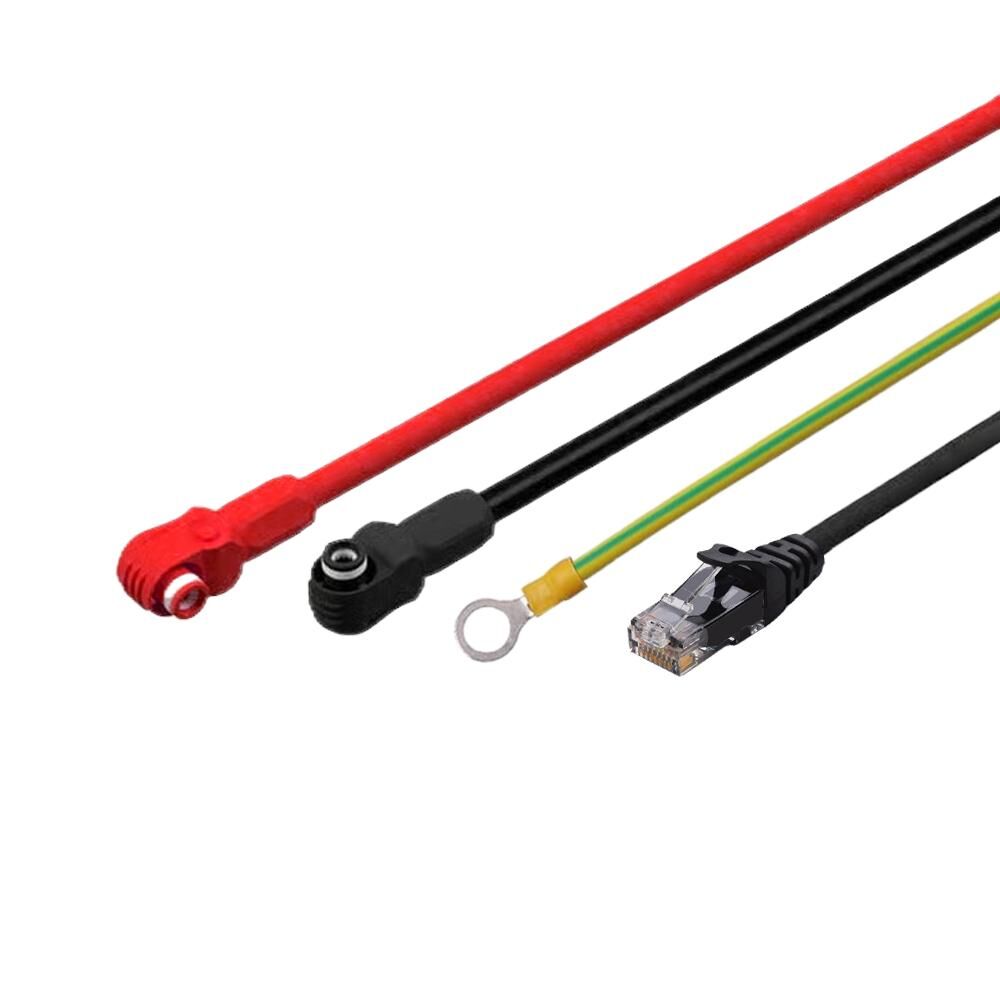

• Cables included:

  • 1 × Positive parallel cable (10 inches, Amphenol-style)

  • 1 × Negative parallel cable (10 inches, Amphenol-style)

  • 1 × Grounding cable (12 inches, insulated with crimped lugs)

  • 1 × Communication cable (10 inches)

• Mounting hardware (optional): 6 × Float Nuts (M6), 4 × Combination Screws (optional to use, rack installation only)

• Environmental compliance: RoHS; recyclable where applicable
