Description

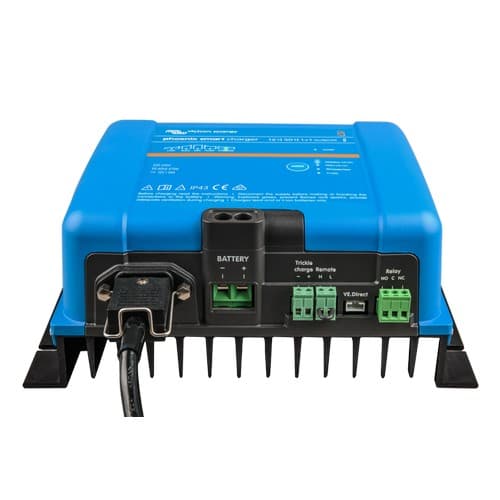

🔋 Victron Phoenix Smart IP43 Charger 24V 16A – PSC241651095
Victron Phoenix Smart IP43 Charger 24V 16A is a premium-grade, Bluetooth-enabled multi-bank charger designed for reliable charging of 24V lithium and lead-acid batteries. With advanced adaptive charging, a rugged IP43-rated housing, and full VictronConnect app integration, it’s ideal for marine, RV, off-grid, and backup power applications.
This smart charger delivers up to 16 amps across 1 or 3 battery outputs and adjusts its charge cycle in real time based on battery condition and usage. Whether for daily use or standby systems, the Phoenix Smart IP43 ensures long battery life, efficient energy transfer, and easy remote monitoring.
✅ Key Features
Smart 24V / 16A charging with multi-bank output capability
Bluetooth connectivity for real-time monitoring and configuration
Adaptive 6-stage charging algorithm optimized for lithium, AGM, GEL, and flooded batteries
Wide input range (120–240V AC) with global compatibility
Silent and efficient operation with up to 95% efficiency
Durable IP43-rated aluminum housing suitable for marine and mobile installations
Programmable relay and remote on/off support for advanced system integration
📊 Technical Specifications
| Feature | Details |
|---|---|
| Model | PSC241651095 |
| Input Voltage | 85–265V AC (45–65Hz) |
| Output Voltage | 24V DC |
| Max Output Current | 16A |
| Outputs | 1 to 3 battery banks (shared current) |
| Charging Algorithm | 6-stage adaptive (LiFePO₄ compatible) |
| Efficiency | Up to 95% |
| Connectivity | Bluetooth + VE.Direct |
| Protection Rating | IP43 housing / IP22 connections |
| Dimensions | 246 × 180 × 115 mm |
| Weight | 3 kg |
🛠 Ideal Applications
Marine and sailboat battery charging
RV and camper 24V systems
Solar energy storage and off-grid power
Workshop and fleet maintenance
Backup energy systems with lithium or AGM banks
