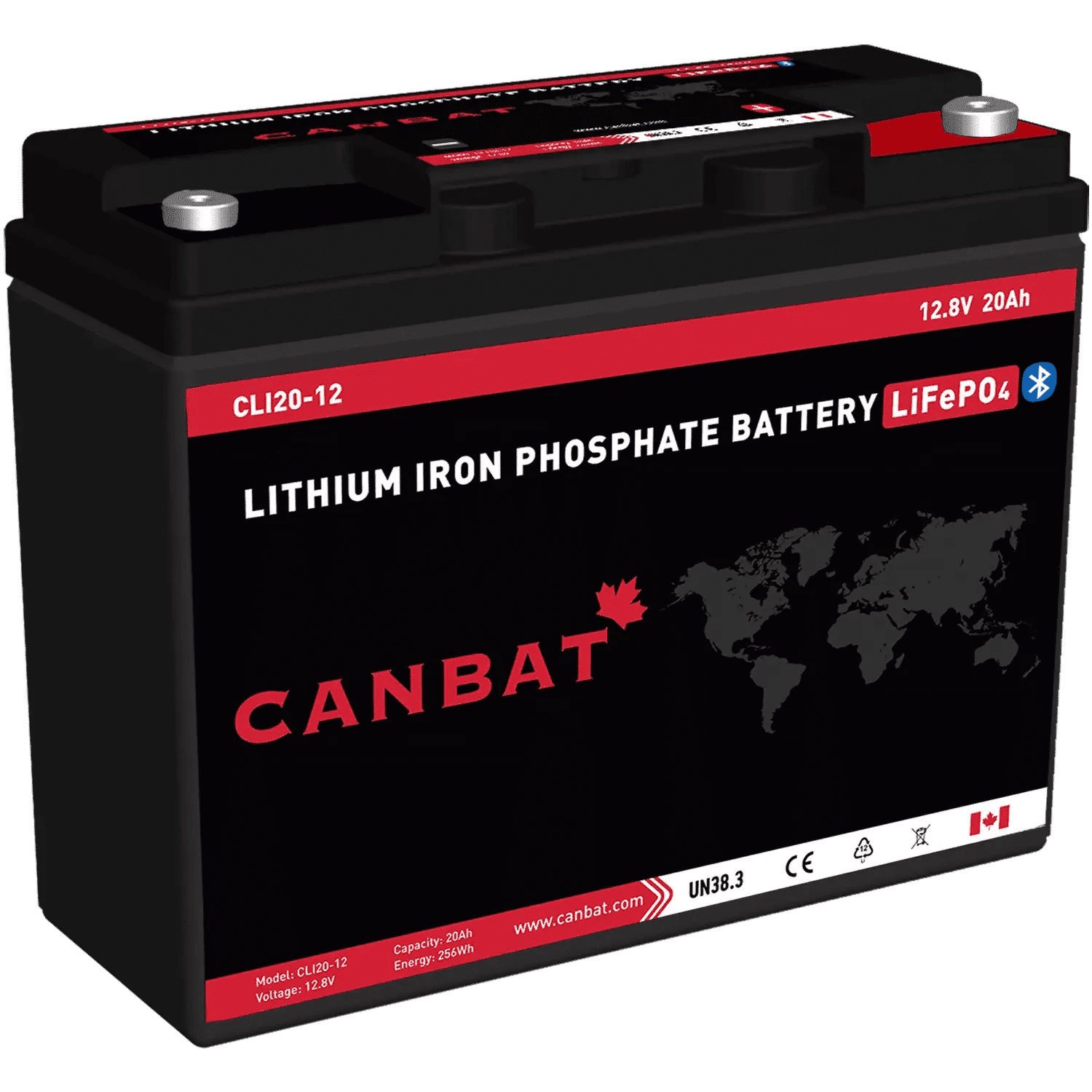

12V 20Ah Lithium Battery — CLI20-12
The Canbat CLI20-12 is a 12V 20Ah lithium battery delivering 256Wh of usable LiFePO4 energy in a compact 182 × 77 × 168 mm footprint at just 5.5 lbs (2.49 kg) — a compact utility and auxiliary lithium platform engineered for remote monitoring systems, field instrumentation, communications equipment, access control systems, compact surveillance systems and sealed lead-acid replacement applications where long service life, low maintenance, and compact deployment define the specification. At 5.5 lbs, it is one of the most compact and lightweight LiFePO4 batteries in the Canbat standard lineup, purpose-built for low-to-moderate draw auxiliary deployments where size, weight, and long-term reliability define the requirement.
The CLI20-12 is designed as a direct replacement for 12V 20Ah sealed lead-acid batteries across a wide range of commercial, industrial, and infrastructure applications — delivering twice the usable energy of a comparable SLA battery at a fraction of the weight, with 3,000–5,000 cycle life that significantly extends the service interval between battery replacements compared to lead-acid alternatives.
It ships free across Canada and the USA, carries a 10-year warranty, and is built with UL 1642 certified cells. For Canada and USA orders, there are no import duties or cross-border complications.
The Lithium Upgrade from Sealed Lead-Acid
Sealed lead-acid batteries at 20Ah nominal deliver approximately 10Ah of usable energy before the 50% depth-of-discharge limit that protects their cycle life — and typically provide 300–500 cycles before capacity degrades to the point of replacement. The CLI20-12 delivers its full 20Ah at 100% usable depth of discharge on every cycle, with 3,000–5,000 cycle life that represents a ten-fold or greater improvement in service life over comparable SLA batteries in the same capacity range.
For commercial and infrastructure applications where battery replacement requires a service visit, scheduled maintenance, or field technician deployment, the CLI20-12’s extended cycle life directly reduces total cost of ownership — fewer replacement events, fewer service calls, and lower long-term energy storage costs despite a higher upfront investment than SLA alternatives.
At 5.5 lbs (2.49 kg), the CLI20-12 weighs significantly less than a sealed lead-acid battery of comparable capacity — reducing equipment weight, improving portability, and simplifying installation in weight-sensitive or access-constrained deployments.
Applications
Remote Monitoring & Field Instrumentation
The CLI20-12 is well suited for remote monitoring stations, environmental sensing arrays, weather instruments, pipeline monitoring equipment, and field data collection systems requiring a compact, reliable 12V power source with minimal maintenance overhead. Its low self-discharge rate — under 3% per month — supports installations that operate unattended for extended periods between service visits, and its 3,000–5,000 cycle life reduces the frequency of battery replacement in remote or difficult-to-access locations.
Access Control, Security & Communications
For access control systems, compact security installations, alarm panels, gate operators, and portable communications equipment where a sealed lead-acid battery is the conventional power source, the CLI20-12 provides a direct lithium upgrade — same voltage, significantly lower weight, longer service life, and maintenance-free operation that eliminates the periodic replacement cycles required by SLA alternatives in comparable applications.
Mobile Equipment & Auxiliary Power
For compact mobile equipment platforms, robotic systems, mobile service equipment, traffic control devices, and auxiliary power systems in service vehicles where physical size and deployment weight are constrained, the CLI20-12 delivers lithium performance in a form factor that replaces conventional SLA batteries without requiring changes to the surrounding equipment architecture.
Marine Electronics & Compact Auxiliary Systems
For compact marine electronics installations — dedicated fishfinder banks on kayaks, small vessel navigation electronics, and compact auxiliary loads — the CLI20-12 provides reliable all-day energy reserve in a lightweight sealed unit. No off-gassing, no terminal corrosion, and no maintenance in confined compartments.
12V 20Ah Lithium Battery for Monitoring, Access Control & Auxiliary Systems
The CLI20-12 is Canbat’s compact utility lithium battery — designed for buyers sourcing a 12V 20Ah lithium battery for remote monitoring systems, access control equipment, communications infrastructure, compact mobile platforms, and sealed lead-acid replacement applications requiring long service life, maintenance-free operation, and reliable performance in compact deployments.
For Canadians sourcing a 12V 20Ah lithium battery, the CLI20-12 ships free with no import duties, is backed by a Canadian technical team, and carries a 10-year warranty. Compatible with all major chargers and charge controllers that support a LiFePO4 charging profile.
Runtime & Performance
The CLI20-12 delivers 256Wh of usable energy at 12V nominal — all accessible at 100% depth of discharge with stable voltage throughout:
| Application / Load | Average Draw | Estimated Runtime |
|---|---|---|
| Remote monitoring / instrumentation | ~0.5–2A | ~10–40 hours |
| Access control / security systems | ~1–3A | ~6–20 hours |
| Portable communications equipment | ~1–3A | ~6–20 hours |
| Marine fishfinder + nav lights | ~3–5A | ~4–6 hours |
| LED lighting & low-draw electronics | ~2–4A | ~5–10 hours |
Runtime figures are based on 100% usable depth of discharge. The CLI20-12 maintains stable voltage throughout the discharge cycle — consistent performance for electronics and instrumentation loads from start to finish.

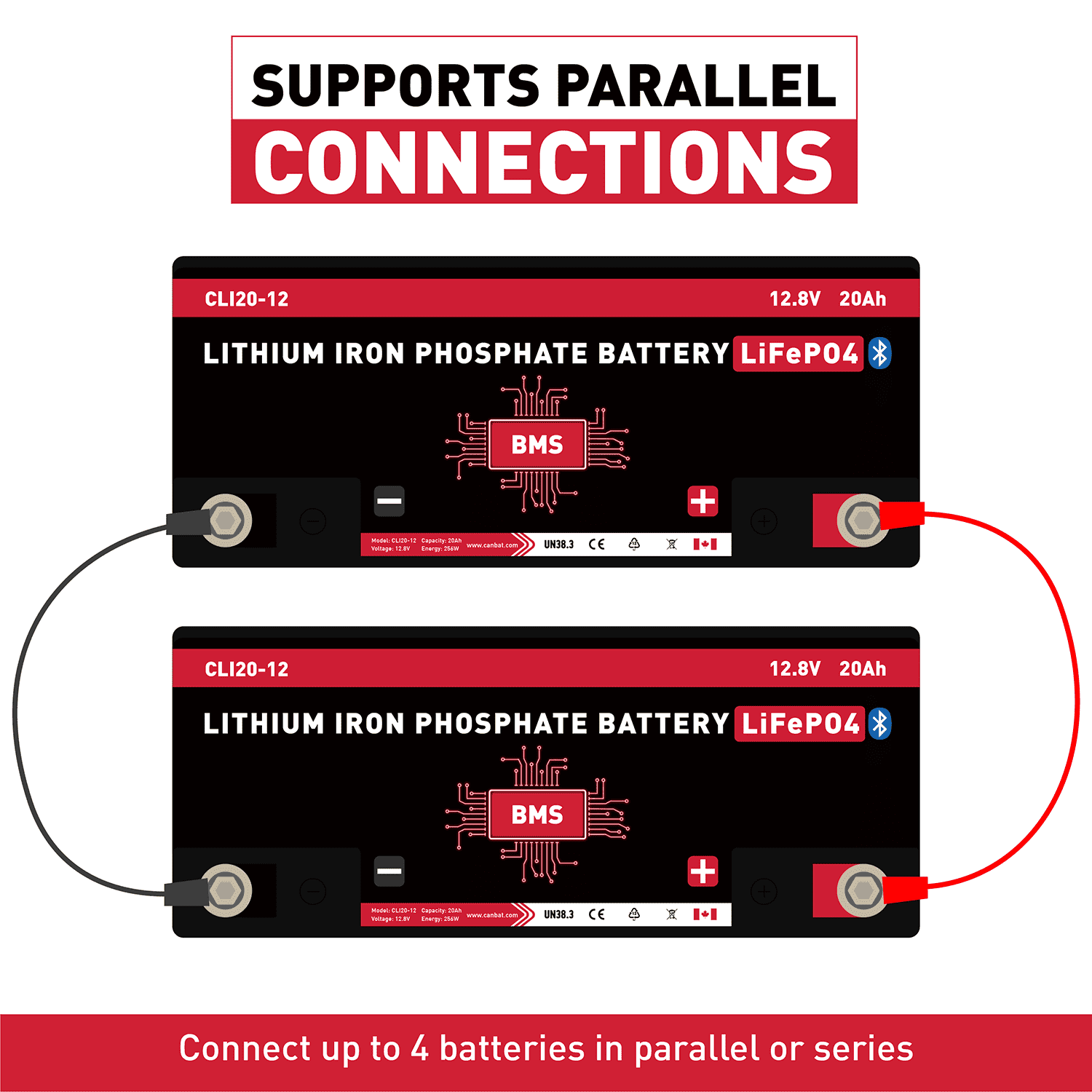

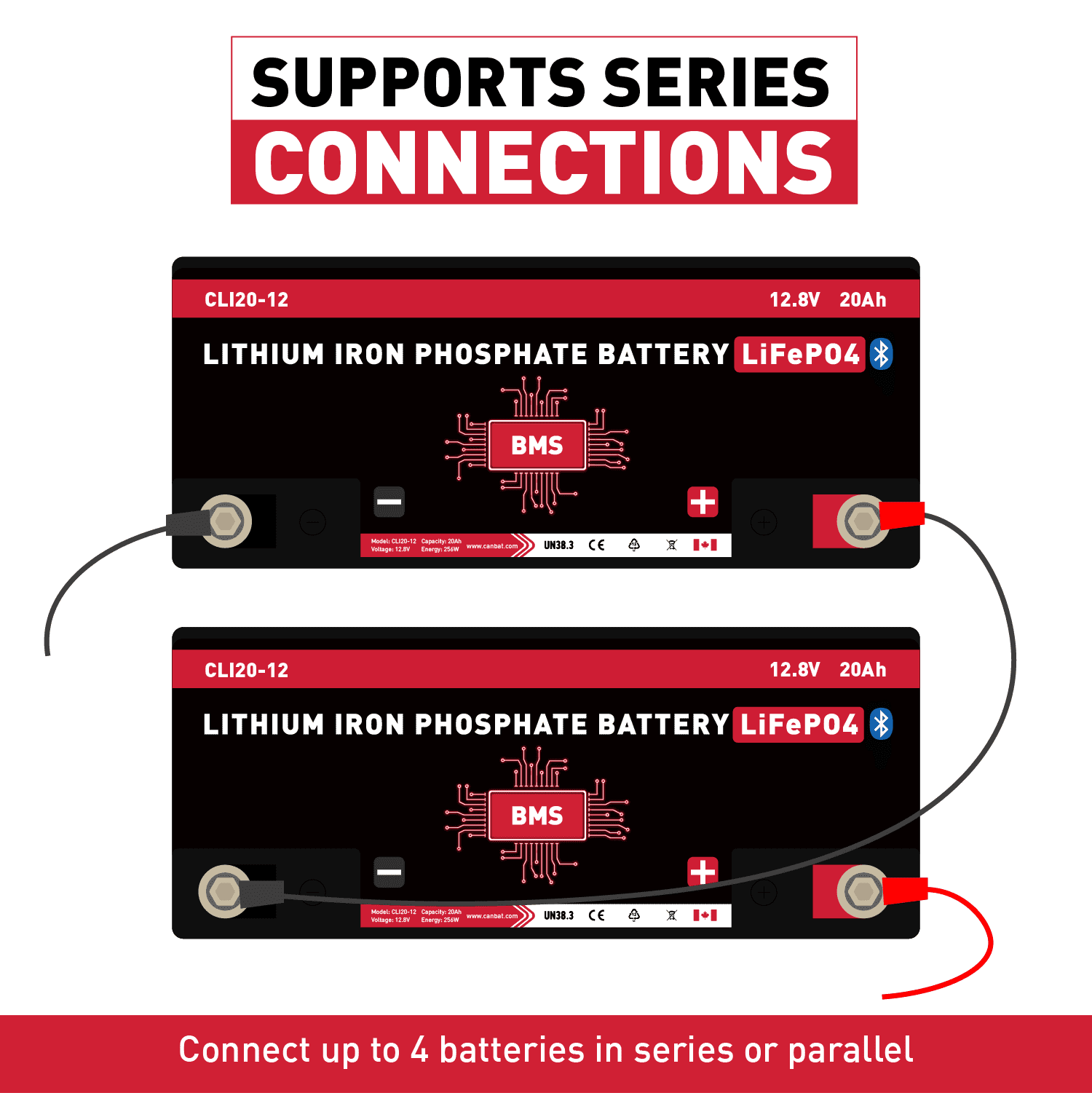

Series & Parallel Expandability
The CLI20-12 supports both series and parallel connections — up to 4 units in either configuration — for systems requiring greater capacity or higher system voltage.
| Configuration | Units | System Voltage | Total Capacity |
|---|---|---|---|
| Single unit | 1 | 12V | 20Ah / 256Wh |
| Parallel x2 | 2 | 12V | 40Ah / 512Wh |
| Parallel x3 | 3 | 12V | 60Ah / 768Wh |
| Parallel x4 (max) | 4 | 12V | 80Ah / 1,024Wh |
| Series x2 | 2 | 24V | 20Ah / 512Wh |
| Series x3 | 3 | 36V | 20Ah / 768Wh |
| Series x4 (max) | 4 | 48V | 20Ah / 1,024Wh |
The CLI20-12’s modular architecture supports the full range of 12V, 24V, 36V, and 48V system configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | CLI20-12 |
| Chemistry | Lithium Iron Phosphate (LiFePO4) — Cylindrical cells |
| Nominal Voltage | 12V (12.8V nominal) |
| Capacity | 20Ah |
| Energy | 256Wh |
| Cycle Life | 3,000–5,000 cycles at 100% DoD |
| Max Continuous Discharge | 20A |
| Peak Discharge | 80A for 3 seconds |
| Max Charge Current | 20A (recommended 10A) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| IP Rating | IP54 — splash and dust resistant |
| Weight | 5.5 lbs (2.49 kg) |

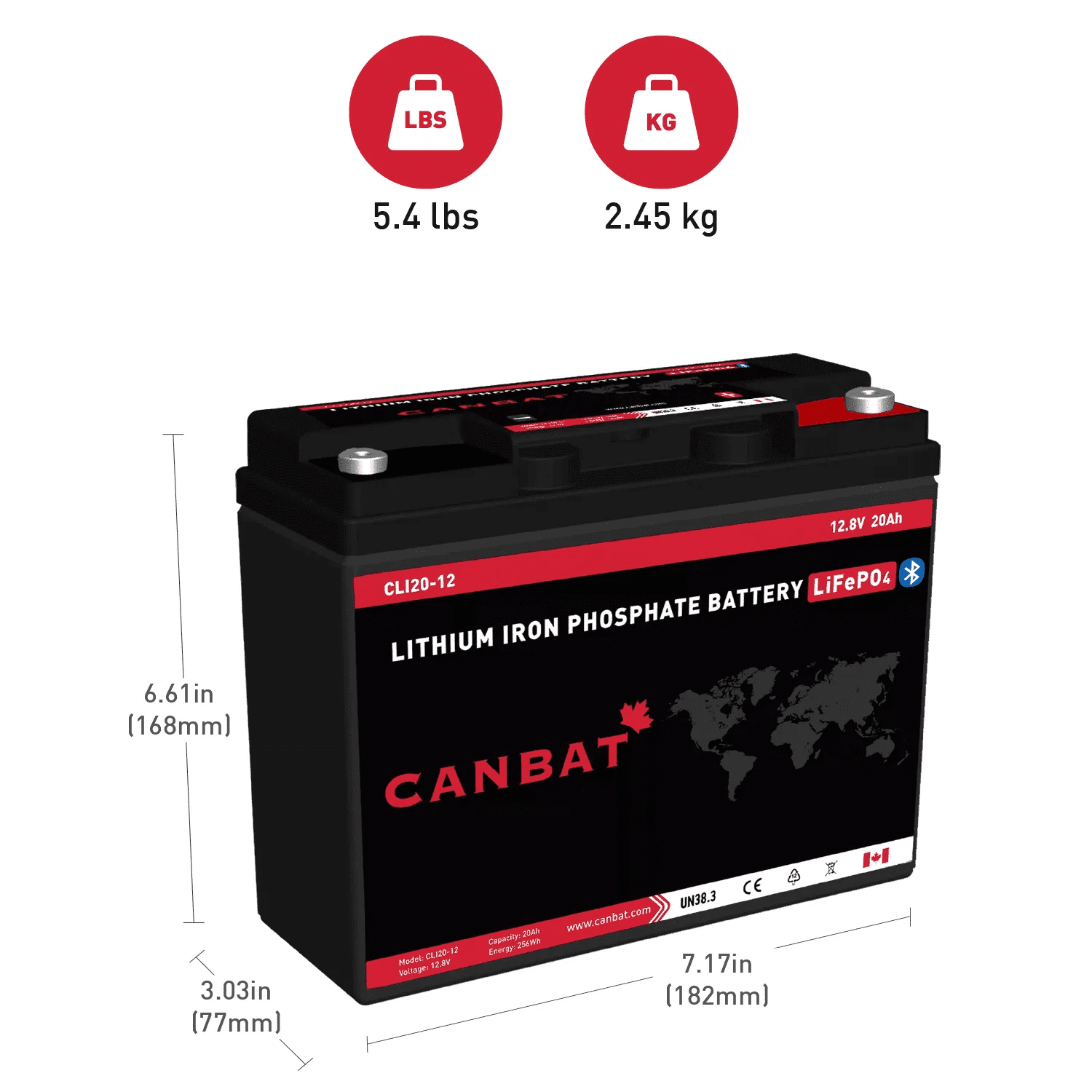

| Dimensions (L x W x H) | 182 x 77 x 168 mm / 7.17 x 3.03 x 6.61 in |
| Terminal Type | M6 / 1 — bolts included |
| Mounting | Upright or on side |
| Parallel Expansion | Up to 4 units (80Ah / 12V maximum) |
| Series Expansion | Up to 4 units (24V, 36V, or 48V systems) |
| BMS Protection | Over-charge, over-discharge, short circuit, over-current, temperature extremes, cell balancing |
| Bluetooth Monitoring | Optional add-on (Canbat BT app — free for iOS and Android) |
| Storage | Store at 80–100% SoC in a cool, dry environment |
| Certification | UL 1642 certified cells |
| Warranty | 10 years |
| Shipping | Free across Canada and USA — no import duties |

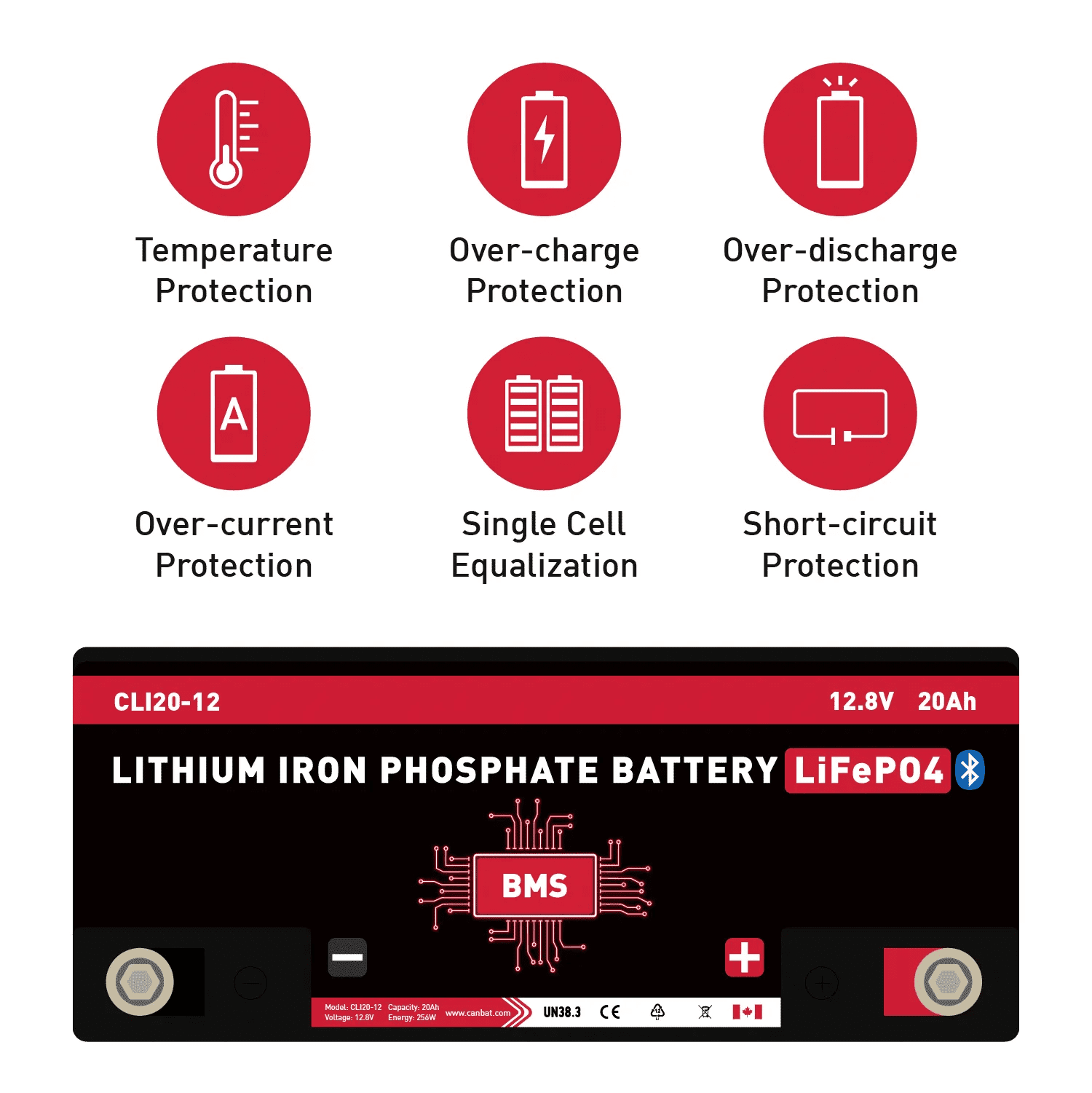

Battery Management System and Bluetooth Monitoring
The CLI20-12’s integrated BMS manages cell-level protection and balancing automatically — no external battery management required.
- Over-discharge protection — prevents cell damage from excessive depth of discharge
- Over-charge protection — disconnects at the correct voltage ceiling
- Short circuit and over-current protection — responds within milliseconds
- High-temperature cutoff — protects cells during charging in hot environments
- Cell balancing — maintains consistency across cells over thousands of cycles
The optional Bluetooth add-on connects the battery to the free Canbat BT app, available for iOS and Android. Monitor state of charge, voltage, current, and cell temperature in real time — useful for remote monitoring deployments and installations where direct battery access is limited.
System Compatibility and Installation
The CLI20-12 is compatible with any charger, solar charge controller, or inverter/charger that supports a LiFePO4 charging profile. When replacing a sealed lead-acid battery, verify that the charging system’s voltage settings are configured for lithium — most modern chargers include a LiFePO4 preset or adjustable voltage settings. M6 terminals with bolts are included. The battery installs upright or on its side.
For system sizing assistance or compatibility questions, Canbat’s Canadian technical team is available by phone, email, and live chat.
Canadian Supply, Support and Warranty
Canbat is a Canadian battery manufacturer. The CLI20-12 ships free to any address in Canada and the USA. Canadian and US buyers pay no import duties and face no cross-border complications on their orders.
The CLI20-12 is backed by a 10-year warranty and supported by a Canadian technical team available by phone, email, and live chat. Warranty claims can be submitted directly with Canbat — with no overseas support queues and no runaround.
