Description

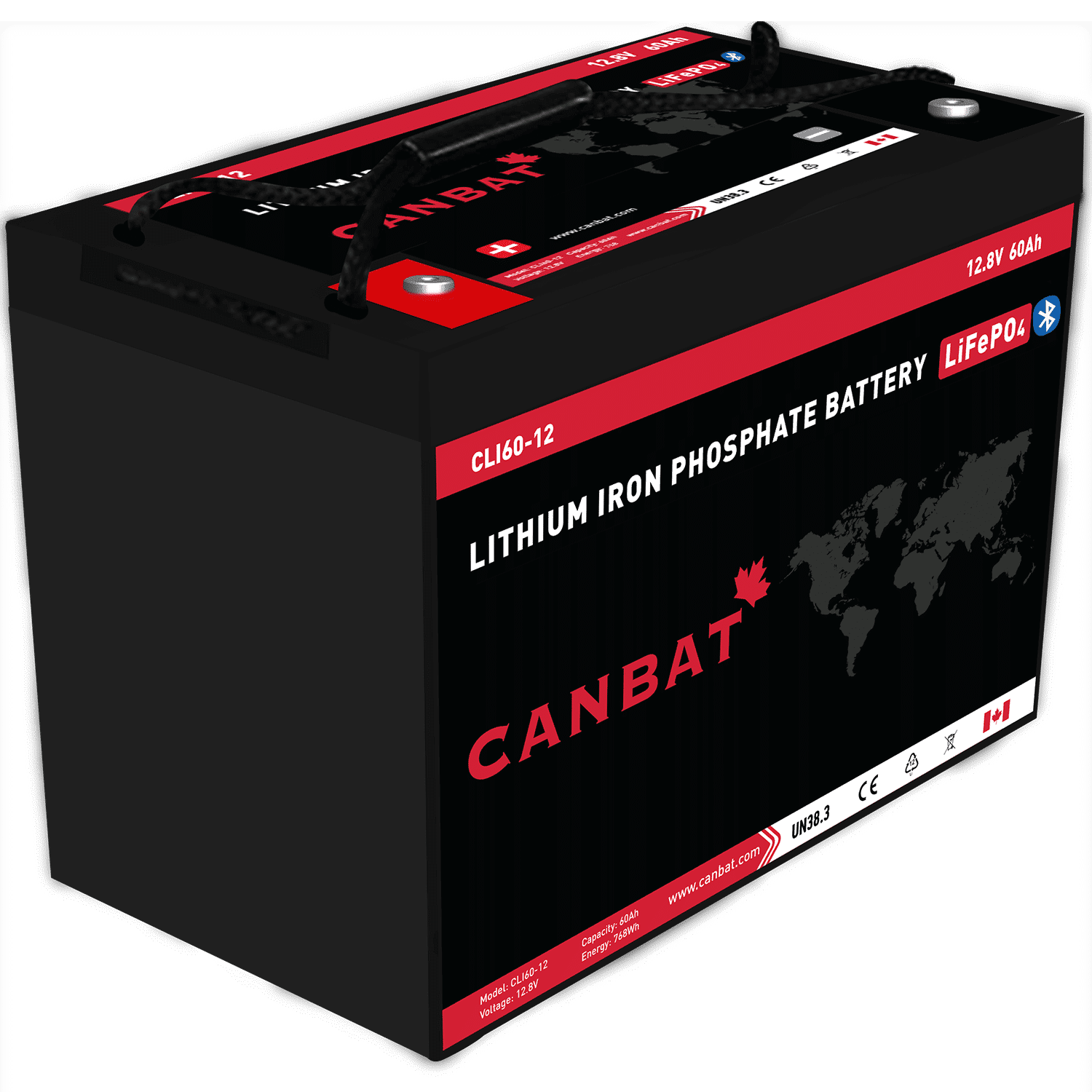

12V 60Ah Lithium Battery — CLI60-12
The Canbat CLI60-12 is a 12V 60Ah lithium battery delivering 768Wh of usable LiFePO4 energy in a compact Group 24 footprint — built for trolling motors, smaller marine systems, compact RV and van builds, portable solar setups, and moderate-demand deep cycle applications where weight and installation space are the primary constraints. At just 17.8 lbs (8.07 kg), it is one of the lightest mid-capacity 12V lithium batteries in the Canbat lineup, delivering reliable deep cycle performance in a genuinely portable, maintenance-free unit.
The CLI60-12 is a direct drop-in replacement for Group 24 lead-acid batteries — same footprint, significantly less weight, and substantially more usable energy than the AGM or flooded batteries it replaces. For buyers who need dependable lithium deep cycle performance in a compact, lightweight format without paying for more capacity than their application requires, the CLI60-12 is the correct specification.
It ships free across Canada and the USA, carries a 10-year warranty, and is built with UL 1642 certified cells. For Canada and USA orders, there are no import duties or cross-border complications.
768Wh in a Compact Group 24 Footprint — At Just 17.8 lbs
Group 24 is a widely used battery format in smaller marine, RV, and portable power applications. The CLI60-12 fits any standard Group 24 tray, box, or hold-down directly — no modifications required, no new hardware needed. Its 260 × 168 × 213 mm footprint makes it compatible with the vast majority of Group 24 battery compartments found in fishing boats, smaller sailboats, compact travel trailers, and portable power systems.
A standard Group 24 AGM battery at 60Ah nominal typically delivers around 30Ah of usable energy before reaching its depth-of-discharge limit. The CLI60-12 delivers its full 60Ah at 100% usable depth of discharge — twice the accessible energy from the same physical footprint, with stable voltage maintained throughout the entire discharge cycle.
At 17.8 lbs (8.07 kg), it weighs significantly less than a comparable Group 24 AGM battery — a meaningful weight reduction for vessel performance, vehicle payload, and installation convenience. Light enough for a single person to carry and install without assistance.
Applications
Trolling Motors & Fishing Boats
The CLI60-12 is well suited for smaller trolling motor setups on kayaks, canoes, jon boats, and small fishing boats where weight is critical and a full-day trolling session at low to moderate speeds is the primary requirement. Its stable flat discharge voltage maintains consistent motor thrust throughout the day — unlike AGM batteries where voltage and thrust decline progressively as the battery depletes.
Smaller RV & Camping Systems
For teardrop campers, small travel trailers, and rooftop tent setups where battery compartment space is minimal, the CLI60-12 provides a useful overnight energy reserve for LED lighting, phone and device charging, a 12V fan, and small electronics — in a unit light enough to move easily during setup and teardown.
Portable Solar & Off-Grid Power
At 17.8 lbs, the CLI60-12 is genuinely portable — manageable by one person and compact enough to fit in a carry case, storage box, or under a seat. For portable solar systems, seasonal off-grid setups, and remote cabin auxiliary power, it provides meaningful energy storage without the weight and bulk of larger batteries.
Marine Electronics & House Banks
For smaller sailboats and powerboats running a dedicated electronics house bank — fishfinder, chartplotter, VHF, nav lights, and bilge pump — the CLI60-12 provides reliable overnight reserve in a sealed, maintenance-free Group 24 format. No off-gassing in enclosed compartments, no terminal corrosion, and no water to add.
Compact Van & Overland Builds
For compact car camping setups and smaller overland builds where auxiliary power requirements are modest — a portable fridge, lighting, device charging, and a fan — the CLI60-12 provides sufficient energy reserve in a unit that takes up minimal space and adds minimal weight to the build.
12V 60Ah Lithium Battery for Marine, RV & Portable Power
The CLI60-12 is Canbat’s lightweight compact deep cycle lithium battery in the Group 24 format — designed for buyers sourcing a 12V 60Ah lithium battery for trolling motors, smaller marine systems, compact RV setups, and portable solar applications where low weight, compact dimensions, and reliable deep cycle performance are the primary requirements.
For Canadians sourcing a 12V 60Ah lithium battery, the CLI60-12 ships free with no import duties, is backed by a Canadian technical team, and carries a 10-year warranty. Compatible with all major chargers and solar charge controllers that support a LiFePO4 charging profile. For systems requiring greater capacity in the same Group 24 footprint, the CLI75-12 offers 75Ah at the same dimensions.
Runtime & Performance
The CLI60-12 delivers 768Wh of usable energy at 12V nominal — all accessible at 100% depth of discharge on every cycle with stable voltage throughout:
| Application / Load | Average Draw | Estimated Runtime |
|---|---|---|
| LED lighting & device charging | 5–8A | 7–12 hours |
| Trolling motor — low speed | ~20–30A | ~2–3 hours |
| Marine electronics (nav, fishfinder, VHF) | ~8–12A | ~5–7 hours |
| 12V portable fridge | ~4–8A average | ~7–15 hours |
| Inverter — 150W load | ~13A | ~4.5 hours |
| Camping lighting + fan + devices | ~6–10A | ~6–10 hours |
Runtime figures are based on 100% usable depth of discharge. The CLI60-12 maintains stable voltage throughout the discharge cycle — consistent performance from the first hour to the last.

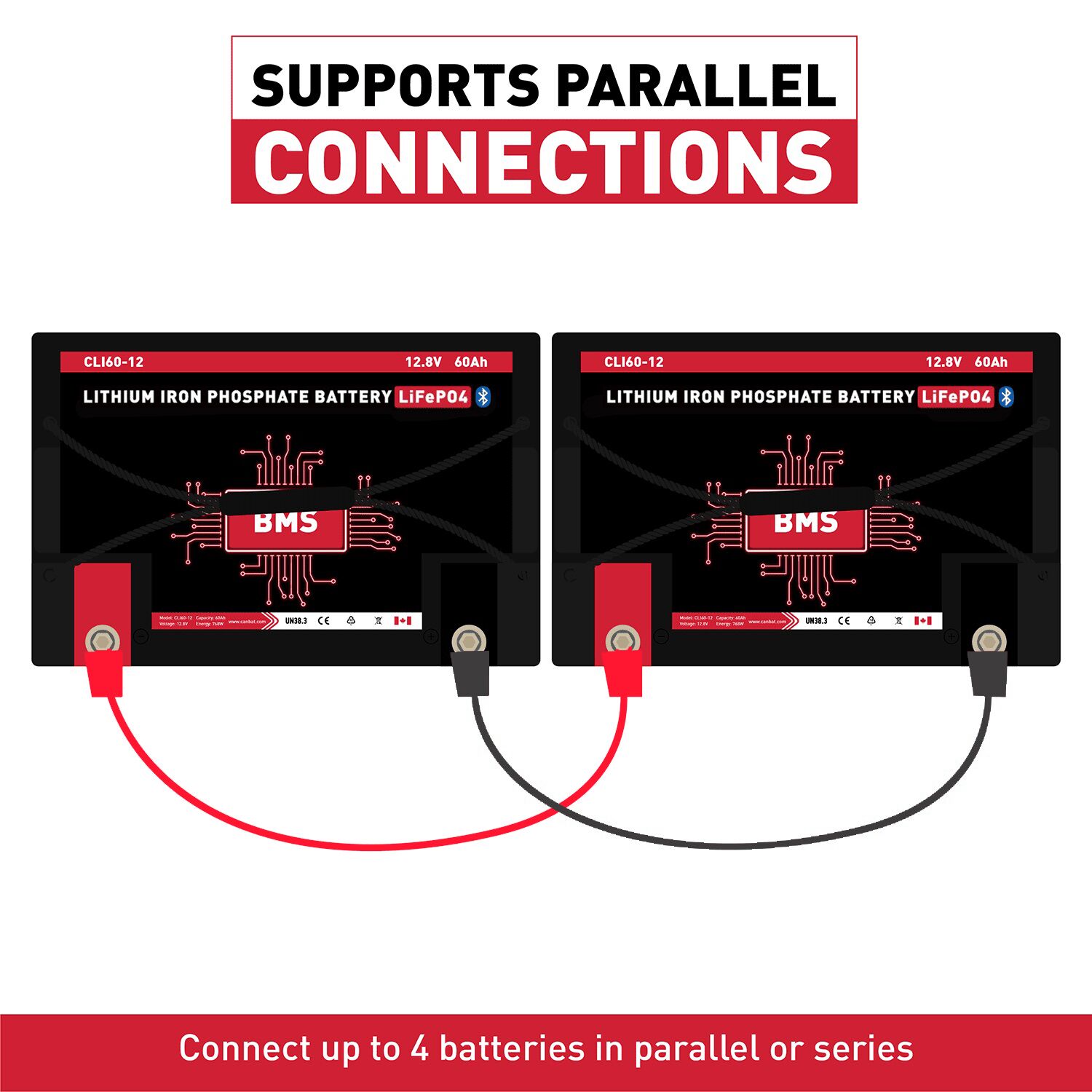

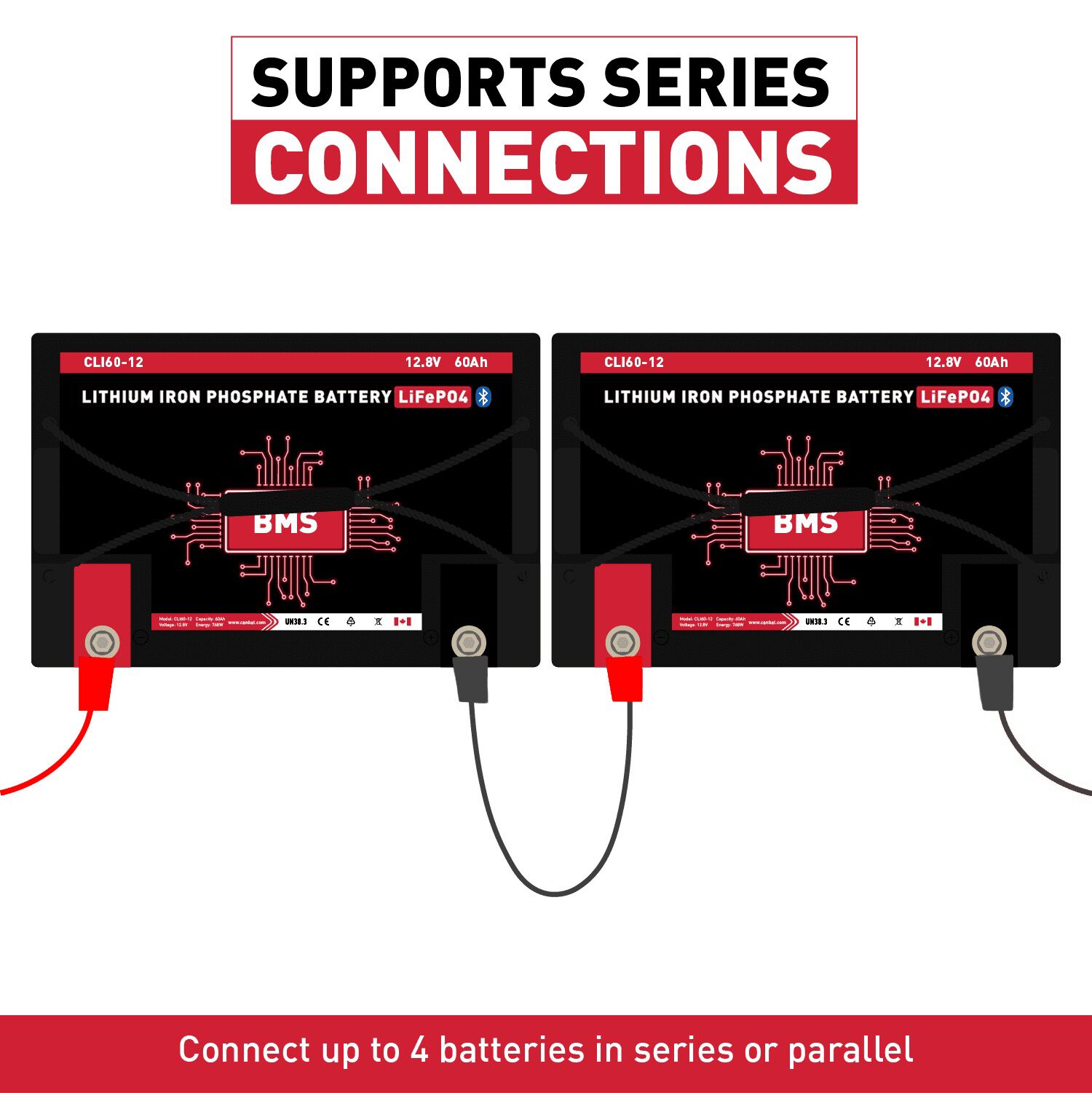

Series & Parallel Expandability
The CLI60-12 supports both series and parallel connections — up to 4 units in either configuration — allowing the system to scale as energy requirements grow.
| Configuration | Units | System Voltage | Total Capacity |
|---|---|---|---|
| Single unit | 1 | 12V | 60Ah / 768Wh |
| Parallel x2 | 2 | 12V | 120Ah / 1,536Wh |
| Parallel x3 | 3 | 12V | 180Ah / 2,304Wh |
| Parallel x4 (max) | 4 | 12V | 240Ah / 3,072Wh |
| Series x2 | 2 | 24V | 60Ah / 1,536Wh |
| Series x3 | 3 | 36V | 60Ah / 2,304Wh |
| Series x4 (max) | 4 | 48V | 60Ah / 3,072Wh |
Start with a single unit and expand as your system grows — the CLI60-12’s modular architecture supports the full range of 12V, 24V, 36V, and 48V system configurations.
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | CLI60-12 |
| Chemistry | Lithium Iron Phosphate (LiFePO4) — Prismatic cells |
| Nominal Voltage | 12V (12.8V nominal) |
| Capacity | 60Ah |
| Energy | 768Wh |
| Cycle Life | 3,000–5,000 cycles at 100% DoD |
| Max Continuous Discharge | 60A |
| Peak Discharge | 170A for 3 seconds |
| Max Charge Current | 60A (recommended 30A) |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) |
| IP Rating | IP54 — splash and dust resistant |
| Weight | 17.8 lbs (8.07 kg) |

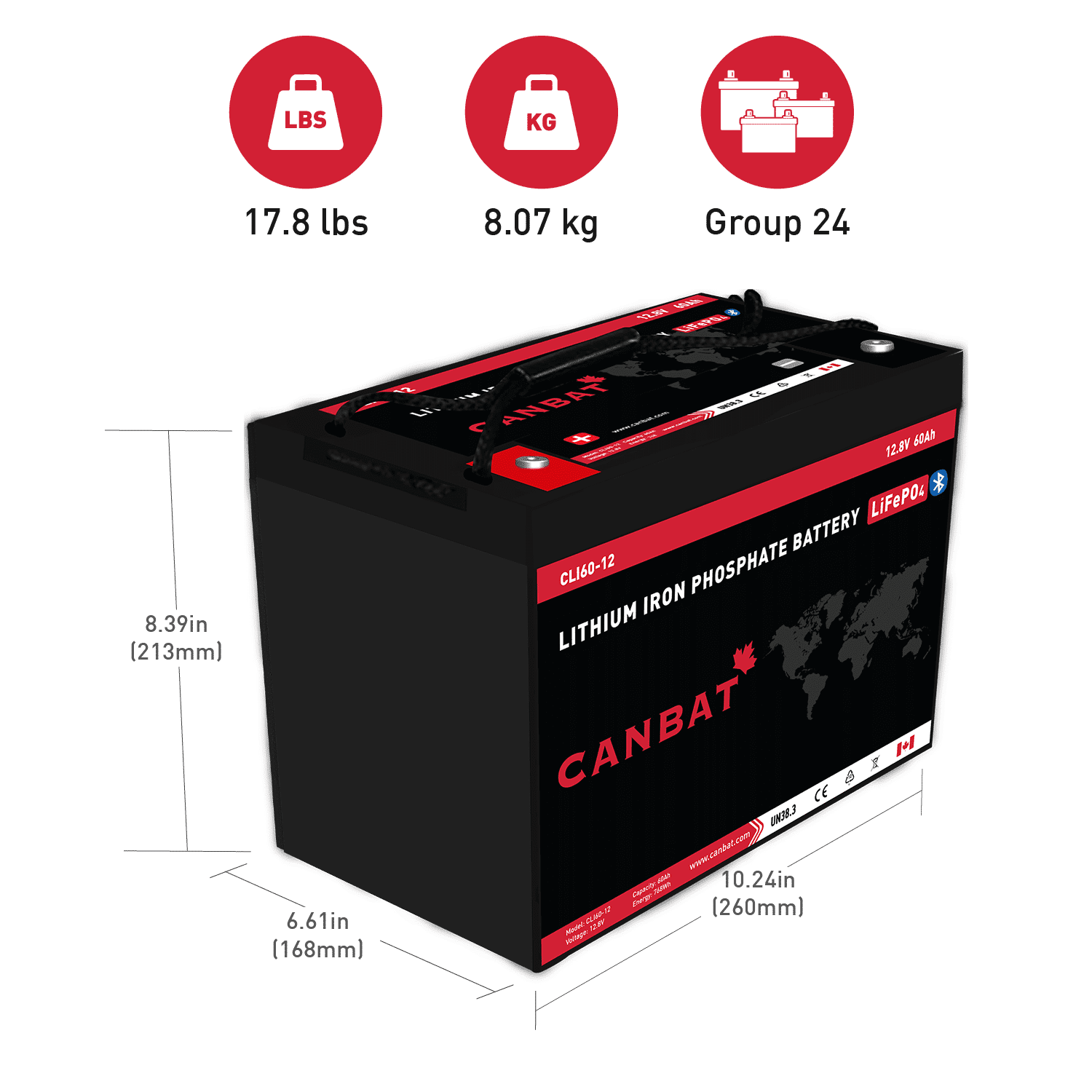

| Dimensions (L x W x H) | 260 x 168 x 213 mm / 10.24 x 6.61 x 8.39 in |
| Terminal Type | M8 / 1.25 — bolts included |
| BCI Group Size | 24 |
| Mounting | Upright or on side |
| Parallel Expansion | Up to 4 units (240Ah / 12V maximum) |
| Series Expansion | Up to 4 units (24V, 36V, or 48V systems) |
| BMS Protection | Over-charge, over-discharge, short circuit, over-current, temperature extremes, cell balancing |
| Bluetooth Monitoring | Optional add-on (Canbat BT app — free for iOS and Android) |
| Storage | Store at 80–100% SoC in a cool, dry environment |
| Certification | UL 1642 certified cells |
| Warranty | 10 years |
| Shipping | Free across Canada and USA — no import duties |

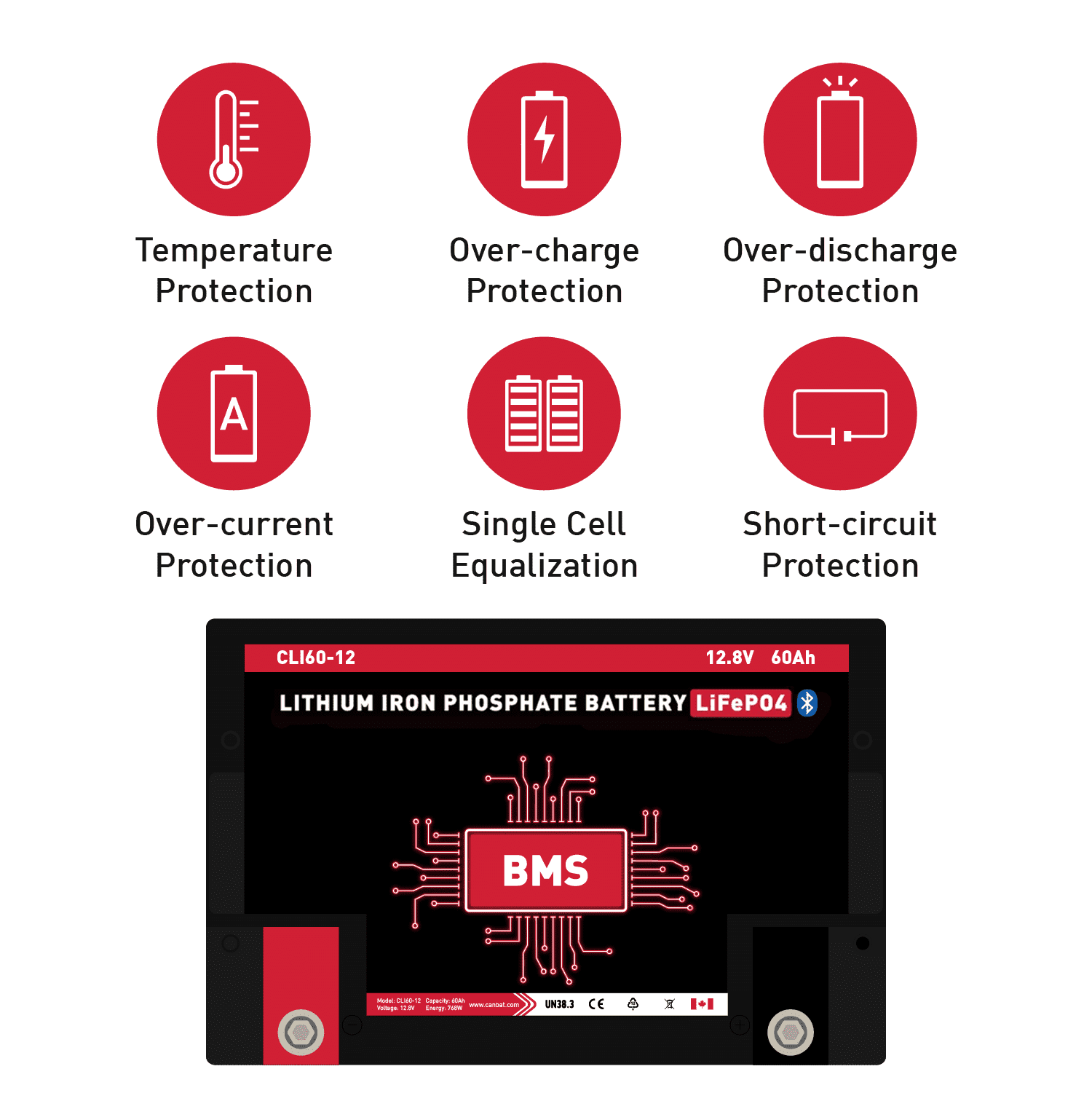

Battery Management System and Bluetooth Monitoring
The CLI60-12’s integrated BMS manages cell-level protection and balancing automatically — no external battery management required.
- Over-discharge protection — prevents cell damage from excessive depth of discharge
- Over-charge protection — disconnects at the correct voltage ceiling
- Short circuit and over-current protection — responds within milliseconds
- High-temperature cutoff — protects cells during charging in hot environments
- Cell balancing — maintains consistency across the prismatic cell groups over thousands of cycles
The optional Bluetooth add-on connects the battery to the free Canbat BT app, available for iOS and Android. Monitor state of charge, voltage, current, and cell temperature in real time.
System Compatibility and Installation
The CLI60-12 is compatible with any charger, solar charge controller, or inverter/charger that supports a LiFePO4 charging profile. When replacing a lead-acid battery, verify that the charging system’s voltage settings are configured for lithium. M8 terminals with bolts are included. The battery installs upright or on its side in any standard Group 24 tray or enclosure.
For system sizing assistance or compatibility questions, Canbat’s Canadian technical team is available by phone, email, and live chat.
Canadian Supply, Support and Warranty
Canbat is a Canadian battery manufacturer. The CLI60-12 ships free to any address in Canada and the USA. Canadian and US buyers pay no import duties and face no cross-border complications on their orders.
The CLI60-12 is backed by a 10-year warranty and supported by a Canadian technical team available by phone, email, and live chat. Warranty claims can be submitted directly with Canbat — with no overseas support queues and no runaround.
